SDO HMI 2014-08-23 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.28 | 190.07 | 49.14 | 197.28 | -4.75 | 32.63 | 60.62 | 260.73 | 0.8811 | 182.1 | 280.7 | |
|
previous
or next observation for the same group /

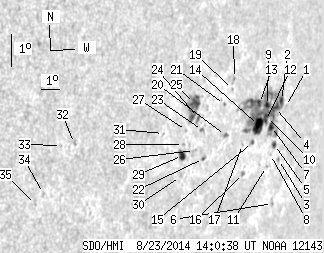

back to the solar disc SDO HMI 2014-08-23 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 1.02 | -4.55 | 35.09 | 63.08 | 261.46 | 0.9006 | -244.0 | -213.5 | |
| 2.07 | 123.99 | 2.31 | 133.39 | -4.33 | 34.79 | 62.78 | 261.64 | 0.8981 | 292.5 | 473.8 | |
| 0.00 | 1.26 | 0.00 | 1.43 | -6.17 | 34.92 | 62.91 | 259.65 | 0.9015 | 179.0 | 106.8 | |
| 4.58 | -2.00 | 5.06 | -2.00 | -4.50 | 34.42 | 62.41 | 261.38 | 0.8955 | 512.4 | 999999 | |
| 1.80 | 3.23 | 2.01 | 3.61 | -5.66 | 34.55 | 62.54 | 260.13 | 0.8981 | 230.6 | 104.2 | |
| 0.00 | 1.35 | 0.00 | 1.54 | -7.52 | 34.83 | 62.82 | 258.16 | 0.9029 | 357.0 | 311.9 | |
| 3.86 | -2.00 | 4.25 | -2.00 | -5.07 | 34.24 | 62.23 | 260.72 | 0.8949 | 441.4 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.30 | -5.95 | 34.34 | 62.33 | 259.77 | 0.8969 | 280.0 | 330.3 | |
| 2.70 | -2.00 | 2.92 | -2.00 | -4.38 | 33.87 | 61.86 | 261.40 | 0.8911 | 799.5 | 999999 | |
| 1.80 | -2.00 | 1.95 | -2.00 | -4.72 | 33.86 | 61.85 | 261.03 | 0.8915 | 725.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 1.00 | -6.30 | 34.14 | 62.13 | 259.35 | 0.8960 | 489.0 | 446.8 | |
| 0.27 | -2.00 | 0.29 | -2.00 | -4.84 | 33.81 | 61.80 | 260.89 | 0.8913 | 658.3 | 999999 | |
| 2.25 | -2.00 | 2.39 | -2.00 | -4.26 | 33.34 | 61.33 | 261.43 | 0.8867 | 736.8 | 999999 | |
| 11.77 | -2.00 | 12.58 | -2.00 | -4.95 | 33.38 | 61.37 | 260.68 | 0.8880 | 747.8 | 999999 | |
| 0.81 | 2.16 | 0.86 | 2.29 | -5.44 | 33.07 | 61.06 | 260.07 | 0.8864 | 547.0 | 460.3 | |
| 0.00 | 1.89 | 0.00 | 1.99 | -6.35 | 32.68 | 60.67 | 258.97 | 0.8846 | 668.0 | 546.2 | |
| 0.00 | 0.81 | 0.00 | 0.84 | -5.43 | 32.44 | 60.43 | 259.94 | 0.8813 | 614.0 | 605.7 | |
| 0.00 | 1.08 | 0.00 | 1.08 | -3.31 | 31.67 | 59.66 | 262.16 | 0.8717 | -85.0 | -60.4 | |
| 0.00 | 0.72 | 0.00 | 0.72 | -3.64 | 31.58 | 59.57 | 261.77 | 0.8715 | -221.0 | -128.4 | |
| 0.72 | 2.34 | 0.72 | 2.35 | -5.03 | 31.34 | 59.33 | 260.15 | 0.8716 | 675.8 | 602.7 | |
| 0.00 | 0.90 | 0.00 | 0.89 | -4.06 | 31.15 | 59.14 | 261.21 | 0.8684 | -175.0 | -138.0 | |
| 0.54 | 1.71 | 0.52 | 1.66 | -5.62 | 30.13 | 58.12 | 259.22 | 0.8623 | 623.0 | 614.5 | |
| 0.00 | 2.25 | 0.00 | 2.16 | -4.73 | 29.94 | 57.93 | 260.19 | 0.8591 | 4.0 | -7.2 | |
| 0.90 | 2.96 | 0.86 | 2.82 | -4.30 | 29.66 | 57.65 | 260.62 | 0.8559 | -334.1 | -236.9 | |
| 8.81 | 24.35 | 8.30 | 22.91 | -3.84 | 29.38 | 57.37 | 261.09 | 0.8526 | -659.8 | -521.7 | |
| 0.00 | 2.25 | 0.00 | 2.14 | -5.31 | 29.56 | 57.55 | 259.44 | 0.8568 | 208.0 | 224.8 | |
| 0.00 | 1.08 | 0.00 | 1.01 | -4.63 | 29.02 | 57.01 | 260.09 | 0.8507 | -496.0 | -401.9 | |
| 0.00 | 1.08 | 0.00 | 1.01 | -5.06 | 28.90 | 56.89 | 259.58 | 0.8505 | -548.0 | -461.2 | |
| 4.40 | 6.56 | 4.12 | 6.14 | -5.39 | 28.90 | 56.88 | 259.18 | 0.8510 | -617.7 | -446.8 | |
| 0.00 | 1.08 | 0.00 | 1.01 | -6.04 | 28.88 | 56.87 | 258.43 | 0.8521 | -445.0 | -355.2 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -4.60 | 27.74 | 55.73 | 259.84 | 0.8390 | -371.0 | -440.3 | |
| 0.00 | 1.62 | 0.00 | 1.31 | -4.44 | 23.15 | 51.14 | 258.86 | 0.7935 | -479.0 | -408.2 | |
| 0.00 | 0.54 | 0.00 | 0.43 | -4.45 | 22.52 | 50.51 | 258.69 | 0.7869 | -580.0 | -560.5 | |
| 0.00 | 1.62 | 0.00 | 1.28 | -5.86 | 21.81 | 49.80 | 256.72 | 0.7829 | -150.0 | -275.2 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -6.17 | 21.47 | 49.46 | 256.23 | 0.7802 | -579.0 | -503.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
