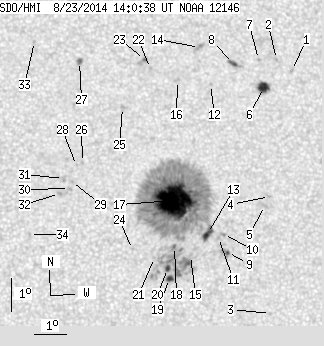

SDO HMI 2014-08-23 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.60 | 578.19 | 49.47 | 292.83 | 8.78 | 343.89 | 11.88 | 279.42 | 0.2084 | -718.2 | -296.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 0.97 | 12.69 | 347.71 | 15.70 | 291.52 | 0.2849 | -899.0 | -775.7 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 13.04 | 347.24 | 15.23 | 293.23 | 0.2798 | -758.0 | -582.0 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 5.34 | 346.71 | 14.70 | 264.47 | 0.2550 | -651.0 | -457.2 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 8.89 | 346.80 | 14.79 | 278.44 | 0.2561 | 829.0 | 632.8 | |
| 0.00 | 3.41 | 0.00 | 1.75 | 8.62 | 346.63 | 14.62 | 277.45 | 0.2528 | 930.0 | 643.7 | |
| 8.45 | 10.60 | 4.34 | 5.45 | 12.20 | 346.77 | 14.76 | 290.89 | 0.2678 | -1083.0 | -732.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 13.06 | 346.67 | 14.66 | 294.03 | 0.2710 | -831.0 | -671.5 | |
| 2.07 | 5.39 | 1.06 | 2.76 | 12.96 | 345.86 | 13.85 | 294.80 | 0.2581 | 900.5 | 607.1 | |
| 0.90 | 5.66 | 0.46 | 2.88 | 7.23 | 345.41 | 13.40 | 271.95 | 0.2311 | -921.8 | -683.3 | |
| 0.00 | 2.25 | 0.00 | 1.14 | 7.78 | 345.30 | 13.29 | 274.35 | 0.2295 | 715.0 | 536.8 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 7.69 | 345.14 | 13.13 | 274.00 | 0.2267 | -659.0 | -436.9 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 12.34 | 345.09 | 13.08 | 293.62 | 0.2423 | -774.0 | -652.9 | |
| 5.66 | 435.58 | 2.87 | 220.52 | 7.82 | 344.80 | 12.79 | 274.66 | 0.2211 | -964.7 | -469.9 | |
| 0.00 | 4.13 | 0.00 | 2.11 | 13.48 | 344.80 | 12.79 | 298.37 | 0.2457 | 1038.0 | 850.0 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 7.17 | 344.25 | 12.24 | 271.70 | 0.2114 | -207.0 | -242.5 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 12.49 | 344.05 | 12.04 | 295.89 | 0.2273 | -828.0 | -743.5 | |
| 73.32 | -13.00 | 37.11 | -13.00 | 8.85 | 343.80 | 11.79 | 279.93 | 0.2059 | -1410.4 | 999999 | |
| 0.45 | 73.67 | 0.23 | 37.26 | 7.46 | 343.76 | 11.75 | 273.13 | 0.2031 | -909.8 | 303.7 | |
| 2.88 | -18.00 | 1.45 | -18.00 | 6.49 | 343.58 | 11.57 | 268.30 | 0.2002 | 988.2 | 999999 | |
| 2.16 | -18.00 | 1.09 | -18.00 | 6.80 | 343.52 | 11.51 | 269.82 | 0.1991 | 988.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 7.14 | 343.13 | 11.12 | 271.56 | 0.1922 | 848.0 | 688.6 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 12.88 | 343.21 | 11.20 | 299.06 | 0.2176 | -722.0 | -572.4 | |
| 0.54 | 4.40 | 0.27 | 2.23 | 13.16 | 343.03 | 11.02 | 300.57 | 0.2172 | -916.2 | -792.2 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 7.40 | 342.45 | 10.44 | 273.01 | 0.1807 | 592.0 | 389.1 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 11.71 | 342.27 | 10.26 | 295.86 | 0.1948 | -916.0 | -689.2 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 10.07 | 340.97 | 8.96 | 289.91 | 0.1638 | 760.0 | 618.7 | |
| 1.17 | 3.59 | 0.59 | 1.81 | 13.14 | 340.98 | 8.97 | 305.67 | 0.1877 | 978.5 | 766.1 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 9.98 | 340.78 | 8.77 | 289.76 | 0.1602 | 847.0 | 764.6 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 9.50 | 340.61 | 8.60 | 287.14 | 0.1550 | 898.0 | 753.4 | |
| 0.00 | 2.16 | 0.00 | 1.08 | 9.29 | 340.54 | 8.53 | 285.92 | 0.1529 | 779.0 | 629.5 | |
| 0.00 | 2.96 | 0.00 | 1.49 | 9.60 | 340.36 | 8.35 | 288.19 | 0.1514 | 975.0 | 834.0 | |
| 0.00 | 1.44 | 0.00 | 0.72 | 9.14 | 340.23 | 8.22 | 285.50 | 0.1471 | 1012.0 | 876.6 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 13.78 | 339.58 | 7.57 | 313.05 | 0.1759 | 760.0 | 632.9 | |
| 0.00 | 1.17 | 0.00 | 0.58 | 7.92 | 339.27 | 7.26 | 277.94 | 0.1270 | 734.0 | 553.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
