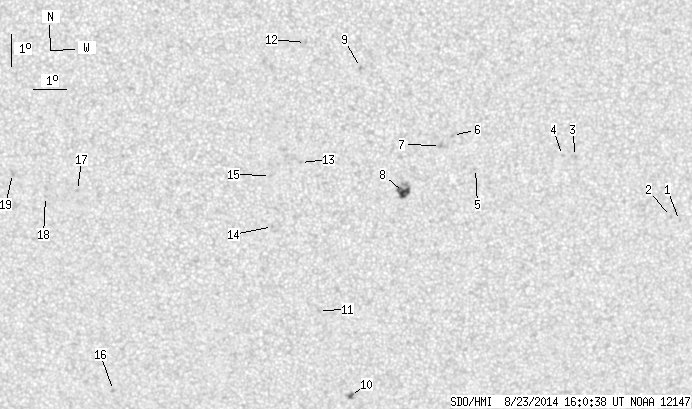

SDO HMI 2014-08-23 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.70 | 41.98 | 5.05 | 21.85 | -10.23 | 332.74 | 1.84 | 186.32 | 0.3081 | 478.0 | 428.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.52 | -10.66 | 342.58 | 11.68 | 213.50 | 0.3619 | 620.0 | 584.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -10.53 | 342.30 | 11.39 | 213.05 | 0.3575 | 516.0 | 608.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -8.56 | 339.28 | 8.37 | 208.37 | 0.3043 | 764.0 | 630.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -8.52 | 338.87 | 7.97 | 207.26 | 0.3006 | 650.0 | 535.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -8.89 | 336.19 | 5.29 | 198.46 | 0.2889 | 455.0 | 424.8 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -7.84 | 335.47 | 4.57 | 197.17 | 0.2685 | 952.0 | 801.0 | |
| 0.00 | 2.51 | 0.00 | 1.29 | -8.15 | 335.11 | 4.20 | 195.56 | 0.2718 | 1026.0 | 850.8 | |
| 8.17 | 16.44 | 4.23 | 8.51 | -9.62 | 333.98 | 3.08 | 190.51 | 0.2916 | 1034.5 | 837.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -5.70 | 332.65 | 1.75 | 187.87 | 0.2224 | 887.0 | 731.1 | |
| 1.53 | 4.22 | 0.82 | 2.28 | -16.16 | 332.39 | 1.48 | 183.61 | 0.3953 | 1007.5 | 763.7 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -13.38 | 331.37 | 0.47 | 181.31 | 0.3495 | -905.0 | -736.6 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -4.92 | 330.98 | 0.07 | 180.34 | 0.2070 | 923.0 | 710.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -8.66 | 330.82 | -0.09 | 179.68 | 0.2708 | 892.0 | 690.2 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -10.69 | 329.95 | -0.95 | 176.92 | 0.3052 | 1061.0 | 888.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -9.07 | 329.90 | -1.01 | 176.41 | 0.2782 | 742.0 | 525.9 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -16.03 | 324.90 | -6.01 | 165.55 | 0.4046 | -730.0 | -587.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -9.59 | 323.95 | -6.96 | 157.21 | 0.3097 | -856.0 | -679.5 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -9.80 | 322.95 | -7.96 | 154.61 | 0.3195 | -787.0 | -669.5 | |
| 0.00 | 2.43 | 0.00 | 1.27 | -9.09 | 321.94 | -8.96 | 150.80 | 0.3167 | -872.0 | -706.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
