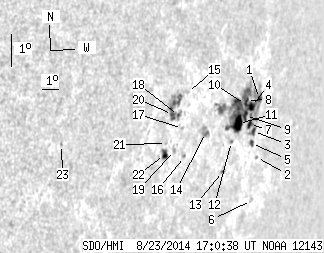

SDO HMI 2014-08-23 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.19 | 167.98 | 41.61 | 185.86 | -4.84 | 32.93 | 62.57 | 261.03 | 0.8967 | 288.7 | 272.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.25 | 115.14 | 2.67 | 131.71 | -4.33 | 34.84 | 64.49 | 261.96 | 0.9106 | 158.5 | 432.9 | |
| 0.00 | 0.99 | 0.00 | 1.19 | -6.17 | 34.98 | 64.63 | 260.00 | 0.9139 | 123.0 | 113.8 | |
| 2.16 | -1.00 | 2.55 | -1.00 | -5.32 | 34.59 | 64.24 | 260.84 | 0.9100 | 23.7 | 999999 | |
| 4.13 | -1.00 | 4.82 | -1.00 | -4.52 | 34.31 | 63.95 | 261.66 | 0.9070 | 519.9 | 999999 | |
| 1.62 | 2.78 | 1.92 | 3.30 | -5.68 | 34.52 | 64.17 | 260.43 | 0.9100 | 237.8 | 129.7 | |
| 0.00 | 1.80 | 0.00 | 2.19 | -7.50 | 34.96 | 64.61 | 258.56 | 0.9155 | 404.0 | 358.8 | |
| 3.05 | -1.00 | 3.57 | -1.00 | -5.07 | 34.26 | 63.91 | 261.05 | 0.9074 | 277.5 | 999999 | |
| 0.27 | -1.00 | 0.31 | -1.00 | -4.29 | 33.92 | 63.57 | 261.83 | 0.9039 | 833.0 | 999999 | |
| 3.95 | -1.00 | 4.55 | -1.00 | -4.75 | 33.93 | 63.57 | 261.33 | 0.9045 | 599.1 | 999999 | |
| 0.27 | -1.00 | 0.31 | -1.00 | -4.41 | 33.87 | 63.52 | 261.69 | 0.9037 | 912.3 | 999999 | |
| 11.05 | -1.00 | 12.53 | -1.00 | -4.95 | 33.48 | 63.13 | 261.02 | 0.9015 | 717.5 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.62 | -5.46 | 33.10 | 62.75 | 260.39 | 0.8994 | 537.0 | 529.2 | |
| 0.54 | 1.62 | 0.60 | 1.80 | -6.35 | 32.67 | 62.32 | 259.33 | 0.8975 | 571.5 | 533.4 | |
| 0.00 | 7.01 | 0.00 | 7.39 | -4.99 | 31.32 | 60.97 | 260.54 | 0.8850 | 471.0 | 498.9 | |
| 0.00 | 1.53 | 0.00 | 1.54 | -3.62 | 30.03 | 59.68 | 261.82 | 0.8723 | -310.0 | -291.8 | |
| 0.00 | 1.35 | 0.00 | 1.37 | -5.60 | 30.12 | 59.77 | 259.60 | 0.8762 | 685.0 | 498.3 | |
| 0.00 | 1.17 | 0.00 | 1.18 | -4.71 | 29.86 | 59.51 | 260.55 | 0.8726 | -130.0 | -59.6 | |
| 0.72 | 24.25 | 0.72 | 23.94 | -4.28 | 29.56 | 59.21 | 260.98 | 0.8694 | -373.0 | -480.9 | |
| 0.00 | 1.62 | 0.00 | 1.61 | -5.35 | 29.47 | 59.12 | 259.75 | 0.8704 | 298.0 | 229.1 | |
| 3.59 | -18.00 | 3.53 | -18.00 | -4.21 | 29.20 | 58.84 | 260.98 | 0.8661 | -594.7 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.79 | -5.08 | 28.96 | 58.60 | 259.94 | 0.8655 | -481.0 | -449.8 | |
| 3.59 | 5.57 | 3.53 | 5.47 | -5.41 | 28.89 | 58.54 | 259.55 | 0.8655 | -570.2 | -461.5 | |
| 0.00 | 0.90 | 0.00 | 0.76 | -4.51 | 23.17 | 52.82 | 259.22 | 0.8108 | -523.0 | -437.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
