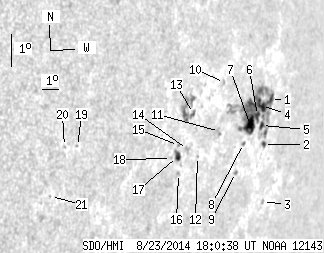

SDO HMI 2014-08-23 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.37 | 162.74 | 40.83 | 183.42 | -4.80 | 32.89 | 63.09 | 261.17 | 0.9004 | 333.7 | 215.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.59 | 113.42 | 4.35 | 132.53 | -4.32 | 34.79 | 64.99 | 262.06 | 0.9141 | 222.4 | 399.3 | |
| 1.53 | 2.78 | 1.85 | 3.37 | -5.68 | 34.54 | 64.74 | 260.54 | 0.9141 | 163.3 | 62.1 | |
| 0.00 | 1.89 | 0.00 | 2.35 | -7.49 | 34.91 | 65.12 | 258.67 | 0.9190 | 538.0 | 374.9 | |
| 6.91 | -1.00 | 8.19 | -1.00 | -4.44 | 34.16 | 64.36 | 261.82 | 0.9099 | 648.5 | 999999 | |
| 2.33 | -1.00 | 2.79 | -1.00 | -5.07 | 34.27 | 64.47 | 261.16 | 0.9114 | 317.3 | 999999 | |
| 3.50 | -1.00 | 4.11 | -1.00 | -4.72 | 33.93 | 64.13 | 261.47 | 0.9085 | 689.7 | 999999 | |
| 12.48 | -1.00 | 14.44 | -1.00 | -4.98 | 33.48 | 63.68 | 261.10 | 0.9056 | 699.6 | 999999 | |
| 0.45 | 1.53 | 0.51 | 1.75 | -5.49 | 33.09 | 63.30 | 260.46 | 0.9035 | 476.4 | 410.3 | |
| 0.00 | 1.71 | 0.00 | 1.94 | -6.35 | 32.73 | 62.93 | 259.46 | 0.9020 | 563.0 | 526.7 | |
| 0.00 | 1.80 | 0.00 | 1.92 | -3.44 | 31.52 | 61.72 | 262.42 | 0.8887 | -34.0 | -15.0 | |
| 0.00 | 2.51 | 0.00 | 2.71 | -4.93 | 31.40 | 61.60 | 260.73 | 0.8899 | 490.0 | 501.2 | |
| 0.00 | 0.90 | 0.00 | 0.93 | -5.57 | 30.11 | 60.31 | 259.76 | 0.8806 | 595.0 | 547.0 | |
| 0.99 | 21.01 | 1.00 | 21.09 | -4.19 | 29.66 | 59.86 | 261.21 | 0.8747 | -309.7 | -496.5 | |
| 0.00 | 2.87 | 0.00 | 2.92 | -5.28 | 29.45 | 59.65 | 259.94 | 0.8747 | 64.0 | 78.9 | |
| 0.00 | 1.17 | 0.00 | 1.16 | -5.09 | 28.88 | 59.08 | 260.02 | 0.8696 | -468.0 | -404.5 | |
| 0.00 | 1.89 | 0.00 | 1.90 | -5.97 | 29.02 | 59.23 | 259.06 | 0.8723 | -453.0 | -347.7 | |
| 3.59 | 5.75 | 3.59 | 5.74 | -5.43 | 28.87 | 59.08 | 259.64 | 0.8701 | -560.9 | -385.1 | |
| 0.00 | 0.99 | 0.00 | 0.98 | -5.46 | 28.52 | 58.72 | 259.53 | 0.8672 | -351.0 | -322.6 | |
| 0.00 | 0.63 | 0.00 | 0.54 | -4.54 | 23.24 | 53.44 | 259.34 | 0.8169 | -584.0 | -471.9 | |
| 0.00 | 1.08 | 0.00 | 0.91 | -4.47 | 22.57 | 52.77 | 259.25 | 0.8101 | -536.0 | -464.8 | |
| 0.00 | 0.81 | 0.00 | 0.68 | -5.97 | 22.04 | 52.24 | 257.30 | 0.8082 | -517.0 | -427.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
