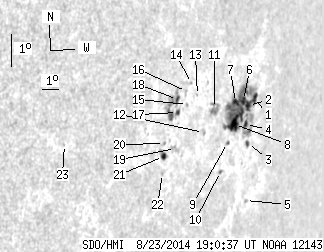

SDO HMI 2014-08-23 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.39 | 161.29 | 40.25 | 185.48 | -4.64 | 32.82 | 63.57 | 261.45 | 0.9039 | 314.3 | 229.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.96 | 103.00 | 3.67 | 123.48 | -4.33 | 34.83 | 65.58 | 262.16 | 0.9182 | 135.1 | 434.6 | |
| 4.22 | -1.00 | 5.14 | -1.00 | -4.50 | 34.41 | 65.17 | 261.90 | 0.9156 | 443.3 | 999999 | |
| 1.35 | 2.60 | 1.67 | 3.22 | -5.69 | 34.57 | 65.32 | 260.65 | 0.9181 | 165.9 | 106.4 | |
| 2.24 | -1.00 | 2.74 | -1.00 | -5.07 | 34.30 | 65.05 | 261.26 | 0.9155 | 270.7 | 999999 | |
| 0.00 | 1.44 | 0.00 | 1.83 | -7.49 | 34.88 | 65.63 | 258.78 | 0.9224 | 457.0 | 384.8 | |
| 3.68 | -1.00 | 4.42 | -1.00 | -4.30 | 34.02 | 64.77 | 262.04 | 0.9126 | 733.1 | 999999 | |
| 3.23 | -1.00 | 3.80 | -1.00 | -4.30 | 33.45 | 64.20 | 261.94 | 0.9085 | 785.3 | 999999 | |
| 10.24 | -1.00 | 12.08 | -1.00 | -4.98 | 33.49 | 64.24 | 261.21 | 0.9097 | 738.0 | 999999 | |
| 0.36 | 1.35 | 0.42 | 1.58 | -5.49 | 33.09 | 63.85 | 260.57 | 0.9075 | 529.0 | 457.5 | |
| 0.45 | 1.62 | 0.52 | 1.88 | -6.35 | 32.79 | 63.54 | 259.58 | 0.9065 | 519.6 | 471.8 | |
| 0.00 | 9.88 | 0.00 | 11.03 | -4.32 | 32.00 | 62.76 | 261.64 | 0.8979 | 532.0 | 226.6 | |
| 0.00 | 2.24 | 0.00 | 2.46 | -4.99 | 31.38 | 62.13 | 260.78 | 0.8941 | 532.0 | 534.4 | |
| 0.00 | 0.63 | 0.00 | 0.67 | -3.79 | 30.82 | 61.57 | 262.00 | 0.8880 | -232.0 | -193.4 | |
| 0.00 | 0.81 | 0.00 | 0.85 | -3.37 | 30.38 | 61.14 | 262.38 | 0.8840 | -460.0 | -459.0 | |
| 0.00 | 1.35 | 0.00 | 1.41 | -4.00 | 30.20 | 60.96 | 261.64 | 0.8834 | -288.0 | -203.1 | |
| 0.00 | 0.72 | 0.00 | 0.75 | -3.59 | 30.09 | 60.85 | 262.08 | 0.8819 | -379.0 | -355.4 | |
| 1.53 | 3.05 | 1.57 | 3.15 | -4.18 | 29.60 | 60.36 | 261.32 | 0.8788 | -325.8 | -239.3 | |
| 1.62 | 20.56 | 1.66 | 20.94 | -3.78 | 29.55 | 60.31 | 261.76 | 0.8778 | -468.8 | -484.8 | |
| 0.00 | 3.77 | 0.00 | 3.92 | -5.30 | 29.64 | 60.39 | 260.08 | 0.8808 | 334.0 | 209.9 | |
| 0.00 | 1.08 | 0.00 | 1.09 | -5.06 | 28.93 | 59.68 | 260.18 | 0.8746 | -447.0 | -403.4 | |
| 2.51 | 5.57 | 2.56 | 5.65 | -5.47 | 28.93 | 59.68 | 259.73 | 0.8753 | -530.0 | -431.2 | |
| 0.00 | 1.08 | 0.00 | 1.10 | -6.00 | 28.96 | 59.71 | 259.14 | 0.8764 | -453.0 | -353.8 | |
| 0.00 | 0.54 | 0.00 | 0.47 | -4.50 | 23.25 | 54.00 | 259.52 | 0.8224 | -482.0 | -408.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
