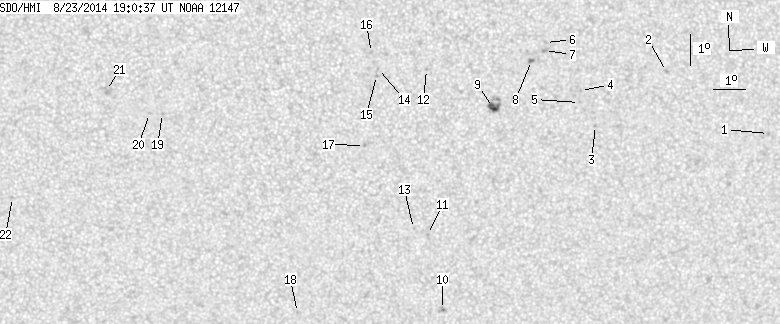

SDO HMI 2014-08-23 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.12 | 47.18 | 2.66 | 24.56 | -10.02 | 331.42 | 2.17 | 187.26 | 0.3099 | 411.7 | 346.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.43 | -10.63 | 342.60 | 13.35 | 217.16 | 0.3774 | 757.0 | 695.0 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -8.59 | 339.33 | 10.08 | 212.99 | 0.3192 | 881.0 | 724.3 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -10.25 | 337.16 | 7.91 | 204.66 | 0.3262 | 712.0 | 561.5 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -9.13 | 336.67 | 7.42 | 204.76 | 0.3059 | 890.0 | 745.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -9.51 | 336.65 | 7.40 | 204.18 | 0.3115 | 795.0 | 638.9 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -7.60 | 335.56 | 6.32 | 203.48 | 0.2751 | 807.0 | 576.1 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -7.85 | 335.54 | 6.29 | 203.03 | 0.2788 | 904.0 | 769.0 | |
| 0.00 | 2.60 | 0.00 | 1.34 | -8.16 | 335.14 | 5.90 | 201.31 | 0.2811 | 1051.0 | 924.2 | |
| 5.12 | 14.10 | 2.66 | 7.31 | -9.63 | 333.99 | 4.74 | 195.94 | 0.2983 | 1070.7 | 796.9 | |
| 0.00 | 2.96 | 0.00 | 1.60 | -16.13 | 332.49 | 3.25 | 187.90 | 0.3978 | 1016.0 | 813.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -13.67 | 331.99 | 2.75 | 187.52 | 0.3573 | -635.0 | -578.8 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -8.41 | 331.92 | 2.67 | 189.86 | 0.2706 | 888.0 | 711.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -13.48 | 331.55 | 2.31 | 186.39 | 0.3532 | -818.0 | -658.3 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -8.37 | 330.45 | 1.20 | 184.48 | 0.2668 | 752.0 | 561.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -8.59 | 330.39 | 1.14 | 184.20 | 0.2704 | 761.0 | 627.1 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -7.87 | 330.23 | 0.99 | 183.81 | 0.2581 | 849.0 | 619.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -10.80 | 330.02 | 0.78 | 182.49 | 0.3072 | 1011.0 | 846.1 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.21 | 327.92 | -1.33 | 176.77 | 0.3962 | -754.0 | -626.2 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -9.81 | 323.80 | -5.44 | 162.04 | 0.3046 | -744.0 | -695.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -9.82 | 323.40 | -5.85 | 160.82 | 0.3068 | -866.0 | -596.7 | |
| 0.00 | 6.73 | 0.00 | 3.50 | -9.11 | 322.08 | -7.16 | 155.99 | 0.3038 | -641.0 | -501.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -12.57 | 319.04 | -10.20 | 152.55 | 0.3767 | -724.0 | -538.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
