SDO HMI 2014-08-23 20:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.44 | 152.42 | 36.62 | 179.95 | -4.66 | 33.01 | 64.32 | 261.56 | 0.9093 | 300.6 | 268.2 | |
|
previous
or next observation for the same group /

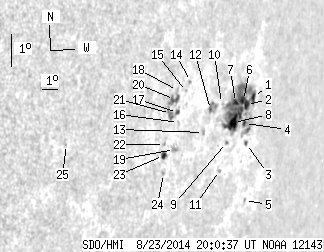

back to the solar disc SDO HMI 2014-08-23 20:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.41 | 105.42 | 4.33 | 128.95 | -4.33 | 34.88 | 66.18 | 262.26 | 0.9223 | 136.4 | 427.1 | |
| 4.13 | -1.00 | 5.15 | -1.00 | -4.49 | 34.37 | 65.68 | 262.00 | 0.9191 | 441.7 | 999999 | |
| 0.63 | 1.80 | 0.80 | 2.27 | -5.72 | 34.62 | 65.93 | 260.73 | 0.9222 | 153.7 | 189.6 | |
| 1.62 | -1.00 | 2.02 | -1.00 | -5.07 | 34.33 | 65.64 | 261.37 | 0.9195 | 263.3 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.52 | -7.52 | 34.94 | 66.25 | 258.87 | 0.9265 | 378.0 | 347.2 | |
| 3.23 | -1.00 | 3.98 | -1.00 | -4.34 | 34.13 | 65.43 | 262.12 | 0.9172 | 759.9 | 999999 | |
| 2.78 | -1.00 | 3.35 | -1.00 | -4.33 | 33.54 | 64.85 | 262.02 | 0.9132 | 850.6 | 999999 | |
| 9.70 | -1.00 | 11.70 | -1.00 | -4.95 | 33.50 | 64.81 | 261.35 | 0.9136 | 727.1 | 999999 | |
| 0.36 | 1.26 | 0.43 | 1.50 | -5.52 | 33.11 | 64.42 | 260.65 | 0.9116 | 570.2 | 489.9 | |
| 0.00 | 0.63 | 0.00 | 0.73 | -4.25 | 32.53 | 63.84 | 261.92 | 0.9059 | 350.0 | 409.7 | |
| 0.00 | 1.71 | 0.00 | 2.02 | -6.35 | 32.79 | 64.10 | 259.69 | 0.9105 | 633.0 | 509.1 | |
| 0.99 | 8.35 | 1.12 | 9.49 | -4.35 | 31.79 | 63.10 | 261.67 | 0.9005 | -63.9 | 218.0 | |
| 0.00 | 1.89 | 0.00 | 2.11 | -5.02 | 31.43 | 62.74 | 260.86 | 0.8987 | 505.0 | 496.5 | |
| 0.00 | 1.17 | 0.00 | 1.25 | -3.33 | 30.34 | 61.65 | 262.52 | 0.8880 | -512.0 | -364.1 | |
| 0.00 | 0.81 | 0.00 | 0.86 | -3.61 | 30.11 | 61.42 | 262.16 | 0.8866 | -405.0 | -304.3 | |
| 0.00 | 1.17 | 0.00 | 1.23 | -4.53 | 29.72 | 61.03 | 261.07 | 0.8847 | -173.0 | -88.3 | |
| 0.99 | 2.16 | 1.04 | 2.26 | -4.21 | 29.61 | 60.92 | 261.40 | 0.8834 | -351.3 | -209.4 | |
| 0.00 | 1.71 | 0.00 | 1.78 | -3.52 | 29.53 | 60.84 | 262.15 | 0.8818 | 0.0 | 8.0 | |
| 0.00 | 3.05 | 0.00 | 3.22 | -5.35 | 29.59 | 60.90 | 260.13 | 0.8850 | 413.0 | 387.9 | |
| 0.00 | 7.63 | 0.00 | 7.92 | -3.78 | 29.37 | 60.68 | 261.83 | 0.8808 | -621.0 | -565.9 | |
| 0.00 | 5.48 | 0.00 | 5.66 | -4.19 | 29.17 | 60.48 | 261.33 | 0.8798 | -619.0 | -539.5 | |
| 0.00 | 1.08 | 0.00 | 1.11 | -5.12 | 28.93 | 60.24 | 260.24 | 0.8793 | -494.0 | -416.5 | |
| 2.60 | 3.86 | 2.70 | 4.00 | -5.46 | 28.93 | 60.23 | 259.86 | 0.8798 | -503.6 | -426.0 | |
| 0.00 | 1.62 | 0.00 | 1.68 | -6.03 | 29.03 | 60.33 | 259.25 | 0.8815 | -453.0 | -358.6 | |
| 0.00 | 0.45 | 0.00 | 0.39 | -4.53 | 23.27 | 54.58 | 259.63 | 0.8280 | -405.0 | -346.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
