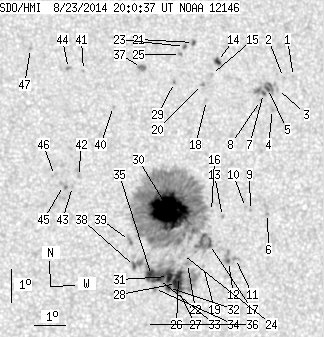

SDO HMI 2014-08-23 20:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.63 | 666.52 | 61.39 | 342.35 | 8.65 | 343.95 | 15.25 | 277.17 | 0.2644 | -416.4 | -342.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 20:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.47 | 12.69 | 348.07 | 19.38 | 288.14 | 0.3421 | -770.0 | -553.7 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 12.68 | 347.74 | 19.05 | 288.34 | 0.3369 | -772.0 | -604.5 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 12.32 | 347.52 | 18.82 | 287.47 | 0.3319 | -801.0 | -646.1 | |
| 0.00 | 2.78 | 0.00 | 1.46 | 11.72 | 347.31 | 18.62 | 285.83 | 0.3263 | -789.0 | -539.7 | |
| 1.44 | 18.14 | 0.75 | 9.50 | 12.36 | 347.19 | 18.50 | 287.84 | 0.3270 | -1171.8 | -836.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 8.57 | 346.95 | 18.26 | 276.20 | 0.3130 | 791.0 | 732.2 | |
| 0.99 | -5.00 | 0.52 | -5.00 | 12.21 | 347.05 | 18.36 | 287.51 | 0.3242 | -1040.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 12.01 | 346.94 | 18.25 | 286.96 | 0.3216 | -671.0 | -571.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 8.68 | 346.41 | 17.72 | 276.68 | 0.3043 | 815.0 | 644.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 8.78 | 346.26 | 17.56 | 277.04 | 0.3018 | 839.0 | 684.1 | |
| 0.00 | 2.96 | 0.00 | 1.54 | 7.25 | 345.86 | 17.17 | 271.93 | 0.2944 | -958.0 | -718.4 | |
| 0.81 | 6.38 | 0.42 | 3.30 | 7.16 | 345.64 | 16.95 | 271.64 | 0.2906 | -1074.6 | -875.1 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 8.53 | 345.51 | 16.81 | 276.40 | 0.2891 | -712.0 | -577.9 | |
| 2.07 | 3.86 | 1.07 | 2.01 | 13.24 | 345.63 | 16.93 | 291.91 | 0.3069 | 1045.9 | 756.9 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 12.85 | 345.40 | 16.71 | 290.92 | 0.3014 | 856.0 | 649.7 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 8.70 | 345.16 | 16.47 | 277.06 | 0.2836 | -292.0 | -307.7 | |
| 1.44 | 460.03 | 0.74 | 236.11 | 7.70 | 345.05 | 16.36 | 273.54 | 0.2809 | -1008.6 | -489.2 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 12.07 | 345.19 | 16.50 | 288.60 | 0.2943 | -679.0 | -375.1 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 7.04 | 344.84 | 16.14 | 271.17 | 0.2773 | 543.0 | 401.6 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 12.56 | 345.09 | 16.40 | 290.29 | 0.2951 | 1005.0 | 757.2 | |
| 0.72 | 1.98 | 0.37 | 1.03 | 13.85 | 344.89 | 16.20 | 294.62 | 0.2992 | 938.2 | 697.6 | |
| 0.00 | 2.78 | 0.00 | 1.43 | 7.15 | 344.33 | 15.64 | 271.55 | 0.2688 | -206.0 | -93.7 | |
| 0.36 | 1.71 | 0.19 | 0.88 | 13.74 | 344.59 | 15.90 | 294.63 | 0.2940 | 924.2 | 740.3 | |
| 0.00 | 4.58 | 0.00 | 2.35 | 7.43 | 344.18 | 15.49 | 272.60 | 0.2663 | -206.0 | -116.4 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 13.50 | 344.44 | 15.75 | 294.05 | 0.2903 | 765.0 | 672.0 | |
| 5.66 | 116.92 | 2.90 | 59.95 | 6.77 | 344.03 | 15.34 | 270.08 | 0.2639 | 758.0 | 200.8 | |
| 2.69 | -26.00 | 1.38 | -26.00 | 6.34 | 344.02 | 15.33 | 268.47 | 0.2640 | 869.5 | 999999 | |
| 7.09 | -26.00 | 3.64 | -26.00 | 6.56 | 343.96 | 15.27 | 269.27 | 0.2629 | 1015.0 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 12.65 | 344.19 | 15.50 | 291.55 | 0.2816 | -922.0 | -772.9 | |
| 75.88 | -17.00 | 38.93 | -17.00 | 8.77 | 343.83 | 15.13 | 277.79 | 0.2616 | -1482.5 | 999999 | |
| 6.11 | -26.00 | 3.13 | -26.00 | 6.78 | 343.72 | 15.03 | 270.09 | 0.2586 | 835.3 | 999999 | |
| 2.42 | -26.00 | 1.24 | -26.00 | 6.44 | 343.71 | 15.02 | 268.79 | 0.2586 | 994.7 | 999999 | |
| 1.26 | -26.00 | 0.64 | -26.00 | 6.70 | 343.40 | 14.71 | 269.73 | 0.2533 | 935.9 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.15 | 6.43 | 343.26 | 14.57 | 268.64 | 0.2512 | 1086.0 | 864.2 | |
| 9.52 | -26.00 | 4.87 | -26.00 | 6.82 | 343.18 | 14.49 | 270.21 | 0.2496 | 784.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 5.35 | 342.95 | 14.26 | 264.18 | 0.2476 | 713.0 | 565.8 | |
| 0.00 | 4.94 | 0.00 | 2.54 | 13.14 | 343.16 | 14.47 | 294.51 | 0.2686 | -1059.0 | -864.9 | |
| 1.17 | -26.00 | 0.60 | -26.00 | 7.11 | 342.66 | 13.96 | 271.36 | 0.2406 | 1051.0 | 999999 | |
| 0.00 | 3.77 | 0.00 | 1.92 | 7.90 | 342.53 | 13.83 | 274.69 | 0.2387 | -1143.0 | -882.2 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 11.98 | 342.20 | 13.51 | 291.57 | 0.2468 | -744.0 | -615.7 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 13.10 | 341.30 | 12.61 | 297.22 | 0.2402 | 761.0 | 616.6 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 9.89 | 340.99 | 12.30 | 284.25 | 0.2176 | 732.0 | 577.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 9.59 | 340.79 | 12.10 | 283.08 | 0.2132 | 669.0 | 545.2 | |
| 0.00 | 2.24 | 0.00 | 1.14 | 13.18 | 340.83 | 12.14 | 298.35 | 0.2336 | 1064.0 | 736.4 | |
| 0.00 | 3.23 | 0.00 | 1.64 | 9.63 | 340.51 | 11.82 | 283.52 | 0.2087 | 831.0 | 791.1 | |
| 0.00 | 2.33 | 0.00 | 1.18 | 9.94 | 340.24 | 11.55 | 285.27 | 0.2054 | 574.0 | 539.4 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 13.82 | 339.65 | 10.96 | 303.25 | 0.2217 | 874.0 | 595.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
