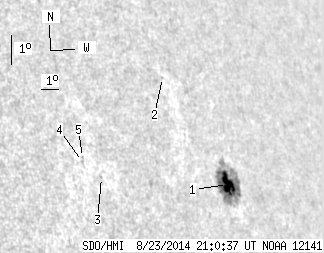

SDO HMI 2014-08-23 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.51 | 78.67 | 17.37 | 77.66 | 16.57 | 28.66 | 60.52 | 285.15 | 0.8662 | -522.1 | -180.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.51 | 75.43 | 17.37 | 74.91 | 16.50 | 28.87 | 60.73 | 285.05 | 0.8681 | -695.5 | -197.4 | |
| 0.00 | 0.81 | 0.00 | 0.76 | 20.10 | 26.78 | 58.64 | 289.35 | 0.8520 | -376.0 | -325.3 | |
| 0.00 | 0.63 | 0.00 | 0.52 | 17.43 | 21.88 | 53.74 | 286.55 | 0.8048 | 465.0 | 390.3 | |
| 0.00 | 1.08 | 0.00 | 0.88 | 18.01 | 21.11 | 52.97 | 287.34 | 0.7976 | 385.0 | 291.6 | |
| 0.00 | 0.72 | 0.00 | 0.59 | 18.13 | 21.16 | 53.02 | 287.49 | 0.7982 | 449.0 | 418.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
