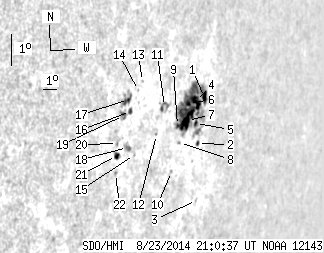

SDO HMI 2014-08-23 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.31 | 145.40 | 43.59 | 176.38 | -4.68 | 33.16 | 65.02 | 261.67 | 0.9144 | 356.7 | 248.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.40 | 106.14 | 5.71 | 132.96 | -4.33 | 34.86 | 66.72 | 262.36 | 0.9258 | 36.0 | 386.9 | |
| 0.99 | 1.80 | 1.28 | 2.33 | -5.72 | 34.60 | 66.46 | 260.83 | 0.9257 | 96.5 | 46.4 | |
| 0.00 | 0.99 | 0.00 | 1.32 | -7.53 | 35.01 | 66.88 | 258.98 | 0.9304 | 437.0 | 328.3 | |
| 8.44 | -1.00 | 10.67 | -1.00 | -4.37 | 34.18 | 66.04 | 262.19 | 0.9214 | 556.8 | 999999 | |
| 1.62 | -1.00 | 2.06 | -1.00 | -5.07 | 34.31 | 66.17 | 261.47 | 0.9230 | 232.3 | 999999 | |
| 1.80 | -1.00 | 2.22 | -1.00 | -4.38 | 33.65 | 65.51 | 262.09 | 0.9178 | 881.7 | 999999 | |
| 13.74 | -1.00 | 17.03 | -1.00 | -4.90 | 33.67 | 65.53 | 261.53 | 0.9186 | 691.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.43 | -5.53 | 33.21 | 65.07 | 260.77 | 0.9161 | 479.0 | 447.8 | |
| 0.27 | -1.00 | 0.33 | -1.00 | -4.98 | 32.95 | 64.82 | 261.31 | 0.9137 | 680.3 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.42 | -6.38 | 32.82 | 64.68 | 259.77 | 0.9145 | 621.0 | 517.6 | |
| 0.00 | 6.65 | 0.00 | 7.68 | -4.27 | 31.91 | 63.78 | 261.88 | 0.9054 | 131.0 | 58.4 | |
| 0.00 | 0.90 | 0.00 | 1.03 | -5.09 | 31.50 | 63.36 | 260.91 | 0.9034 | 536.0 | 447.3 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -3.33 | 30.31 | 62.17 | 262.62 | 0.8921 | -447.0 | -448.7 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -3.58 | 30.07 | 61.93 | 262.30 | 0.8906 | -287.0 | -249.0 | |
| 0.00 | 0.90 | 0.00 | 0.98 | -5.55 | 30.11 | 61.97 | 260.12 | 0.8936 | 524.0 | 520.1 | |
| 1.17 | 2.60 | 1.25 | 2.78 | -4.17 | 29.63 | 61.49 | 261.55 | 0.8879 | -331.3 | -207.6 | |
| 0.81 | 8.80 | 0.86 | 9.30 | -3.79 | 29.45 | 61.31 | 261.95 | 0.8860 | -586.6 | -494.2 | |
| 0.00 | 4.13 | 0.00 | 4.44 | -5.28 | 29.60 | 61.47 | 260.31 | 0.8893 | 365.0 | 253.7 | |
| 0.00 | 3.68 | 0.00 | 3.88 | -4.25 | 29.19 | 61.05 | 261.38 | 0.8846 | -604.0 | -499.4 | |
| 0.00 | 1.26 | 0.00 | 1.32 | -5.09 | 28.94 | 60.80 | 260.39 | 0.8837 | -458.0 | -372.5 | |
| 2.07 | 3.59 | 2.18 | 3.79 | -5.46 | 28.93 | 60.80 | 259.98 | 0.8843 | -503.5 | -339.2 | |
| 0.00 | 1.08 | 0.00 | 1.14 | -6.02 | 28.97 | 60.83 | 259.36 | 0.8855 | -474.0 | -372.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
