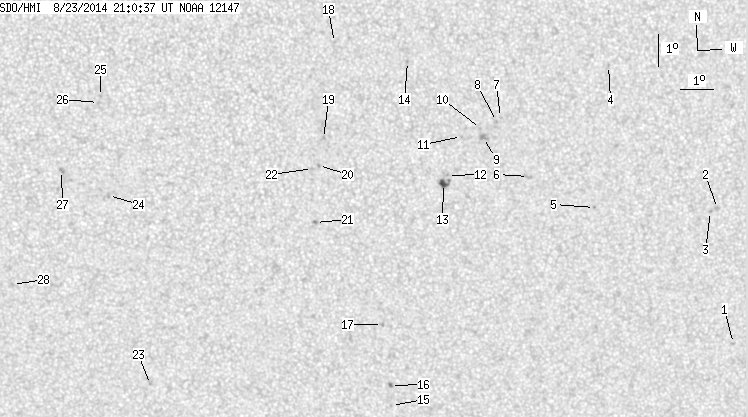

SDO HMI 2014-08-23 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.41 | 49.89 | 1.77 | 26.06 | -9.95 | 332.69 | 4.55 | 194.20 | 0.3170 | 466.5 | 395.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.70 | -15.00 | 343.38 | 15.24 | 214.43 | 0.4509 | 683.0 | 531.3 | |
| 0.00 | 2.78 | 0.00 | 1.50 | -10.63 | 342.60 | 14.46 | 219.39 | 0.3885 | 769.0 | 629.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -10.72 | 342.38 | 14.25 | 218.82 | 0.3874 | 770.0 | 656.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -6.03 | 339.03 | 10.89 | 220.09 | 0.2931 | 797.0 | 605.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -10.48 | 338.71 | 10.57 | 211.16 | 0.3502 | 818.0 | 686.6 | |
| 0.00 | 3.41 | 0.00 | 1.78 | -9.46 | 336.62 | 8.48 | 207.31 | 0.3186 | 537.0 | 594.9 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -7.58 | 335.72 | 7.58 | 207.55 | 0.2840 | 745.0 | 573.7 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -7.71 | 335.60 | 7.46 | 206.97 | 0.2849 | 852.0 | 641.3 | |
| 0.00 | 4.58 | 0.00 | 2.37 | -8.20 | 335.20 | 7.07 | 204.99 | 0.2895 | 1000.0 | 859.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -7.92 | 335.11 | 6.97 | 205.11 | 0.2845 | 890.0 | 749.1 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -8.16 | 334.53 | 6.39 | 202.90 | 0.2842 | 683.0 | 601.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -9.38 | 334.11 | 5.97 | 200.06 | 0.3008 | 1133.0 | 893.9 | |
| 3.41 | 7.27 | 1.77 | 3.78 | -9.63 | 333.99 | 5.86 | 199.41 | 0.3040 | 1065.6 | 840.7 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -5.79 | 332.84 | 4.71 | 200.27 | 0.2366 | 970.0 | 711.7 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -16.79 | 332.51 | 4.37 | 190.26 | 0.4112 | 746.0 | 597.9 | |
| 0.00 | 2.16 | 0.00 | 1.16 | -16.13 | 332.46 | 4.32 | 190.46 | 0.4007 | 996.0 | 792.0 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -14.13 | 332.17 | 4.03 | 190.73 | 0.3681 | -830.0 | -680.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -5.18 | 330.61 | 2.48 | 191.53 | 0.2162 | 696.0 | 460.4 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -8.18 | 330.29 | 2.15 | 188.08 | 0.2654 | 905.0 | 734.6 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -9.03 | 330.14 | 2.00 | 187.12 | 0.2793 | 1015.0 | 790.0 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -10.83 | 330.06 | 1.92 | 186.13 | 0.3092 | 996.0 | 860.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -9.12 | 329.96 | 1.82 | 186.44 | 0.2805 | 743.0 | 588.1 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -16.08 | 324.89 | -3.25 | 172.08 | 0.3971 | -721.0 | -602.0 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -9.98 | 323.68 | -4.46 | 165.29 | 0.3029 | -741.0 | -640.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -6.87 | 323.47 | -4.67 | 161.35 | 0.2537 | -892.0 | -661.1 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -7.06 | 323.41 | -4.73 | 161.35 | 0.2570 | -857.0 | -681.7 | |
| 0.00 | 2.78 | 0.00 | 1.44 | -9.21 | 322.24 | -5.90 | 159.98 | 0.2976 | -1064.0 | -816.3 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -12.86 | 320.63 | -7.51 | 159.38 | 0.3634 | -103.0 | -153.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
