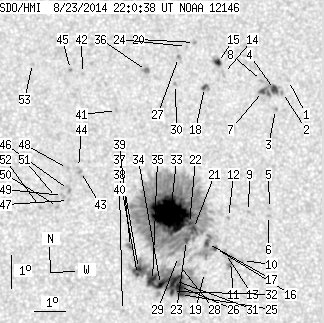

SDO HMI 2014-08-23 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 137.50 | 768.26 | 71.03 | 396.57 | 8.43 | 343.89 | 16.31 | 276.04 | 0.2815 | -399.3 | -262.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.71 | 12.67 | 347.89 | 20.30 | 287.40 | 0.3563 | -643.0 | -540.7 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 12.31 | 347.66 | 20.08 | 286.57 | 0.3514 | -699.0 | -579.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 11.80 | 347.39 | 19.81 | 285.31 | 0.3454 | -751.0 | -674.9 | |
| 3.86 | 14.91 | 2.04 | 7.86 | 12.41 | 347.41 | 19.82 | 287.02 | 0.3478 | -1012.8 | -834.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 8.81 | 347.00 | 19.41 | 276.67 | 0.3321 | 767.0 | 653.5 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 8.60 | 346.95 | 19.37 | 276.04 | 0.3312 | 890.0 | 703.7 | |
| 2.07 | -4.00 | 1.09 | -4.00 | 12.37 | 347.01 | 19.42 | 287.16 | 0.3414 | -1028.3 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 12.70 | 347.00 | 19.42 | 288.12 | 0.3427 | -187.0 | -187.8 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 8.75 | 346.31 | 18.73 | 276.62 | 0.3208 | 813.0 | 625.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 7.27 | 346.05 | 18.46 | 271.99 | 0.3157 | -782.0 | -716.1 | |
| 0.00 | 7.27 | 0.00 | 3.79 | 7.25 | 345.66 | 18.07 | 271.94 | 0.3093 | -977.0 | -878.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 8.59 | 345.66 | 18.07 | 276.27 | 0.3099 | -653.0 | -509.1 | |
| 0.00 | 3.86 | 0.00 | 2.01 | 7.50 | 345.51 | 17.92 | 272.75 | 0.3068 | -887.0 | -706.4 | |
| 0.00 | 2.51 | 0.00 | 1.32 | 12.96 | 345.77 | 18.19 | 289.86 | 0.3248 | 397.0 | 372.8 | |
| 3.14 | 6.83 | 1.65 | 3.57 | 13.31 | 345.60 | 18.02 | 291.02 | 0.3239 | 889.8 | 407.1 | |
| 1.26 | 675.87 | 0.65 | 348.66 | 7.67 | 345.20 | 17.61 | 273.30 | 0.3016 | -909.5 | -292.6 | |
| 2.42 | -16.00 | 1.26 | -16.00 | 7.83 | 344.95 | 17.36 | 273.86 | 0.2976 | -1000.4 | 999999 | |
| 1.62 | 4.58 | 0.84 | 2.39 | 12.56 | 345.12 | 17.54 | 289.21 | 0.3128 | 822.1 | 605.9 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 6.95 | 344.81 | 17.23 | 270.90 | 0.2953 | 564.0 | 381.4 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 13.94 | 344.90 | 17.32 | 293.61 | 0.3166 | 1010.0 | 781.7 | |
| 2.51 | -16.00 | 1.30 | -16.00 | 8.30 | 344.52 | 16.93 | 275.53 | 0.2908 | -896.6 | 999999 | |
| 2.78 | -16.00 | 1.44 | -16.00 | 8.45 | 344.40 | 16.81 | 276.09 | 0.2890 | -957.4 | 999999 | |
| 2.33 | -16.00 | 1.21 | -16.00 | 7.94 | 344.28 | 16.69 | 274.33 | 0.2866 | -1014.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 13.83 | 344.63 | 17.05 | 293.57 | 0.3119 | 740.0 | 627.8 | |
| 1.62 | -16.00 | 0.83 | -16.00 | 6.31 | 344.03 | 16.44 | 268.57 | 0.2826 | 851.8 | 999999 | |
| 5.48 | -16.00 | 2.83 | -16.00 | 6.56 | 344.00 | 16.42 | 269.44 | 0.2820 | 1030.0 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.12 | 13.51 | 344.35 | 16.76 | 292.88 | 0.3057 | 818.0 | 613.7 | |
| 0.00 | 2.60 | 0.00 | 1.34 | 7.26 | 344.00 | 16.41 | 271.92 | 0.2816 | 263.0 | 195.9 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 7.47 | 344.00 | 16.42 | 272.68 | 0.2818 | -347.0 | -258.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 12.69 | 344.19 | 16.60 | 290.47 | 0.2989 | -903.0 | -762.6 | |
| 9.61 | -16.00 | 4.96 | -16.00 | 6.75 | 343.85 | 16.26 | 270.08 | 0.2793 | 808.4 | 999999 | |
| 2.25 | -16.00 | 1.16 | -16.00 | 6.41 | 343.77 | 16.19 | 268.88 | 0.2783 | 985.3 | 999999 | |
| 79.84 | -16.00 | 41.18 | -16.00 | 8.75 | 343.80 | 16.22 | 277.29 | 0.2795 | -1422.3 | 999999 | |
| 4.22 | -16.00 | 2.17 | -16.00 | 6.64 | 343.40 | 15.82 | 269.64 | 0.2719 | 874.3 | 999999 | |
| 8.80 | -16.00 | 4.52 | -16.00 | 6.77 | 343.15 | 15.57 | 270.09 | 0.2677 | 964.7 | 999999 | |
| 0.00 | 3.41 | 0.00 | 1.76 | 13.15 | 343.28 | 15.70 | 292.94 | 0.2873 | -1065.0 | -895.8 | |
| 2.16 | -16.00 | 1.11 | -16.00 | 7.15 | 342.72 | 15.14 | 271.50 | 0.2603 | 786.1 | 999999 | |
| 0.99 | -16.00 | 0.51 | -16.00 | 6.97 | 342.68 | 15.10 | 270.80 | 0.2597 | 1131.1 | 999999 | |
| 0.54 | 3.77 | 0.28 | 1.93 | 7.82 | 342.49 | 14.91 | 274.13 | 0.2567 | -978.5 | -800.4 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 5.89 | 342.18 | 14.59 | 266.48 | 0.2522 | 758.0 | 560.1 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 11.96 | 342.24 | 14.66 | 290.05 | 0.2647 | -810.0 | -619.1 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 13.12 | 341.22 | 13.64 | 295.59 | 0.2557 | 759.0 | 598.3 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 10.14 | 341.01 | 13.42 | 284.27 | 0.2368 | 742.0 | 643.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 10.27 | 340.95 | 13.36 | 284.83 | 0.2363 | 670.0 | 551.1 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 13.25 | 340.85 | 13.26 | 296.65 | 0.2509 | 859.0 | 737.0 | |
| 0.00 | 3.68 | 0.00 | 1.87 | 9.61 | 340.60 | 13.02 | 282.34 | 0.2284 | 738.0 | 743.2 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 9.27 | 340.59 | 13.01 | 280.90 | 0.2272 | 713.0 | 528.8 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 10.25 | 340.60 | 13.01 | 285.08 | 0.2305 | 786.0 | 733.6 | |
| 0.00 | 2.07 | 0.00 | 1.05 | 9.43 | 340.41 | 12.82 | 281.72 | 0.2246 | 779.0 | 694.3 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 9.10 | 340.24 | 12.65 | 280.38 | 0.2209 | 800.0 | 661.0 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 9.38 | 340.22 | 12.63 | 281.62 | 0.2213 | 788.0 | 611.3 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 9.09 | 339.70 | 12.12 | 280.68 | 0.2119 | 961.0 | 784.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 13.47 | 339.64 | 12.06 | 299.57 | 0.2346 | 737.0 | 605.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
