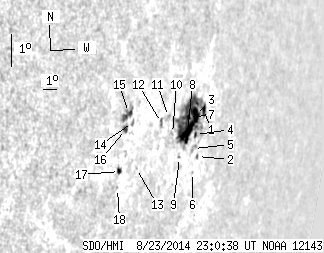

SDO HMI 2014-08-23 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.05 | 128.89 | 44.11 | 163.71 | -4.64 | 33.31 | 66.28 | 261.94 | 0.9229 | 382.2 | 242.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.50 | 95.83 | 4.78 | 125.16 | -4.30 | 34.88 | 67.85 | 262.58 | 0.9329 | 61.8 | 397.4 | |
| 0.45 | 1.62 | 0.61 | 2.20 | -5.73 | 34.70 | 67.67 | 261.03 | 0.9333 | 112.6 | 61.1 | |
| 8.80 | -1.00 | 11.66 | -1.00 | -4.38 | 34.25 | 67.22 | 262.38 | 0.9291 | 546.6 | 999999 | |
| 1.17 | -1.00 | 1.56 | -1.00 | -5.01 | 34.38 | 67.34 | 261.74 | 0.9305 | 65.5 | 999999 | |
| 0.00 | 3.59 | 0.00 | 4.81 | -5.44 | 34.31 | 67.28 | 261.27 | 0.9306 | 379.0 | 229.2 | |
| 0.00 | 0.27 | 0.00 | 0.36 | -6.19 | 34.41 | 67.38 | 260.49 | 0.9320 | 369.0 | 354.3 | |
| 1.71 | -1.00 | 2.21 | -1.00 | -4.41 | 33.71 | 66.67 | 262.26 | 0.9256 | 847.7 | 999999 | |
| 15.36 | -1.00 | 19.95 | -1.00 | -4.88 | 33.72 | 66.68 | 261.76 | 0.9262 | 637.4 | 999999 | |
| 0.00 | 1.08 | 0.00 | 1.38 | -5.59 | 33.25 | 66.22 | 260.91 | 0.9239 | 507.0 | 414.6 | |
| 0.00 | 1.35 | 0.00 | 1.67 | -4.77 | 32.56 | 65.52 | 261.66 | 0.9183 | 491.0 | 459.3 | |
| 0.00 | 1.89 | 0.00 | 2.30 | -4.21 | 32.17 | 65.13 | 262.20 | 0.9150 | 210.0 | 263.5 | |
| 0.00 | 3.05 | 0.00 | 3.65 | -4.34 | 31.68 | 64.65 | 261.97 | 0.9117 | -232.0 | -124.3 | |
| 0.00 | 0.63 | 0.00 | 0.72 | -5.59 | 30.15 | 63.12 | 260.32 | 0.9023 | 506.0 | 477.6 | |
| 0.00 | 2.07 | 0.00 | 2.29 | -4.11 | 29.64 | 62.61 | 261.83 | 0.8965 | -368.0 | -208.0 | |
| 0.00 | 9.79 | 0.00 | 10.72 | -3.77 | 29.33 | 62.30 | 262.15 | 0.8936 | -621.0 | -505.3 | |
| 1.44 | 3.77 | 1.57 | 4.12 | -4.28 | 29.20 | 62.17 | 261.56 | 0.8933 | -492.5 | -422.0 | |
| 1.62 | 3.14 | 1.77 | 3.44 | -5.55 | 29.01 | 61.98 | 260.12 | 0.8937 | -425.7 | -369.6 | |
| 0.00 | 0.81 | 0.00 | 0.89 | -6.07 | 28.98 | 61.95 | 259.54 | 0.8943 | -463.0 | -388.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
