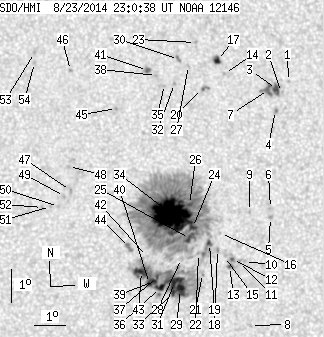

SDO HMI 2014-08-23 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 150.78 | 714.71 | 78.11 | 370.06 | 8.53 | 343.94 | 16.90 | 276.22 | 0.2915 | -411.4 | -286.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-23 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.53 | 12.64 | 347.90 | 20.87 | 286.97 | 0.3650 | -733.0 | -606.2 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 12.32 | 347.64 | 20.61 | 286.25 | 0.3597 | -569.0 | -544.7 | |
| 3.86 | 15.81 | 2.05 | 8.37 | 12.42 | 347.48 | 20.45 | 286.62 | 0.3576 | -1002.6 | -809.4 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 11.78 | 347.40 | 20.36 | 284.91 | 0.3541 | -832.0 | -708.0 | |
| 0.00 | 1.89 | 0.00 | 0.99 | 8.54 | 347.02 | 19.98 | 275.77 | 0.3411 | 898.0 | 721.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 8.82 | 347.03 | 20.00 | 276.57 | 0.3417 | 822.0 | 619.3 | |
| 2.87 | -3.00 | 1.52 | -3.00 | 12.43 | 347.22 | 20.19 | 286.82 | 0.3536 | -1064.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 5.30 | 346.22 | 19.19 | 265.99 | 0.3295 | -752.0 | -634.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 8.75 | 346.34 | 19.31 | 276.51 | 0.3304 | 669.0 | 682.7 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 7.25 | 346.11 | 19.07 | 271.92 | 0.3258 | -742.0 | -613.2 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 7.25 | 345.95 | 18.91 | 271.94 | 0.3231 | -808.0 | -649.1 | |
| 0.72 | 8.89 | 0.38 | 4.65 | 7.32 | 345.72 | 18.69 | 272.15 | 0.3194 | -1065.5 | -814.1 | |
| 0.90 | -12.00 | 0.47 | -12.00 | 7.11 | 345.62 | 18.58 | 271.49 | 0.3177 | -935.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 12.97 | 345.81 | 18.78 | 289.38 | 0.3340 | 661.0 | 515.5 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 7.42 | 345.47 | 18.44 | 272.47 | 0.3152 | -484.0 | -440.9 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 8.13 | 345.37 | 18.34 | 274.72 | 0.3139 | -584.0 | -421.2 | |
| 3.77 | 5.66 | 1.98 | 2.97 | 13.38 | 345.62 | 18.58 | 290.71 | 0.3329 | 795.9 | 537.3 | |
| 0.00 | 1.98 | 0.00 | 1.03 | 7.64 | 345.25 | 18.22 | 273.19 | 0.3117 | -793.0 | -634.9 | |
| 1.62 | 484.72 | 0.84 | 250.82 | 7.84 | 345.01 | 17.97 | 273.82 | 0.3077 | -998.5 | -444.5 | |
| 0.36 | 3.50 | 0.19 | 1.83 | 12.54 | 345.06 | 18.03 | 288.73 | 0.3203 | 758.8 | 688.3 | |
| 0.00 | 2.69 | 0.00 | 1.40 | 6.94 | 344.74 | 17.71 | 270.87 | 0.3033 | 468.0 | 227.1 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 7.55 | 344.64 | 17.60 | 272.89 | 0.3015 | -736.0 | -562.3 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 13.95 | 344.94 | 17.91 | 293.01 | 0.3256 | 780.0 | 641.2 | |
| 3.14 | -19.00 | 1.63 | -19.00 | 8.34 | 344.48 | 17.45 | 275.56 | 0.2994 | -908.3 | 999999 | |
| 4.40 | -19.00 | 2.28 | -19.00 | 8.01 | 344.37 | 17.34 | 274.47 | 0.2973 | -958.7 | 999999 | |
| 2.07 | -19.00 | 1.07 | -19.00 | 9.04 | 344.42 | 17.39 | 277.92 | 0.2993 | -689.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 13.26 | 344.66 | 17.62 | 291.25 | 0.3175 | 616.0 | 469.3 | |
| 0.00 | 2.07 | 0.00 | 1.07 | 7.42 | 344.09 | 17.05 | 272.46 | 0.2924 | -586.0 | -251.3 | |
| 7.99 | 142.98 | 4.14 | 73.88 | 6.48 | 344.02 | 16.99 | 269.23 | 0.2916 | 1003.3 | 238.1 | |
| 0.00 | 2.60 | 0.00 | 1.36 | 13.46 | 344.34 | 17.31 | 292.14 | 0.3138 | 767.0 | 598.8 | |
| 12.48 | -29.00 | 6.46 | -29.00 | 6.70 | 343.84 | 16.80 | 269.96 | 0.2884 | 830.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 12.73 | 344.16 | 17.13 | 290.09 | 0.3072 | -846.0 | -704.0 | |
| 2.51 | -29.00 | 1.30 | -29.00 | 6.40 | 343.79 | 16.76 | 268.91 | 0.2879 | 994.1 | 999999 | |
| 83.44 | -19.00 | 43.16 | -19.00 | 8.76 | 343.83 | 16.79 | 277.14 | 0.2891 | -1371.8 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 12.71 | 343.83 | 16.80 | 290.34 | 0.3020 | -489.0 | -554.6 | |
| 4.58 | -29.00 | 2.36 | -29.00 | 6.56 | 343.39 | 16.35 | 269.42 | 0.2810 | 1003.5 | 999999 | |
| 0.90 | -29.00 | 0.46 | -29.00 | 6.90 | 343.30 | 16.27 | 270.62 | 0.2794 | 710.0 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 12.99 | 343.59 | 16.56 | 291.48 | 0.2998 | -723.0 | -596.0 | |
| 2.96 | -29.00 | 1.53 | -29.00 | 6.75 | 343.17 | 16.14 | 270.08 | 0.2772 | 983.5 | 999999 | |
| 2.87 | -29.00 | 1.48 | -29.00 | 6.69 | 343.04 | 16.01 | 269.86 | 0.2751 | 1064.1 | 999999 | |
| 1.08 | 2.87 | 0.56 | 1.49 | 13.16 | 343.31 | 16.28 | 292.30 | 0.2963 | -1009.2 | -847.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 7.51 | 343.01 | 15.97 | 272.85 | 0.2744 | -833.0 | -578.6 | |
| 8.26 | -29.00 | 4.25 | -29.00 | 7.07 | 342.80 | 15.77 | 271.20 | 0.2709 | 687.0 | 999999 | |
| 0.00 | 4.85 | 0.00 | 2.49 | 7.81 | 342.45 | 15.41 | 273.99 | 0.2651 | -955.0 | -814.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 12.03 | 342.24 | 15.21 | 289.70 | 0.2737 | -864.0 | -647.8 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 13.24 | 340.84 | 13.80 | 295.75 | 0.2590 | 837.0 | 623.9 | |
| 0.00 | 2.34 | 0.00 | 1.19 | 9.59 | 340.65 | 13.62 | 281.81 | 0.2382 | 823.0 | 661.7 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 10.32 | 340.62 | 13.59 | 284.84 | 0.2402 | 912.0 | 756.4 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 9.42 | 340.46 | 13.42 | 281.21 | 0.2345 | 949.0 | 785.7 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 9.12 | 340.25 | 13.22 | 280.07 | 0.2304 | 901.0 | 638.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 9.13 | 340.00 | 12.97 | 280.26 | 0.2262 | 748.0 | 620.3 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 9.10 | 339.75 | 12.72 | 280.32 | 0.2219 | 872.0 | 668.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 13.82 | 339.72 | 12.68 | 299.69 | 0.2465 | 843.0 | 648.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 13.51 | 339.70 | 12.67 | 298.60 | 0.2439 | 831.0 | 594.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
