SDO HMI 2014-08-24 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.18 | 771.42 | 59.46 | 401.79 | 8.38 | 343.85 | 17.92 | 275.53 | 0.3079 | -392.7 | -268.6 | |
|
previous
or next observation for the same group /

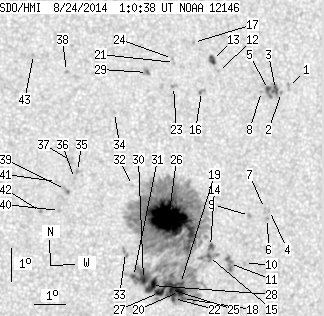

back to the solar disc SDO HMI 2014-08-24 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.05 | 0.00 | 1.64 | 12.53 | 348.03 | 22.10 | 285.96 | 0.3835 | -508.0 | -520.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 12.39 | 347.78 | 21.85 | 285.73 | 0.3792 | -682.0 | -566.5 | |
| 2.78 | 15.09 | 1.49 | 8.06 | 12.49 | 347.59 | 21.66 | 286.09 | 0.3766 | -970.8 | -778.6 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 8.83 | 347.11 | 21.18 | 276.38 | 0.3608 | 693.0 | 709.0 | |
| 1.53 | -3.00 | 0.81 | -3.00 | 12.50 | 347.36 | 21.42 | 286.25 | 0.3730 | -1025.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 8.59 | 347.03 | 21.10 | 275.73 | 0.3593 | 944.0 | 761.9 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 8.90 | 346.95 | 21.02 | 276.60 | 0.3583 | 668.0 | 508.9 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 12.45 | 347.12 | 21.19 | 286.25 | 0.3692 | -850.0 | -689.7 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 8.71 | 346.45 | 20.52 | 276.14 | 0.3500 | 837.0 | 622.0 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 7.26 | 346.21 | 20.28 | 271.98 | 0.3455 | -703.0 | -533.0 | |
| 0.00 | 9.52 | 0.00 | 5.01 | 7.28 | 345.72 | 19.79 | 272.03 | 0.3375 | -1016.0 | -898.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 13.12 | 345.75 | 19.82 | 288.97 | 0.3506 | 686.0 | 556.5 | |
| 2.96 | 5.03 | 1.57 | 2.66 | 13.46 | 345.58 | 19.65 | 290.05 | 0.3496 | 962.1 | 669.4 | |
| 1.53 | 694.41 | 0.80 | 361.38 | 7.82 | 345.13 | 19.20 | 273.67 | 0.3279 | -988.1 | -283.8 | |
| 0.90 | -14.00 | 0.47 | -14.00 | 7.52 | 345.05 | 19.12 | 272.76 | 0.3265 | -1078.2 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.42 | 12.53 | 345.14 | 19.21 | 287.77 | 0.3387 | 870.0 | 660.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 14.04 | 345.00 | 19.07 | 292.12 | 0.3436 | 774.0 | 597.9 | |
| 0.27 | -14.00 | 0.14 | -14.00 | 6.28 | 344.16 | 18.23 | 268.79 | 0.3124 | 787.3 | 999999 | |
| 1.44 | -14.00 | 0.75 | -14.00 | 6.74 | 344.12 | 18.18 | 270.25 | 0.3113 | 708.4 | 999999 | |
| 4.76 | -14.00 | 2.48 | -14.00 | 6.50 | 344.07 | 18.14 | 269.47 | 0.3107 | 1023.2 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 13.45 | 344.33 | 18.39 | 291.08 | 0.3303 | 603.0 | 521.0 | |
| 0.27 | -14.00 | 0.14 | -14.00 | 6.30 | 343.87 | 17.94 | 268.77 | 0.3076 | 937.0 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.22 | 12.72 | 344.24 | 18.30 | 289.02 | 0.3254 | -899.0 | -675.3 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 13.58 | 344.27 | 18.34 | 291.49 | 0.3301 | 726.0 | 539.3 | |
| 1.35 | -14.00 | 0.70 | -14.00 | 6.57 | 343.79 | 17.86 | 269.66 | 0.3059 | 1203.1 | 999999 | |
| 76.18 | -14.00 | 39.64 | -14.00 | 8.72 | 343.82 | 17.89 | 276.72 | 0.3070 | -1345.8 | 999999 | |
| 5.30 | -14.00 | 2.75 | -14.00 | 6.49 | 343.43 | 17.50 | 269.35 | 0.3001 | 891.1 | 999999 | |
| 8.89 | -14.00 | 4.61 | -14.00 | 6.72 | 343.19 | 17.25 | 270.06 | 0.2959 | 877.9 | 999999 | |
| 0.72 | 3.77 | 0.37 | 1.97 | 13.18 | 343.42 | 17.49 | 291.12 | 0.3150 | -918.0 | -771.7 | |
| 4.40 | -14.00 | 2.28 | -14.00 | 6.91 | 342.94 | 17.00 | 270.69 | 0.2916 | 627.2 | 999999 | |
| 0.90 | -14.00 | 0.46 | -14.00 | 7.01 | 342.62 | 16.69 | 271.03 | 0.2863 | 927.0 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 9.77 | 342.72 | 16.78 | 280.60 | 0.2908 | -746.0 | -578.5 | |
| 0.00 | 4.04 | 0.00 | 2.09 | 7.75 | 342.40 | 16.46 | 273.63 | 0.2826 | -862.0 | -675.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 12.00 | 342.27 | 16.33 | 288.47 | 0.2913 | -715.0 | -605.6 | |
| 0.00 | 2.25 | 0.00 | 1.15 | 10.25 | 340.98 | 15.05 | 283.36 | 0.2638 | 773.0 | 619.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 10.04 | 340.87 | 14.94 | 282.65 | 0.2614 | 703.0 | 579.8 | |
| 0.00 | 4.67 | 0.00 | 2.40 | 10.59 | 340.77 | 14.84 | 284.79 | 0.2616 | 603.0 | 590.5 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 13.30 | 340.80 | 14.87 | 294.46 | 0.2756 | 766.0 | 549.4 | |
| 0.00 | 3.32 | 0.00 | 1.70 | 9.72 | 340.57 | 14.64 | 281.61 | 0.2555 | 912.0 | 748.5 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 9.09 | 340.35 | 14.42 | 279.25 | 0.2503 | 806.0 | 647.0 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 9.97 | 340.30 | 14.37 | 282.77 | 0.2517 | 709.0 | 538.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 9.08 | 339.75 | 13.82 | 279.52 | 0.2402 | 933.0 | 785.2 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 13.85 | 339.77 | 13.84 | 297.82 | 0.2638 | 646.0 | 510.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
