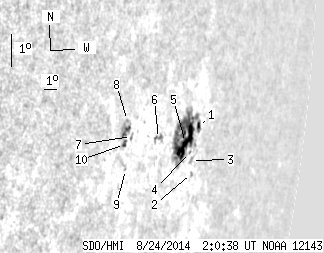

SDO HMI 2014-08-24 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.60 | 114.47 | 37.26 | 156.07 | -4.65 | 33.36 | 67.98 | 262.23 | 0.9337 | 386.9 | 260.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-24 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.16 | 86.88 | 3.18 | 121.78 | -4.34 | 34.97 | 69.59 | 262.83 | 0.9433 | 11.6 | 415.2 | |
| 0.00 | 1.44 | 0.00 | 2.12 | -5.76 | 34.69 | 69.31 | 261.29 | 0.9431 | 151.0 | 102.3 | |
| 0.00 | 3.14 | 0.00 | 4.58 | -5.35 | 34.59 | 69.20 | 261.71 | 0.9421 | 178.0 | 148.9 | |
| 0.00 | 0.81 | 0.00 | 1.17 | -5.07 | 34.35 | 68.96 | 261.95 | 0.9404 | 84.0 | 97.2 | |
| 23.09 | -1.00 | 32.52 | -1.00 | -4.72 | 33.93 | 68.54 | 262.26 | 0.9376 | 539.1 | 999999 | |
| 0.00 | 5.93 | 0.00 | 7.57 | -4.34 | 31.69 | 66.30 | 262.27 | 0.9231 | 375.0 | 177.6 | |
| 0.00 | 1.98 | 0.00 | 2.33 | -4.04 | 29.65 | 64.27 | 262.22 | 0.9087 | -229.0 | -153.2 | |
| 0.00 | 1.17 | 0.00 | 1.35 | -3.51 | 29.30 | 63.92 | 262.73 | 0.9055 | -241.0 | -206.8 | |
| 0.00 | 0.90 | 0.00 | 1.05 | -5.03 | 29.39 | 64.01 | 261.09 | 0.9081 | -25.0 | -64.8 | |
| 1.35 | 12.22 | 1.56 | 14.12 | -4.24 | 29.19 | 63.81 | 261.92 | 0.9056 | -470.6 | -514.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
