SDO HMI 2014-08-24 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 145.56 | 774.51 | 76.05 | 404.79 | 8.22 | 343.99 | 18.61 | 274.88 | 0.3192 | -344.2 | -302.3 | |
|
previous
or next observation for the same group /

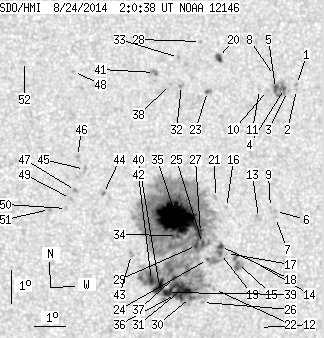

back to the solar disc SDO HMI 2014-08-24 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.68 | 12.60 | 348.09 | 22.71 | 285.80 | 0.3933 | -740.0 | -603.1 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 12.45 | 348.08 | 22.70 | 285.42 | 0.3925 | -606.0 | -454.1 | |
| 0.00 | 1.89 | 0.00 | 1.01 | 12.40 | 347.77 | 22.39 | 285.46 | 0.3876 | -558.0 | -604.8 | |
| 1.08 | 15.72 | 0.58 | 8.43 | 12.50 | 347.68 | 22.30 | 285.75 | 0.3865 | -918.0 | -801.2 | |
| 2.34 | -4.00 | 1.25 | -4.00 | 12.51 | 347.38 | 22.00 | 285.95 | 0.3819 | -1012.3 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 8.78 | 347.09 | 21.71 | 276.16 | 0.3693 | 833.0 | 655.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 8.60 | 347.08 | 21.70 | 275.66 | 0.3690 | 811.0 | 628.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 12.91 | 347.38 | 22.00 | 286.96 | 0.3834 | -640.0 | -552.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 8.91 | 346.94 | 21.55 | 276.53 | 0.3669 | 692.0 | 527.1 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 12.46 | 347.11 | 21.73 | 285.97 | 0.3776 | -648.0 | -615.6 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 12.50 | 346.84 | 21.46 | 286.23 | 0.3736 | -693.0 | -510.9 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 5.29 | 346.40 | 21.01 | 266.49 | 0.3593 | -595.0 | -562.0 | |
| 0.00 | 2.07 | 0.00 | 1.10 | 8.62 | 346.52 | 21.14 | 275.81 | 0.3600 | 729.0 | 584.5 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 7.33 | 346.22 | 20.84 | 272.20 | 0.3546 | -694.0 | -517.0 | |
| 0.00 | 11.68 | 0.00 | 6.17 | 7.26 | 345.76 | 20.38 | 271.98 | 0.3471 | -1110.0 | -876.0 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 8.97 | 345.50 | 20.11 | 276.98 | 0.3437 | 130.0 | 113.5 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 7.58 | 345.42 | 20.04 | 272.91 | 0.3415 | -708.0 | -550.6 | |
| 1.98 | 21.47 | 1.04 | 11.29 | 7.80 | 345.24 | 19.85 | 273.56 | 0.3386 | -978.5 | -540.0 | |
| 1.26 | -18.00 | 0.66 | -18.00 | 7.59 | 345.22 | 19.84 | 272.93 | 0.3384 | -991.3 | 999999 | |
| 3.05 | 5.12 | 1.62 | 2.72 | 13.54 | 345.57 | 20.19 | 289.82 | 0.3582 | 894.4 | 622.9 | |
| 0.00 | 1.89 | 0.00 | 0.99 | 9.29 | 345.15 | 19.77 | 277.99 | 0.3386 | -504.0 | -446.5 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 6.51 | 344.98 | 19.60 | 269.69 | 0.3347 | 674.0 | 496.3 | |
| 0.54 | 3.14 | 0.28 | 1.66 | 12.52 | 345.12 | 19.74 | 287.34 | 0.3469 | 892.2 | 672.2 | |
| 0.63 | -18.00 | 0.33 | -18.00 | 7.42 | 344.79 | 19.41 | 272.45 | 0.3313 | -703.1 | 999999 | |
| 2.16 | 672.39 | 1.13 | 350.95 | 7.91 | 344.66 | 19.27 | 273.95 | 0.3291 | -913.0 | -307.7 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 6.13 | 344.58 | 19.19 | 268.48 | 0.3284 | 668.0 | 534.7 | |
| 3.50 | -25.00 | 1.84 | -25.00 | 8.25 | 344.61 | 19.23 | 274.98 | 0.3285 | -945.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 14.05 | 345.02 | 19.64 | 291.65 | 0.3523 | 741.0 | 592.4 | |
| 2.52 | -25.00 | 1.32 | -25.00 | 7.86 | 344.46 | 19.08 | 273.80 | 0.3259 | -889.5 | 999999 | |
| 2.07 | -25.00 | 1.08 | -25.00 | 6.30 | 344.20 | 18.81 | 268.93 | 0.3220 | 748.0 | 999999 | |
| 19.41 | -25.00 | 10.13 | -25.00 | 6.55 | 343.92 | 18.53 | 269.68 | 0.3172 | 927.6 | 999999 | |
| 0.00 | 2.61 | 0.00 | 1.37 | 12.73 | 344.28 | 18.90 | 288.57 | 0.3347 | -807.0 | -659.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 13.59 | 344.25 | 18.87 | 291.05 | 0.3383 | 815.0 | 669.2 | |
| 0.27 | -25.00 | 0.14 | -25.00 | 8.19 | 343.86 | 18.48 | 274.88 | 0.3162 | -1020.0 | 999999 | |
| 79.24 | -25.00 | 41.37 | -25.00 | 8.74 | 343.86 | 18.47 | 276.61 | 0.3167 | -1340.1 | 999999 | |
| 3.41 | -25.00 | 1.78 | -25.00 | 6.41 | 343.72 | 18.33 | 269.19 | 0.3140 | 876.1 | 999999 | |
| 1.71 | -25.00 | 0.89 | -25.00 | 6.92 | 343.71 | 18.32 | 270.84 | 0.3135 | 270.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 12.78 | 343.92 | 18.54 | 288.98 | 0.3294 | -841.0 | -753.5 | |
| 6.65 | -25.00 | 3.46 | -25.00 | 6.48 | 343.46 | 18.08 | 269.38 | 0.3097 | 1007.5 | 999999 | |
| 8.80 | -25.00 | 4.58 | -25.00 | 6.67 | 343.21 | 17.83 | 269.97 | 0.3055 | 889.1 | 999999 | |
| 0.00 | 3.41 | 0.00 | 1.79 | 13.16 | 343.43 | 18.05 | 290.54 | 0.3235 | -942.0 | -791.0 | |
| 4.94 | -25.00 | 2.57 | -25.00 | 6.86 | 342.97 | 17.58 | 270.58 | 0.3013 | 581.6 | 999999 | |
| 0.00 | 2.61 | 0.00 | 1.35 | 7.67 | 342.36 | 16.98 | 273.32 | 0.2911 | -657.0 | -614.7 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 9.55 | 341.55 | 16.17 | 280.13 | 0.2802 | 801.0 | 590.1 | |
| 0.00 | 2.79 | 0.00 | 1.43 | 10.30 | 340.98 | 15.60 | 283.14 | 0.2729 | 722.0 | 625.8 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 10.70 | 340.78 | 15.39 | 284.74 | 0.2709 | 845.0 | 747.3 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 9.67 | 340.66 | 15.28 | 281.04 | 0.2658 | 947.0 | 818.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 13.29 | 340.80 | 15.42 | 293.70 | 0.2839 | 805.0 | 647.2 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 9.43 | 340.49 | 15.11 | 280.24 | 0.2624 | 868.0 | 733.6 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 9.13 | 340.35 | 14.97 | 279.17 | 0.2594 | 753.0 | 631.4 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 9.12 | 339.81 | 14.43 | 279.38 | 0.2504 | 1006.0 | 848.4 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 13.64 | 339.25 | 13.86 | 297.05 | 0.2626 | 640.0 | 524.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
