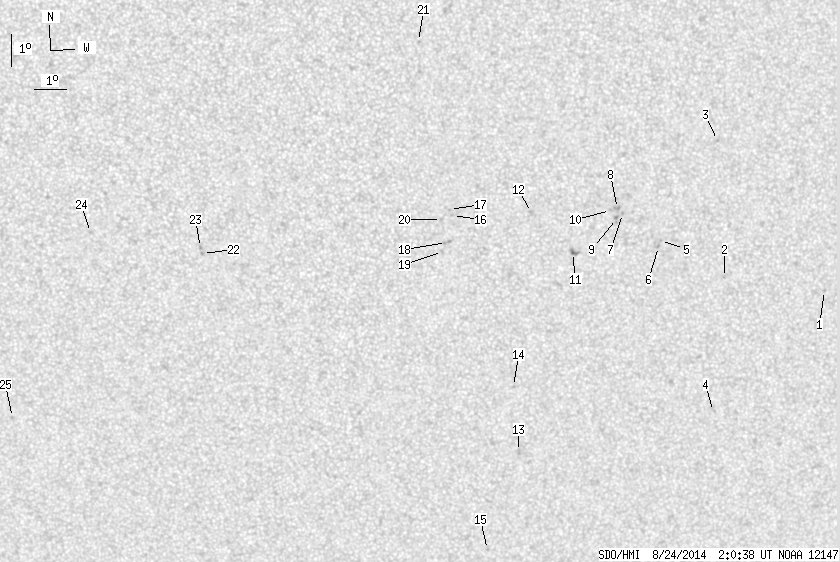

SDO HMI 2014-08-24 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 39.85 | 0.19 | 20.91 | -9.96 | 331.87 | 6.49 | 200.44 | 0.3252 | 461.0 | 455.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-24 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.68 | -11.07 | 341.99 | 16.61 | 222.57 | 0.4164 | 662.0 | 447.1 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -10.55 | 338.77 | 13.39 | 217.34 | 0.3770 | 684.0 | 553.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -6.23 | 338.41 | 13.02 | 224.75 | 0.3195 | 700.0 | 635.3 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -14.86 | 338.65 | 13.26 | 210.98 | 0.4326 | 647.0 | 602.8 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -9.32 | 336.71 | 11.33 | 214.80 | 0.3410 | 697.0 | 538.3 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -9.51 | 336.65 | 11.27 | 214.35 | 0.3430 | 758.0 | 644.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -8.44 | 335.50 | 10.11 | 213.29 | 0.3178 | 777.0 | 704.6 | |
| 0.00 | 2.70 | 0.00 | 1.41 | -8.28 | 335.34 | 9.95 | 213.16 | 0.3141 | 1021.0 | 895.3 | |
| 0.00 | 2.43 | 0.00 | 1.27 | -8.59 | 335.31 | 9.93 | 212.55 | 0.3183 | 839.0 | 729.4 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -8.33 | 335.12 | 9.74 | 212.48 | 0.3130 | 841.0 | 706.3 | |
| 0.36 | 4.58 | 0.19 | 2.40 | -9.63 | 333.97 | 8.59 | 207.31 | 0.3223 | 953.2 | 828.5 | |
| 0.00 | 2.70 | 0.00 | 1.40 | -8.35 | 332.67 | 7.29 | 205.45 | 0.2935 | 829.0 | 592.3 | |
| 0.00 | 2.52 | 0.00 | 1.37 | -16.02 | 332.47 | 7.09 | 196.89 | 0.4097 | 454.0 | 386.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -13.89 | 332.24 | 6.86 | 198.04 | 0.3760 | -661.0 | -597.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -19.28 | 331.59 | 6.21 | 193.00 | 0.4557 | 694.0 | 527.8 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -8.41 | 330.24 | 4.86 | 197.52 | 0.2796 | 819.0 | 585.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -8.22 | 330.15 | 4.76 | 197.40 | 0.2760 | 697.0 | 678.2 | |
| 0.00 | 3.05 | 0.00 | 1.58 | -9.26 | 330.07 | 4.68 | 196.07 | 0.2924 | 847.0 | 744.7 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -9.54 | 329.95 | 4.56 | 195.42 | 0.2964 | 776.0 | 633.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -8.53 | 329.90 | 4.52 | 196.25 | 0.2799 | 948.0 | 600.5 | |
| 0.00 | 1.26 | 0.00 | 0.63 | -2.99 | 329.17 | 3.78 | 200.81 | 0.1863 | 678.0 | 619.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -9.58 | 322.56 | -2.82 | 170.36 | 0.2907 | -827.0 | -639.5 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -9.39 | 322.50 | -2.88 | 170.04 | 0.2878 | -958.0 | -787.2 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -8.95 | 319.12 | -6.26 | 158.55 | 0.2959 | -848.0 | -627.8 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -14.92 | 316.51 | -8.88 | 158.16 | 0.4025 | -595.0 | -419.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
