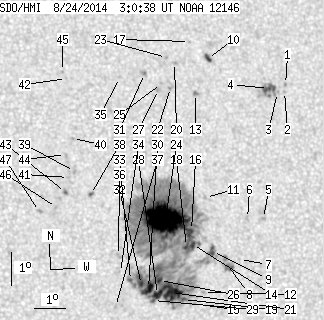

SDO HMI 2014-08-24 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.06 | 774.89 | 72.36 | 406.17 | 8.21 | 343.96 | 19.12 | 274.78 | 0.3277 | -312.3 | -299.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-24 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.58 | 12.63 | 348.12 | 23.29 | 285.59 | 0.4022 | -729.0 | -602.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 12.42 | 348.07 | 23.24 | 285.10 | 0.4007 | -604.0 | -354.0 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 12.40 | 347.83 | 23.00 | 285.17 | 0.3970 | -488.0 | -499.8 | |
| 5.30 | 18.60 | 2.85 | 10.01 | 12.54 | 347.54 | 22.71 | 285.65 | 0.3930 | -969.3 | -759.7 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 8.61 | 347.06 | 22.23 | 275.62 | 0.3775 | 797.0 | 607.2 | |
| 0.00 | 2.43 | 0.00 | 1.29 | 8.63 | 346.54 | 21.70 | 275.75 | 0.3690 | 812.0 | 624.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 7.40 | 346.20 | 21.37 | 272.40 | 0.3632 | -678.0 | -459.9 | |
| 0.00 | 11.68 | 0.00 | 6.19 | 7.27 | 345.80 | 20.97 | 272.01 | 0.3567 | -1157.0 | -841.0 | |
| 2.79 | 690.98 | 1.47 | 361.85 | 7.68 | 345.33 | 20.50 | 273.19 | 0.3491 | -1049.3 | -317.8 | |
| 2.43 | 4.13 | 1.29 | 2.20 | 13.54 | 345.59 | 20.76 | 289.42 | 0.3669 | 860.5 | 673.2 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 9.33 | 345.20 | 20.36 | 277.95 | 0.3482 | -603.0 | -427.4 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 6.45 | 344.98 | 20.15 | 269.61 | 0.3437 | 628.0 | 526.6 | |
| 0.00 | 2.34 | 0.00 | 1.24 | 12.50 | 345.10 | 20.27 | 286.93 | 0.3550 | 932.0 | 688.3 | |
| 2.70 | -9.00 | 1.42 | -9.00 | 7.92 | 344.69 | 19.86 | 273.92 | 0.3387 | -866.8 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.23 | 6.14 | 344.61 | 19.78 | 268.62 | 0.3380 | 625.0 | 516.6 | |
| 0.27 | -9.00 | 0.14 | -9.00 | 8.35 | 344.68 | 19.85 | 275.19 | 0.3388 | -798.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 14.09 | 345.04 | 20.21 | 291.28 | 0.3611 | 759.0 | 611.2 | |
| 1.62 | -9.00 | 0.85 | -9.00 | 7.87 | 344.50 | 19.66 | 273.78 | 0.3355 | -925.7 | 999999 | |
| 2.07 | -9.00 | 1.09 | -9.00 | 6.27 | 344.33 | 19.49 | 268.96 | 0.3332 | 700.1 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 13.47 | 344.49 | 19.65 | 290.05 | 0.3497 | 695.0 | 559.4 | |
| 20.85 | -9.00 | 10.92 | -9.00 | 6.50 | 343.95 | 19.11 | 269.60 | 0.3267 | 928.4 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 12.71 | 344.29 | 19.46 | 288.09 | 0.3433 | -719.0 | -696.0 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 13.63 | 344.24 | 19.40 | 290.71 | 0.3466 | 775.0 | 582.1 | |
| 77.19 | -9.00 | 40.42 | -9.00 | 8.72 | 343.86 | 19.02 | 276.43 | 0.3256 | -1354.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 12.85 | 344.01 | 19.17 | 288.68 | 0.3395 | -892.0 | -706.4 | |
| 2.16 | -9.00 | 1.13 | -9.00 | 6.88 | 343.57 | 18.74 | 270.73 | 0.3204 | 504.5 | 999999 | |
| 0.00 | 2.88 | 0.00 | 1.51 | 12.67 | 343.89 | 19.06 | 288.26 | 0.3369 | -881.0 | -652.8 | |
| 6.38 | -9.00 | 3.33 | -9.00 | 6.46 | 343.49 | 18.66 | 269.40 | 0.3193 | 1043.1 | 999999 | |
| 1.35 | -9.00 | 0.70 | -9.00 | 6.28 | 343.36 | 18.52 | 268.82 | 0.3172 | 914.0 | 999999 | |
| 8.36 | -9.00 | 4.36 | -9.00 | 6.65 | 343.21 | 18.38 | 269.97 | 0.3145 | 995.4 | 999999 | |
| 0.00 | 2.79 | 0.00 | 1.46 | 13.17 | 343.47 | 18.64 | 290.05 | 0.3327 | -922.0 | -768.2 | |
| 2.61 | -9.00 | 1.36 | -9.00 | 6.78 | 342.99 | 18.16 | 270.36 | 0.3108 | 740.4 | 999999 | |
| 0.81 | -9.00 | 0.42 | -9.00 | 6.91 | 342.64 | 17.81 | 270.77 | 0.3050 | 866.0 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 7.17 | 342.33 | 17.50 | 271.60 | 0.2998 | -43.0 | 71.4 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 13.08 | 342.65 | 17.81 | 290.51 | 0.3195 | -732.0 | -516.2 | |
| 0.00 | 2.97 | 0.00 | 1.54 | 7.68 | 342.29 | 17.46 | 273.33 | 0.2991 | -674.0 | -479.9 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 6.14 | 342.13 | 17.30 | 268.13 | 0.2971 | 708.0 | 562.1 | |
| 0.63 | 2.34 | 0.33 | 1.21 | 9.57 | 341.48 | 16.65 | 279.96 | 0.2881 | 749.0 | 574.5 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 10.28 | 341.01 | 16.17 | 282.70 | 0.2822 | 773.0 | 653.5 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 11.28 | 341.00 | 16.17 | 286.18 | 0.2856 | 647.0 | 502.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 10.11 | 340.81 | 15.97 | 282.21 | 0.2784 | 757.0 | 595.9 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 13.12 | 340.92 | 16.09 | 292.35 | 0.2931 | 650.0 | 505.3 | |
| 0.54 | 2.43 | 0.28 | 1.25 | 9.65 | 340.69 | 15.85 | 280.66 | 0.2752 | 872.7 | 706.3 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 10.81 | 340.75 | 15.91 | 284.72 | 0.2797 | 555.0 | 576.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 13.33 | 340.81 | 15.97 | 293.18 | 0.2926 | 693.0 | 515.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 9.21 | 340.38 | 15.54 | 279.18 | 0.2691 | 810.0 | 669.1 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 9.11 | 339.83 | 15.00 | 279.04 | 0.2599 | 895.0 | 789.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
