SDO HMI 2014-08-24 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 45.08 | 0.24 | 23.68 | -10.43 | 331.85 | 7.02 | 200.47 | 0.3348 | 378.2 | 325.6 | |
|
previous
or next observation for the same group /

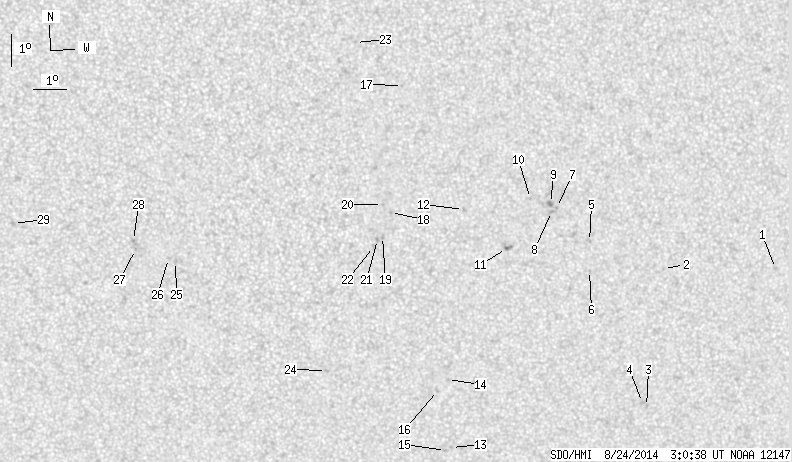

back to the solar disc SDO HMI 2014-08-24 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 1.03 | -10.57 | 342.58 | 17.75 | 225.31 | 0.4232 | 728.0 | 494.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -10.44 | 338.98 | 14.15 | 219.04 | 0.3832 | 705.0 | 590.2 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -14.88 | 338.68 | 13.85 | 212.05 | 0.4376 | 655.0 | 539.4 | |
| 0.00 | 2.34 | 0.00 | 1.28 | -14.74 | 338.54 | 13.71 | 211.96 | 0.4347 | 741.0 | 637.2 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -9.52 | 336.61 | 11.77 | 215.51 | 0.3479 | 726.0 | 638.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -10.44 | 336.64 | 11.80 | 214.08 | 0.3606 | 514.0 | 392.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -8.42 | 335.54 | 10.71 | 214.84 | 0.3230 | 766.0 | 660.0 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -8.54 | 335.39 | 10.55 | 214.24 | 0.3233 | 889.0 | 776.0 | |
| 0.00 | 2.88 | 0.00 | 1.50 | -8.29 | 335.35 | 10.51 | 214.59 | 0.3195 | 1050.0 | 918.1 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -8.12 | 334.72 | 9.89 | 213.26 | 0.3113 | 749.0 | 679.7 | |
| 0.45 | 4.04 | 0.24 | 2.12 | -9.68 | 334.01 | 9.18 | 208.84 | 0.3275 | 892.4 | 771.9 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -8.42 | 332.65 | 7.82 | 206.92 | 0.2985 | 815.0 | 689.1 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -16.07 | 332.49 | 7.66 | 198.14 | 0.4131 | 799.0 | 546.1 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -13.84 | 332.29 | 7.46 | 199.54 | 0.3782 | -638.0 | -613.1 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -16.16 | 332.31 | 7.47 | 197.65 | 0.4136 | 680.0 | 495.6 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -14.19 | 331.99 | 7.15 | 198.50 | 0.3820 | -734.0 | -504.4 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -4.52 | 330.73 | 5.89 | 207.18 | 0.2251 | 636.0 | 517.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -8.48 | 330.40 | 5.57 | 199.80 | 0.2845 | 838.0 | 644.4 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -9.23 | 330.16 | 5.33 | 198.18 | 0.2952 | 900.0 | 729.3 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -8.22 | 330.15 | 5.32 | 199.27 | 0.2791 | 776.0 | 577.7 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -9.32 | 330.01 | 5.18 | 197.59 | 0.2959 | 1008.0 | 717.9 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -9.54 | 329.89 | 5.06 | 196.99 | 0.2988 | 756.0 | 559.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -3.18 | 329.29 | 4.45 | 203.71 | 0.1937 | 676.0 | 520.6 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -13.49 | 328.49 | 3.65 | 190.04 | 0.3570 | -730.0 | -592.3 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -9.98 | 323.80 | -1.04 | 176.51 | 0.2941 | -743.0 | -662.5 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -9.89 | 323.58 | -1.25 | 175.76 | 0.2928 | -930.0 | -697.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -9.61 | 322.57 | -2.27 | 172.24 | 0.2898 | -774.0 | -549.5 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -9.32 | 322.51 | -2.32 | 171.90 | 0.2852 | -888.0 | -755.1 | |
| 0.00 | 2.25 | 0.00 | 1.16 | -8.82 | 318.82 | -6.01 | 159.17 | 0.2924 | -18.0 | -66.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
