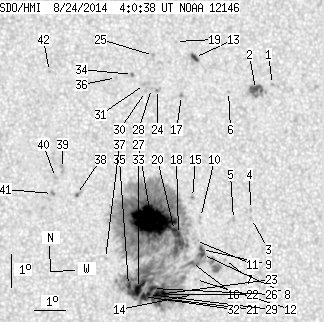

SDO HMI 2014-08-24 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.69 | 816.19 | 67.73 | 429.31 | 8.30 | 343.97 | 19.68 | 274.99 | 0.3367 | -481.2 | -280.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-24 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.73 | 12.67 | 348.16 | 23.87 | 285.40 | 0.4113 | -713.0 | -589.1 | |
| 6.11 | 16.98 | 3.30 | 9.18 | 12.54 | 347.57 | 23.28 | 285.38 | 0.4018 | -944.5 | -793.2 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 8.64 | 347.12 | 22.83 | 275.63 | 0.3871 | 693.0 | 596.5 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 8.91 | 347.10 | 22.82 | 276.35 | 0.3871 | 678.0 | 590.5 | |
| 0.00 | 1.89 | 0.00 | 1.01 | 8.64 | 346.52 | 22.23 | 275.70 | 0.3776 | 808.0 | 568.6 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 12.53 | 346.66 | 22.37 | 285.79 | 0.3877 | -695.0 | -544.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 7.44 | 346.15 | 21.87 | 272.51 | 0.3712 | -641.0 | -572.4 | |
| 2.16 | 752.43 | 1.14 | 395.45 | 7.62 | 345.44 | 21.15 | 273.01 | 0.3597 | -1059.3 | -295.4 | |
| 1.71 | -8.00 | 0.91 | -8.00 | 7.78 | 345.41 | 21.13 | 273.44 | 0.3593 | -984.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 8.75 | 345.44 | 21.15 | 276.15 | 0.3602 | -638.0 | -484.5 | |
| 0.00 | 3.15 | 0.00 | 1.67 | 8.06 | 345.23 | 20.95 | 274.24 | 0.3565 | -424.0 | -509.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 6.88 | 345.17 | 20.88 | 270.91 | 0.3555 | 456.0 | 263.8 | |
| 2.52 | 6.56 | 1.34 | 3.50 | 13.61 | 345.62 | 21.33 | 289.19 | 0.3760 | 764.6 | 245.3 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 6.43 | 345.08 | 20.80 | 269.62 | 0.3544 | 592.0 | 423.1 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 9.36 | 345.21 | 20.93 | 277.91 | 0.3573 | -640.0 | -465.4 | |
| 0.90 | -8.00 | 0.48 | -8.00 | 7.40 | 345.07 | 20.78 | 272.38 | 0.3536 | -974.2 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.15 | 12.47 | 345.08 | 20.80 | 286.54 | 0.3632 | 911.0 | 657.2 | |
| 1.80 | -8.00 | 0.95 | -8.00 | 8.26 | 344.69 | 20.40 | 274.88 | 0.3477 | -850.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 14.13 | 345.03 | 20.75 | 290.95 | 0.3694 | 692.0 | 559.6 | |
| 1.62 | -8.00 | 0.85 | -8.00 | 8.39 | 344.56 | 20.28 | 275.26 | 0.3458 | -876.7 | 999999 | |
| 1.17 | -8.00 | 0.62 | -8.00 | 6.31 | 344.30 | 20.01 | 269.17 | 0.3417 | 731.4 | 999999 | |
| 6.29 | -8.00 | 3.31 | -8.00 | 6.47 | 344.11 | 19.82 | 269.61 | 0.3385 | 1031.8 | 999999 | |
| 3.32 | -8.00 | 1.75 | -8.00 | 6.48 | 343.92 | 19.63 | 269.60 | 0.3353 | 1148.0 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.24 | 12.69 | 344.30 | 20.02 | 287.63 | 0.3519 | -762.0 | -662.5 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 13.73 | 344.26 | 19.98 | 290.51 | 0.3558 | 808.0 | 633.0 | |
| 3.41 | -8.00 | 1.79 | -8.00 | 6.66 | 343.76 | 19.48 | 270.15 | 0.3326 | 628.6 | 999999 | |
| 76.47 | -8.00 | 40.18 | -8.00 | 8.73 | 343.83 | 19.54 | 276.36 | 0.3342 | -1394.1 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 12.73 | 344.11 | 19.82 | 287.88 | 0.3491 | -825.0 | -736.1 | |
| 3.15 | -8.00 | 1.65 | -8.00 | 6.49 | 343.62 | 19.34 | 269.60 | 0.3305 | 1014.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 12.65 | 343.90 | 19.62 | 287.79 | 0.3455 | -834.0 | -701.3 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 12.86 | 343.89 | 19.60 | 288.40 | 0.3462 | -863.0 | -713.2 | |
| 4.04 | -8.00 | 2.12 | -8.00 | 6.43 | 343.46 | 19.18 | 269.41 | 0.3278 | 1079.4 | 999999 | |
| 11.41 | -8.00 | 5.98 | -8.00 | 6.68 | 343.31 | 19.02 | 270.16 | 0.3252 | 953.1 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 13.18 | 343.52 | 19.23 | 289.58 | 0.3419 | -863.0 | -766.6 | |
| 2.25 | -8.00 | 1.17 | -8.00 | 6.79 | 342.99 | 18.71 | 270.45 | 0.3199 | 678.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 13.11 | 342.99 | 18.70 | 289.82 | 0.3334 | -830.0 | -517.6 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 7.63 | 342.29 | 18.00 | 273.13 | 0.3081 | -558.0 | -394.5 | |
| 0.36 | 2.43 | 0.19 | 1.26 | 9.61 | 341.45 | 17.17 | 279.87 | 0.2967 | 781.2 | 617.0 | |
| 0.00 | 3.32 | 0.00 | 1.72 | 10.41 | 341.05 | 16.76 | 282.80 | 0.2921 | 519.0 | 528.1 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 10.15 | 340.81 | 16.52 | 282.03 | 0.2875 | 768.0 | 561.8 | |
| 0.00 | 1.89 | 0.00 | 0.97 | 9.67 | 340.68 | 16.40 | 280.42 | 0.2842 | 904.0 | 761.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 13.38 | 340.82 | 16.53 | 292.69 | 0.3013 | 691.0 | 433.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
