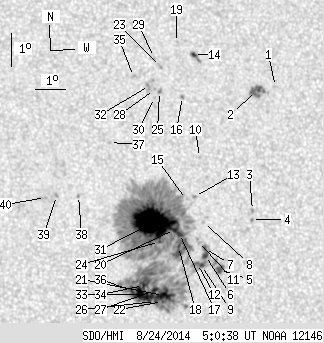

SDO HMI 2014-08-24 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.56 | 802.22 | 67.87 | 423.54 | 8.18 | 344.02 | 20.29 | 274.58 | 0.3465 | -488.3 | -294.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-24 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.83 | 12.64 | 348.22 | 24.48 | 285.06 | 0.4205 | -736.0 | -494.5 | |
| 5.66 | 15.10 | 3.07 | 8.20 | 12.55 | 347.56 | 23.83 | 285.14 | 0.4102 | -981.2 | -823.1 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 8.92 | 347.12 | 23.39 | 276.28 | 0.3962 | 739.0 | 652.7 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 8.65 | 347.07 | 23.33 | 275.60 | 0.3951 | 717.0 | 595.9 | |
| 3.33 | 751.14 | 1.78 | 396.23 | 7.18 | 345.92 | 22.18 | 271.83 | 0.3764 | -933.9 | -297.3 | |
| 2.79 | -5.00 | 1.48 | -5.00 | 7.63 | 345.48 | 21.75 | 273.02 | 0.3693 | -1113.3 | 999999 | |
| 1.08 | -5.00 | 0.57 | -5.00 | 7.84 | 345.46 | 21.72 | 273.60 | 0.3690 | -904.3 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 8.63 | 345.48 | 21.74 | 275.75 | 0.3696 | -645.0 | -485.1 | |
| 1.62 | -5.00 | 0.86 | -5.00 | 7.33 | 345.34 | 21.60 | 272.21 | 0.3669 | -817.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 10.61 | 345.48 | 21.74 | 281.07 | 0.3726 | 866.0 | 656.8 | |
| 0.00 | 2.88 | 0.00 | 1.53 | 8.06 | 345.28 | 21.54 | 274.22 | 0.3661 | -662.0 | -528.3 | |
| 0.27 | -5.00 | 0.14 | -5.00 | 7.40 | 345.21 | 21.47 | 272.39 | 0.3648 | -1192.0 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 9.43 | 345.23 | 21.49 | 277.97 | 0.3665 | -651.0 | -525.0 | |
| 1.80 | 4.76 | 0.96 | 2.55 | 13.75 | 345.55 | 21.82 | 289.21 | 0.3839 | 625.9 | 551.5 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 9.35 | 344.96 | 21.22 | 277.82 | 0.3621 | -209.0 | -213.2 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 12.48 | 345.07 | 21.33 | 286.25 | 0.3715 | 842.0 | 633.4 | |
| 1.71 | -5.00 | 0.90 | -5.00 | 8.33 | 344.67 | 20.93 | 275.02 | 0.3563 | -827.6 | 999999 | |
| 1.08 | -5.00 | 0.57 | -5.00 | 7.94 | 344.61 | 20.87 | 273.92 | 0.3553 | -904.8 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 14.14 | 345.02 | 21.28 | 290.57 | 0.3776 | 490.0 | 385.8 | |
| 1.98 | -5.00 | 1.05 | -5.00 | 8.46 | 344.51 | 20.77 | 275.40 | 0.3539 | -868.6 | 999999 | |
| 9.17 | -5.00 | 4.84 | -5.00 | 6.48 | 344.05 | 20.31 | 269.71 | 0.3464 | 1100.5 | 999999 | |
| 0.27 | -5.00 | 0.14 | -5.00 | 6.30 | 344.01 | 20.27 | 269.18 | 0.3459 | 995.7 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 13.43 | 344.42 | 20.68 | 289.17 | 0.3652 | 605.0 | 417.2 | |
| 2.07 | -5.00 | 1.09 | -5.00 | 8.12 | 344.00 | 20.26 | 274.47 | 0.3454 | -998.2 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.00 | 12.67 | 344.32 | 20.58 | 287.20 | 0.3606 | -903.0 | -755.6 | |
| 0.90 | -5.00 | 0.47 | -5.00 | 6.31 | 343.78 | 20.05 | 269.17 | 0.3422 | 919.9 | 999999 | |
| 2.43 | -5.00 | 1.28 | -5.00 | 6.64 | 343.77 | 20.03 | 270.15 | 0.3417 | 657.7 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 12.74 | 344.16 | 20.42 | 287.49 | 0.3584 | -879.0 | -723.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 13.71 | 344.24 | 20.51 | 290.05 | 0.3638 | 761.0 | 574.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 12.49 | 344.14 | 20.40 | 286.84 | 0.3571 | -703.0 | -567.3 | |
| 71.54 | -5.00 | 37.71 | -5.00 | 8.71 | 343.80 | 20.07 | 276.21 | 0.3426 | -1451.4 | 999999 | |
| 0.00 | 5.21 | 0.00 | 2.76 | 12.87 | 344.00 | 20.27 | 287.95 | 0.3565 | -824.0 | -760.4 | |
| 17.35 | -5.00 | 9.12 | -5.00 | 6.54 | 343.40 | 19.67 | 269.79 | 0.3358 | 1103.5 | 999999 | |
| 0.27 | -5.00 | 0.14 | -5.00 | 6.81 | 343.42 | 19.68 | 270.61 | 0.3358 | 787.7 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 13.16 | 343.50 | 19.76 | 289.12 | 0.3499 | -872.0 | -688.1 | |
| 3.24 | -5.00 | 1.70 | -5.00 | 6.67 | 343.02 | 19.28 | 270.16 | 0.3294 | 900.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 11.19 | 342.56 | 18.82 | 284.06 | 0.3277 | -679.0 | -539.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 9.62 | 341.45 | 17.72 | 279.69 | 0.3057 | 854.0 | 724.4 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 9.65 | 340.75 | 17.01 | 280.07 | 0.2942 | 865.0 | 688.3 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 9.60 | 340.39 | 16.65 | 280.07 | 0.2882 | 820.0 | 713.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
