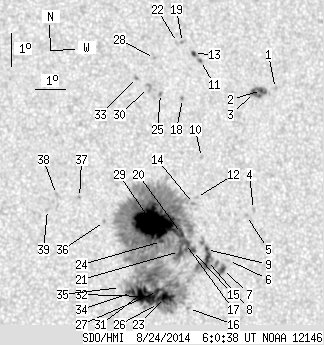

SDO HMI 2014-08-24 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 156.85 | 787.43 | 83.15 | 417.22 | 8.02 | 344.07 | 20.88 | 274.09 | 0.3561 | -369.6 | -328.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-24 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.94 | 12.61 | 348.22 | 25.03 | 284.75 | 0.4287 | -775.0 | -616.0 | |
| 3.06 | 13.93 | 1.67 | 7.60 | 12.57 | 347.74 | 24.55 | 284.87 | 0.4213 | -934.5 | -826.9 | |
| 2.43 | -2.00 | 1.32 | -2.00 | 12.52 | 347.49 | 24.30 | 284.86 | 0.4174 | -1010.7 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.07 | 8.98 | 347.15 | 23.96 | 276.36 | 0.4053 | 699.0 | 540.1 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 8.81 | 346.90 | 23.71 | 275.97 | 0.4013 | 750.0 | 610.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 7.47 | 346.22 | 23.03 | 272.62 | 0.3899 | -666.0 | -527.8 | |
| 2.70 | 736.08 | 1.45 | 389.65 | 7.21 | 346.01 | 22.82 | 271.93 | 0.3866 | -930.7 | -345.0 | |
| 6.20 | -7.00 | 3.32 | -7.00 | 7.51 | 345.52 | 22.33 | 272.70 | 0.3788 | -1082.9 | 999999 | |
| 1.35 | -7.00 | 0.72 | -7.00 | 7.84 | 345.51 | 22.32 | 273.58 | 0.3786 | -870.9 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 10.64 | 345.54 | 22.35 | 280.94 | 0.3822 | 762.0 | 634.7 | |
| 0.54 | 5.57 | 0.29 | 3.00 | 13.58 | 345.77 | 22.58 | 288.32 | 0.3948 | 643.0 | 438.3 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 9.43 | 345.28 | 22.09 | 277.84 | 0.3761 | -717.0 | -459.4 | |
| 1.35 | -11.00 | 0.73 | -11.00 | 13.81 | 345.55 | 22.36 | 289.01 | 0.3925 | 660.9 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 9.25 | 345.17 | 21.98 | 277.39 | 0.3741 | -779.0 | -542.6 | |
| 2.16 | -7.00 | 1.15 | -7.00 | 7.83 | 345.05 | 21.86 | 273.58 | 0.3711 | -906.9 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 6.08 | 344.83 | 21.64 | 268.81 | 0.3683 | 735.0 | 540.4 | |
| 6.83 | -7.00 | 3.64 | -7.00 | 8.06 | 344.83 | 21.64 | 274.19 | 0.3677 | -895.4 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 12.46 | 345.05 | 21.86 | 285.88 | 0.3797 | 834.0 | 610.5 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 14.16 | 345.22 | 22.03 | 290.10 | 0.3889 | 792.0 | 627.2 | |
| 3.24 | -7.00 | 1.72 | -7.00 | 8.36 | 344.72 | 21.53 | 275.05 | 0.3660 | -775.6 | 999999 | |
| 4.40 | -7.00 | 2.34 | -7.00 | 7.82 | 344.62 | 21.43 | 273.56 | 0.3642 | -705.6 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 14.17 | 345.05 | 21.86 | 290.24 | 0.3864 | 733.0 | 404.0 | |
| 17.53 | -7.00 | 9.28 | -7.00 | 6.45 | 344.06 | 20.87 | 269.71 | 0.3555 | 1001.7 | 999999 | |
| 0.27 | -7.00 | 0.14 | -7.00 | 8.15 | 344.05 | 20.86 | 274.51 | 0.3550 | -986.0 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 12.64 | 344.34 | 21.15 | 286.78 | 0.3692 | -914.0 | -770.1 | |
| 1.53 | -7.00 | 0.81 | -7.00 | 6.28 | 343.86 | 20.67 | 269.19 | 0.3523 | 907.8 | 999999 | |
| 3.68 | -7.00 | 1.95 | -7.00 | 6.64 | 343.84 | 20.65 | 270.23 | 0.3518 | 812.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 13.71 | 344.23 | 21.04 | 289.66 | 0.3720 | 623.0 | 489.8 | |
| 69.56 | -7.00 | 36.79 | -7.00 | 8.71 | 343.78 | 20.59 | 276.13 | 0.3512 | -1478.8 | 999999 | |
| 0.00 | 4.13 | 0.00 | 2.20 | 12.84 | 343.95 | 20.76 | 287.55 | 0.3641 | -475.0 | -761.2 | |
| 3.06 | -7.00 | 1.61 | -7.00 | 6.69 | 343.45 | 20.26 | 270.32 | 0.3454 | 811.2 | 999999 | |
| 22.56 | -7.00 | 11.90 | -7.00 | 6.51 | 343.41 | 20.22 | 269.79 | 0.3449 | 1093.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 13.16 | 343.58 | 20.39 | 288.66 | 0.3597 | -883.0 | -773.1 | |
| 4.40 | -7.00 | 2.32 | -7.00 | 6.65 | 342.99 | 19.80 | 270.15 | 0.3380 | 980.8 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.04 | 6.82 | 342.64 | 19.45 | 270.61 | 0.3321 | 711.0 | 603.3 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 8.84 | 342.22 | 19.03 | 276.80 | 0.3260 | -916.0 | -707.8 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 9.59 | 341.46 | 18.27 | 279.40 | 0.3146 | 823.0 | 677.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 9.71 | 340.72 | 17.53 | 280.08 | 0.3029 | 833.0 | 704.8 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 9.27 | 340.41 | 17.22 | 278.72 | 0.2968 | 739.0 | 589.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
