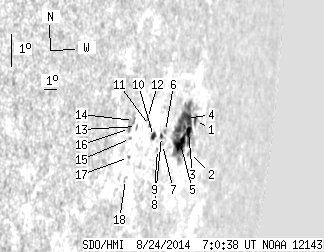

SDO HMI 2014-08-24 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.89 | 108.06 | 41.31 | 168.96 | -4.54 | 33.42 | 70.77 | 262.81 | 0.9498 | 293.8 | 233.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-24 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.53 | 83.76 | 2.60 | 135.23 | -4.36 | 35.01 | 72.37 | 263.26 | 0.9582 | -56.5 | 341.6 | |
| 0.00 | 2.25 | 0.00 | 3.78 | -5.34 | 34.66 | 72.02 | 262.19 | 0.9572 | 32.0 | 36.6 | |
| 4.04 | -1.00 | 6.69 | -1.00 | -4.63 | 34.37 | 71.73 | 262.88 | 0.9552 | 332.9 | 999999 | |
| 8.00 | -1.00 | 12.97 | -1.00 | -4.19 | 34.08 | 71.43 | 263.29 | 0.9533 | 524.5 | 999999 | |
| 9.17 | -1.00 | 14.60 | -1.00 | -4.91 | 33.67 | 71.03 | 262.47 | 0.9517 | 617.3 | 999999 | |
| 0.00 | 1.62 | 0.00 | 2.38 | -4.37 | 32.17 | 69.53 | 262.79 | 0.9430 | 355.0 | 367.7 | |
| 0.00 | 0.99 | 0.00 | 1.45 | -4.75 | 31.99 | 69.35 | 262.36 | 0.9423 | 495.0 | 486.2 | |
| 0.90 | 1.71 | 1.30 | 2.48 | -4.48 | 31.85 | 69.20 | 262.62 | 0.9413 | 190.5 | 277.3 | |
| 0.00 | 0.99 | 0.00 | 1.42 | -4.85 | 31.58 | 68.94 | 262.18 | 0.9401 | 86.0 | 102.0 | |
| 2.25 | 3.51 | 3.15 | 4.92 | -4.40 | 31.15 | 68.50 | 262.58 | 0.9370 | -83.3 | 5.5 | |
| 0.00 | 1.26 | 0.00 | 1.73 | -4.02 | 30.74 | 68.10 | 262.92 | 0.9342 | -428.0 | -324.1 | |
| 0.00 | 1.62 | 0.00 | 2.20 | -3.78 | 30.54 | 67.89 | 263.14 | 0.9327 | -314.0 | -286.2 | |
| 0.00 | 1.62 | 0.00 | 2.12 | -3.93 | 29.68 | 67.03 | 262.84 | 0.9274 | -251.0 | -221.3 | |
| 0.00 | 2.34 | 0.00 | 3.03 | -3.71 | 29.41 | 66.77 | 263.02 | 0.9254 | -510.0 | -450.7 | |
| 0.00 | 1.17 | 0.00 | 1.51 | -4.25 | 29.26 | 66.62 | 262.42 | 0.9251 | -409.0 | -367.5 | |
| 0.00 | 2.43 | 0.00 | 3.11 | -3.93 | 29.13 | 66.49 | 262.74 | 0.9239 | -617.0 | -528.9 | |
| 0.00 | 0.90 | 0.00 | 1.16 | -4.83 | 29.21 | 66.57 | 261.79 | 0.9254 | -259.0 | -143.2 | |
| 0.00 | 1.89 | 0.00 | 2.44 | -5.50 | 29.12 | 66.48 | 261.06 | 0.9255 | -398.0 | -252.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
