SDO HMI 2014-08-24 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 154.69 | 762.35 | 82.52 | 406.92 | 7.93 | 344.00 | 21.91 | 273.78 | 0.3726 | -356.6 | -341.2 | |
|
previous
or next observation for the same group /

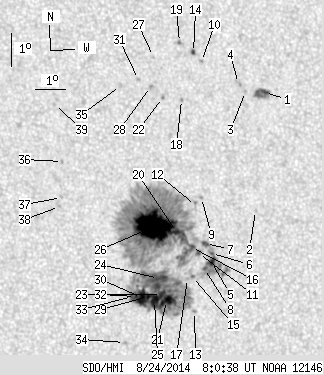

back to the solar disc SDO HMI 2014-08-24 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.79 | 12.58 | 1.54 | 6.93 | 12.57 | 347.84 | 25.75 | 284.38 | 0.4396 | -920.7 | -860.9 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 9.01 | 347.21 | 25.11 | 276.30 | 0.4235 | 610.0 | 494.8 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 12.63 | 347.20 | 25.10 | 284.79 | 0.4299 | -900.0 | -706.7 | |
| 0.00 | 2.61 | 0.00 | 1.43 | 12.89 | 346.98 | 24.89 | 285.46 | 0.4275 | -621.0 | -646.5 | |
| 4.76 | 713.78 | 2.57 | 380.69 | 7.54 | 345.63 | 23.53 | 272.80 | 0.3980 | -1144.2 | -350.8 | |
| 0.90 | -5.00 | 0.49 | -5.00 | 7.78 | 345.64 | 23.55 | 273.41 | 0.3982 | -878.0 | 999999 | |
| 2.25 | -5.00 | 1.21 | -5.00 | 8.09 | 345.46 | 23.37 | 274.20 | 0.3954 | -804.3 | 999999 | |
| 0.90 | -5.00 | 0.48 | -5.00 | 7.34 | 345.38 | 23.29 | 272.28 | 0.3941 | -1012.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 9.49 | 345.42 | 23.33 | 277.76 | 0.3959 | -655.0 | -498.4 | |
| 0.00 | 1.89 | 0.00 | 1.03 | 13.62 | 345.80 | 23.70 | 287.76 | 0.4120 | 553.0 | 509.7 | |
| 1.35 | -5.00 | 0.73 | -5.00 | 7.80 | 345.21 | 23.12 | 273.47 | 0.3913 | -959.7 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.26 | 9.26 | 345.21 | 23.11 | 277.20 | 0.3921 | -713.0 | -613.8 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 6.05 | 344.99 | 22.89 | 268.95 | 0.3885 | 733.0 | 628.1 | |
| 1.26 | 2.16 | 0.68 | 1.17 | 13.91 | 345.56 | 23.46 | 288.58 | 0.4094 | 738.8 | 553.2 | |
| 0.36 | 4.13 | 0.19 | 2.22 | 7.11 | 344.97 | 22.88 | 271.69 | 0.3876 | -884.2 | -302.1 | |
| 2.61 | -5.00 | 1.40 | -5.00 | 7.99 | 344.99 | 22.89 | 273.97 | 0.3878 | -869.6 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 7.06 | 344.80 | 22.71 | 271.55 | 0.3849 | -294.0 | -272.3 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 12.50 | 345.00 | 22.91 | 285.45 | 0.3960 | 640.0 | 511.2 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 14.23 | 345.11 | 23.02 | 289.63 | 0.4042 | 930.0 | 804.0 | |
| 2.52 | -5.00 | 1.35 | -5.00 | 8.50 | 344.52 | 22.43 | 275.33 | 0.3806 | -876.4 | 999999 | |
| 17.62 | -5.00 | 9.40 | -5.00 | 6.43 | 344.08 | 21.98 | 269.80 | 0.3736 | 983.0 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 12.59 | 344.37 | 22.28 | 286.00 | 0.3866 | -844.0 | -742.1 | |
| 3.77 | -5.00 | 2.01 | -5.00 | 6.62 | 343.92 | 21.83 | 270.29 | 0.3709 | 871.8 | 999999 | |
| 10.78 | -5.00 | 5.75 | -5.00 | 7.11 | 343.85 | 21.75 | 271.61 | 0.3695 | -481.2 | 999999 | |
| 10.78 | -5.00 | 5.74 | -5.00 | 6.45 | 343.68 | 21.59 | 269.80 | 0.3672 | 1140.4 | 999999 | |
| 69.47 | -5.00 | 37.01 | -5.00 | 8.69 | 343.77 | 21.68 | 275.92 | 0.3687 | -1478.4 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 13.85 | 344.19 | 22.10 | 289.29 | 0.3886 | 541.0 | 423.6 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 12.94 | 344.00 | 21.91 | 287.11 | 0.3821 | -947.0 | -778.6 | |
| 2.70 | -5.00 | 1.43 | -5.00 | 6.58 | 343.49 | 21.40 | 270.13 | 0.3640 | 1041.8 | 999999 | |
| 14.47 | -5.00 | 7.68 | -5.00 | 6.56 | 343.26 | 21.17 | 270.05 | 0.3603 | 1062.9 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 13.17 | 343.62 | 21.53 | 287.94 | 0.3772 | -844.0 | -690.3 | |
| 3.15 | -5.00 | 1.67 | -5.00 | 6.60 | 343.07 | 20.97 | 270.14 | 0.3571 | 1063.8 | 999999 | |
| 2.25 | -5.00 | 1.19 | -5.00 | 6.60 | 342.97 | 20.88 | 270.14 | 0.3555 | 1033.7 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 5.22 | 342.65 | 20.56 | 266.16 | 0.3520 | 744.0 | 679.8 | |
| 0.00 | 1.89 | 0.00 | 1.00 | 13.02 | 343.01 | 20.91 | 287.93 | 0.3671 | -779.0 | -598.2 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 10.79 | 340.92 | 18.83 | 282.85 | 0.3266 | 837.0 | 692.7 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 9.70 | 340.82 | 18.73 | 279.56 | 0.3223 | 766.0 | 659.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 9.43 | 340.74 | 18.65 | 278.75 | 0.3205 | 800.0 | 650.8 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 12.53 | 340.79 | 18.69 | 288.14 | 0.3306 | 894.0 | 650.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
