SDO HMI 2014-08-24 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 36.26 | 0.00 | 19.05 | -9.99 | 330.43 | 8.34 | 205.00 | 0.3382 | 3.0 | 176.0 | |
|
previous
or next observation for the same group /

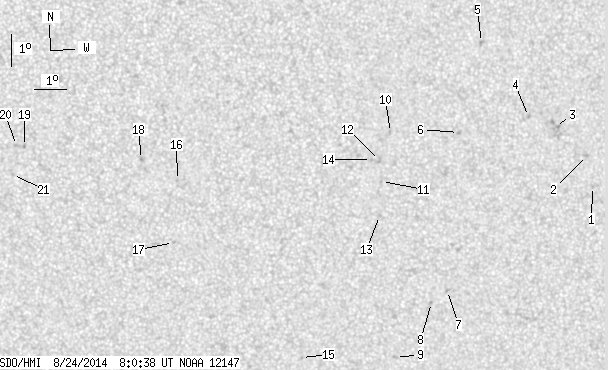

back to the solar disc SDO HMI 2014-08-24 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.72 | -10.47 | 336.88 | 14.79 | 220.26 | 0.3900 | 757.0 | 539.8 | |
| 0.00 | 1.98 | 0.00 | 1.06 | -9.48 | 336.65 | 14.55 | 221.52 | 0.3755 | 687.0 | 636.0 | |
| 0.00 | 6.11 | 0.00 | 3.23 | -8.53 | 335.63 | 13.53 | 221.18 | 0.3530 | 757.0 | 761.4 | |
| 0.00 | 1.89 | 0.00 | 0.99 | -8.19 | 334.77 | 12.67 | 219.95 | 0.3397 | 886.0 | 679.6 | |
| 0.00 | 2.52 | 0.00 | 1.30 | -5.84 | 333.24 | 11.15 | 221.15 | 0.2936 | 996.0 | 749.9 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -8.64 | 332.59 | 10.50 | 213.93 | 0.3240 | 781.0 | 694.3 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -13.68 | 332.42 | 10.33 | 206.38 | 0.3938 | -879.0 | -657.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -14.06 | 331.93 | 9.84 | 204.86 | 0.3959 | -925.0 | -668.0 | |
| 0.00 | 1.98 | 0.00 | 1.08 | -15.83 | 330.86 | 8.77 | 200.77 | 0.4154 | -785.0 | -630.1 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -8.59 | 330.48 | 8.38 | 208.30 | 0.3053 | 837.0 | 600.3 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -10.14 | 330.23 | 8.14 | 205.39 | 0.3264 | 684.0 | 480.7 | |
| 0.00 | 2.79 | 0.00 | 1.45 | -9.47 | 330.15 | 8.06 | 206.09 | 0.3159 | 646.0 | 601.0 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -11.22 | 330.20 | 8.10 | 203.93 | 0.3423 | 706.0 | 505.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -9.43 | 329.91 | 7.81 | 205.43 | 0.3135 | 867.0 | 769.3 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -15.78 | 327.87 | 5.78 | 194.07 | 0.4003 | -692.0 | -627.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -10.03 | 323.92 | 1.83 | 186.12 | 0.2959 | -921.0 | -746.7 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -12.00 | 323.81 | 1.71 | 185.13 | 0.3284 | -740.0 | -549.3 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -9.36 | 322.81 | 0.72 | 182.52 | 0.2833 | -1079.0 | -827.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -8.95 | 319.22 | -2.87 | 169.79 | 0.2805 | -928.0 | -806.2 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -8.92 | 318.98 | -3.12 | 168.91 | 0.2807 | -895.0 | -672.2 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -9.84 | 318.84 | -3.25 | 169.08 | 0.2962 | -696.0 | -428.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
