SDO HMI 2014-08-24 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 38.50 | 0.00 | 20.39 | -10.00 | 331.91 | 10.36 | 210.42 | 0.3533 | 9.2 | 184.7 | |
|
previous
or next observation for the same group /

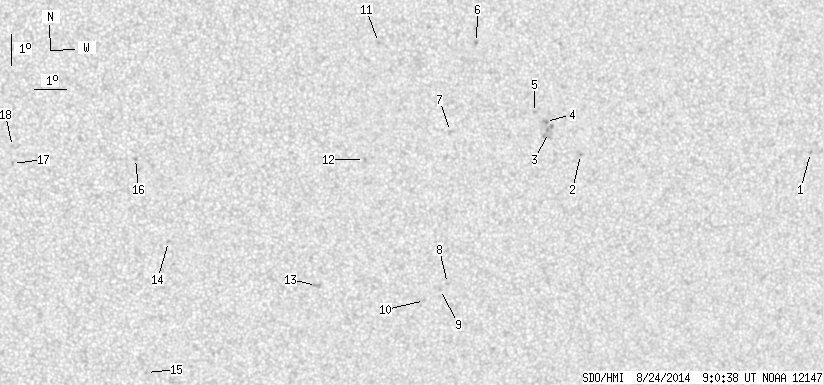

back to the solar disc SDO HMI 2014-08-24 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.86 | -9.73 | 344.20 | 22.66 | 233.73 | 0.4728 | 766.0 | 591.1 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -9.47 | 336.70 | 15.16 | 222.70 | 0.3819 | 773.0 | 674.3 | |
| 0.00 | 9.71 | 0.00 | 5.15 | -8.74 | 335.66 | 14.11 | 221.98 | 0.3618 | 693.0 | 686.9 | |
| 0.00 | 2.25 | 0.00 | 1.19 | -8.40 | 335.55 | 14.00 | 222.42 | 0.3564 | 1085.0 | 922.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -8.10 | 335.19 | 13.65 | 222.24 | 0.3489 | 853.0 | 655.0 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -5.86 | 333.32 | 11.77 | 222.67 | 0.3007 | 983.0 | 812.0 | |
| 0.00 | 2.61 | 0.00 | 1.37 | -8.62 | 332.57 | 11.03 | 215.29 | 0.3288 | 844.0 | 560.4 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -13.47 | 332.66 | 11.11 | 208.33 | 0.3966 | -688.0 | -514.7 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -13.66 | 332.45 | 10.90 | 207.64 | 0.3977 | -882.0 | -676.2 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -14.01 | 331.95 | 10.41 | 206.17 | 0.3991 | -816.0 | -657.1 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -5.79 | 330.28 | 8.73 | 214.47 | 0.2681 | 811.0 | 616.9 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -9.45 | 329.92 | 8.37 | 206.99 | 0.3178 | 797.0 | 678.2 | |
| 0.00 | 3.95 | 0.00 | 2.11 | -13.45 | 328.52 | 6.98 | 198.72 | 0.3697 | -869.0 | -689.2 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -11.98 | 323.88 | 2.33 | 186.98 | 0.3291 | -804.0 | -540.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -16.24 | 323.22 | 1.68 | 184.08 | 0.3972 | -735.0 | -536.0 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -9.33 | 322.85 | 1.30 | 184.56 | 0.2834 | -944.0 | -866.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -9.49 | 319.07 | -2.48 | 171.46 | 0.2883 | -823.0 | -653.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -8.95 | 319.07 | -2.47 | 171.18 | 0.2793 | -878.0 | -690.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
