SDO HMI 2014-08-24 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.75 | 76.45 | 26.54 | 144.90 | -4.65 | 33.49 | 74.15 | 263.23 | 0.9664 | 251.8 | 223.5 | |
|
previous
or next observation for the same group /

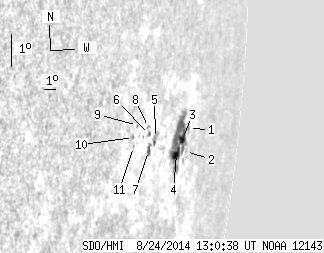

back to the solar disc SDO HMI 2014-08-24 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.59 | 0.00 | 7.55 | -4.33 | 35.04 | 75.69 | 263.79 | 0.9730 | -188.0 | -123.1 | |
| 0.00 | 1.17 | 0.00 | 2.45 | -5.03 | 34.89 | 75.54 | 263.07 | 0.9728 | -455.0 | -396.7 | |
| 5.12 | 55.15 | 10.32 | 108.25 | -4.56 | 34.37 | 75.03 | 263.46 | 0.9704 | 386.2 | 339.0 | |
| 7.01 | -3.00 | 13.60 | -3.00 | -4.95 | 33.79 | 74.44 | 262.97 | 0.9681 | 528.3 | 999999 | |
| 0.00 | 5.57 | 0.00 | 9.28 | -4.20 | 31.34 | 71.99 | 263.37 | 0.9561 | 409.0 | 338.4 | |
| 0.00 | 1.53 | 0.00 | 2.45 | -4.00 | 30.70 | 71.36 | 263.47 | 0.9527 | -324.0 | -280.1 | |
| 1.62 | 4.85 | 2.62 | 7.86 | -4.50 | 30.72 | 71.37 | 262.96 | 0.9532 | -204.1 | -107.0 | |
| 0.00 | 1.89 | 0.00 | 3.01 | -3.77 | 30.56 | 71.21 | 263.69 | 0.9518 | -345.0 | -250.8 | |
| 0.00 | 0.90 | 0.00 | 1.36 | -3.59 | 29.50 | 70.15 | 263.72 | 0.9459 | -285.0 | -279.2 | |
| 0.00 | 0.81 | 0.00 | 1.21 | -3.92 | 29.20 | 69.85 | 263.32 | 0.9445 | -512.0 | -485.9 | |
| 0.00 | 0.99 | 0.00 | 1.48 | -4.20 | 29.26 | 69.91 | 263.03 | 0.9450 | -237.0 | -275.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
