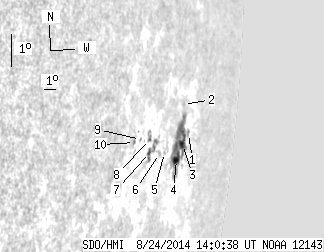

SDO HMI 2014-08-24 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.60 | 80.57 | 21.02 | 156.74 | -4.65 | 33.34 | 74.54 | 263.30 | 0.9680 | 263.9 | 240.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-24 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.07 | 0.00 | 4.53 | -4.34 | 35.11 | 76.31 | 263.88 | 0.9754 | -266.0 | -190.4 | |
| 0.00 | 1.53 | 0.00 | 3.12 | -3.34 | 34.20 | 75.41 | 264.76 | 0.9712 | 139.0 | 136.5 | |
| 3.86 | 55.14 | 8.08 | 112.52 | -4.60 | 34.42 | 75.62 | 263.51 | 0.9728 | 409.2 | 336.2 | |
| 4.85 | -3.00 | 9.82 | -3.00 | -4.99 | 33.81 | 75.01 | 263.03 | 0.9706 | 475.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 1.97 | -4.59 | 32.32 | 73.52 | 263.20 | 0.9638 | 479.0 | 463.7 | |
| 0.00 | 1.89 | 0.00 | 3.34 | -4.56 | 31.77 | 72.98 | 263.15 | 0.9612 | 504.0 | 493.6 | |
| 1.35 | 11.85 | 2.23 | 19.96 | -4.40 | 30.71 | 71.91 | 263.14 | 0.9559 | -317.7 | 88.7 | |
| 0.54 | 4.67 | 0.89 | 7.69 | -3.99 | 30.62 | 71.82 | 263.56 | 0.9551 | -326.3 | -248.6 | |
| 0.00 | 0.99 | 0.00 | 1.55 | -3.89 | 29.73 | 70.93 | 263.52 | 0.9504 | -286.0 | -269.7 | |
| 0.00 | 1.35 | 0.00 | 2.06 | -3.92 | 29.17 | 70.38 | 263.41 | 0.9474 | -420.0 | -399.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
