SDO HMI 2014-08-24 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 27.17 | 0.00 | 14.62 | -9.85 | 332.54 | 13.74 | 216.50 | 0.3862 | -0.2 | 231.9 | |
|
previous
or next observation for the same group /

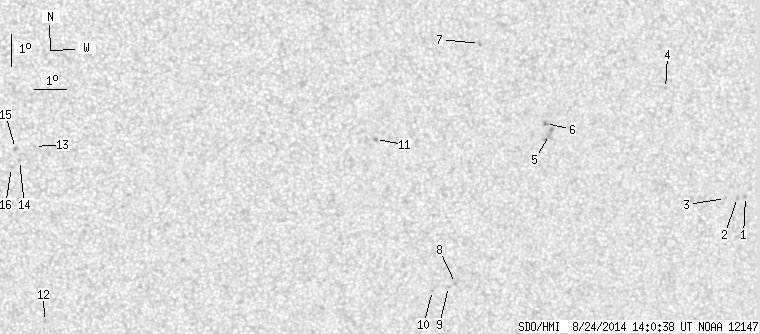

back to the solar disc SDO HMI 2014-08-24 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.72 | -11.10 | 342.39 | 23.59 | 232.55 | 0.4967 | 701.0 | 589.0 | |
| 0.00 | 1.62 | 0.00 | 0.92 | -11.12 | 342.12 | 23.32 | 232.20 | 0.4936 | 617.0 | 570.7 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -11.13 | 341.72 | 22.92 | 231.70 | 0.4889 | 791.0 | 564.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -7.56 | 339.50 | 20.70 | 235.20 | 0.4285 | 689.0 | 410.4 | |
| 0.00 | 5.93 | 0.00 | 3.19 | -8.84 | 335.80 | 17.01 | 227.18 | 0.3957 | 753.0 | 724.3 | |
| 0.00 | 2.16 | 0.00 | 1.16 | -8.49 | 335.66 | 16.86 | 227.60 | 0.3902 | 1075.0 | 847.2 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -5.91 | 333.47 | 14.68 | 228.93 | 0.3357 | 911.0 | 717.9 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -13.50 | 333.04 | 14.24 | 214.61 | 0.4229 | -729.0 | -652.5 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -13.59 | 332.82 | 14.02 | 214.08 | 0.4221 | -559.0 | -480.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -13.70 | 332.31 | 13.51 | 212.95 | 0.4191 | -730.0 | -604.2 | |
| 0.00 | 2.34 | 0.00 | 1.23 | -8.82 | 330.29 | 11.50 | 216.08 | 0.3359 | 904.0 | 745.5 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -14.49 | 320.09 | 1.29 | 183.40 | 0.3686 | -809.0 | -632.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -8.89 | 319.76 | 0.96 | 183.47 | 0.2755 | -978.0 | -740.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -9.33 | 319.30 | 0.50 | 181.76 | 0.2825 | -871.0 | -643.2 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -8.95 | 319.18 | 0.38 | 181.36 | 0.2761 | -971.0 | -819.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -9.55 | 319.05 | 0.26 | 180.89 | 0.2861 | -798.0 | -546.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
