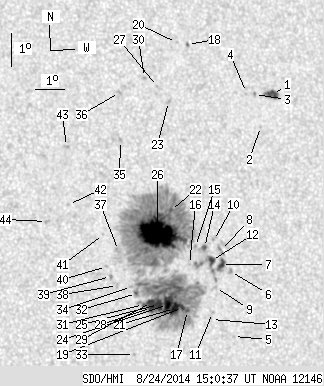

SDO HMI 2014-08-24 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.19 | 798.17 | 64.50 | 438.41 | 8.00 | 343.95 | 25.71 | 273.89 | 0.4328 | -458.4 | -281.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-24 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.73 | 10.15 | 3.85 | 5.80 | 12.59 | 348.21 | 29.96 | 283.08 | 0.5024 | -933.6 | -748.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 11.65 | 347.66 | 29.42 | 281.32 | 0.4926 | -704.0 | -591.1 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 12.63 | 347.57 | 29.32 | 283.33 | 0.4931 | -785.0 | -716.5 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 12.71 | 347.29 | 29.05 | 283.57 | 0.4892 | -664.0 | -723.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 5.35 | 346.19 | 27.95 | 268.19 | 0.4688 | -558.0 | -489.5 | |
| 0.00 | 2.42 | 0.00 | 1.36 | 7.32 | 346.21 | 27.96 | 272.42 | 0.4674 | -783.0 | -669.4 | |
| 4.31 | 26.67 | 2.41 | 14.85 | 7.55 | 345.91 | 27.67 | 272.91 | 0.4628 | -992.6 | -729.7 | |
| 0.00 | 3.95 | 0.00 | 2.21 | 7.98 | 345.91 | 27.66 | 273.83 | 0.4627 | -690.0 | -570.6 | |
| 0.00 | 2.33 | 0.00 | 1.30 | 6.87 | 345.66 | 27.41 | 271.40 | 0.4591 | -177.0 | -160.0 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 8.29 | 345.69 | 27.45 | 274.52 | 0.4594 | -539.0 | -364.4 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 6.12 | 345.51 | 27.27 | 269.75 | 0.4574 | 548.0 | 474.8 | |
| 3.32 | -7.00 | 1.85 | -7.00 | 7.69 | 345.58 | 27.33 | 273.21 | 0.4576 | -982.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 5.91 | 345.46 | 27.22 | 269.28 | 0.4569 | 585.0 | 466.6 | |
| 1.35 | 5.21 | 0.75 | 2.89 | 8.10 | 345.37 | 27.12 | 274.10 | 0.4543 | -857.8 | -726.8 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 8.15 | 345.06 | 26.81 | 274.21 | 0.4496 | -823.0 | -633.4 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 7.61 | 344.82 | 26.57 | 273.02 | 0.4458 | -866.0 | -747.4 | |
| 1.17 | 711.72 | 0.64 | 390.49 | 6.22 | 344.66 | 26.42 | 269.88 | 0.4441 | 715.8 | -270.4 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 14.28 | 345.41 | 27.17 | 287.53 | 0.4659 | 590.0 | 547.7 | |
| 1.53 | -17.00 | 0.84 | -17.00 | 6.32 | 344.50 | 26.25 | 270.08 | 0.4415 | 770.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 14.37 | 345.04 | 26.79 | 287.87 | 0.4607 | 723.0 | 612.8 | |
| 8.17 | -17.00 | 4.50 | -17.00 | 6.31 | 344.22 | 25.98 | 270.02 | 0.4372 | 1006.3 | 999999 | |
| 1.44 | -17.00 | 0.79 | -17.00 | 9.28 | 344.29 | 26.05 | 276.84 | 0.4383 | -506.6 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.09 | 12.59 | 344.54 | 26.30 | 284.23 | 0.4479 | -907.0 | -733.7 | |
| 6.11 | -17.00 | 3.35 | -17.00 | 6.44 | 343.99 | 25.75 | 270.30 | 0.4335 | 1084.9 | 999999 | |
| 7.00 | -17.00 | 3.84 | -17.00 | 6.46 | 343.69 | 25.45 | 270.30 | 0.4287 | 1142.5 | 999999 | |
| 66.36 | -17.00 | 36.38 | -17.00 | 8.61 | 343.79 | 25.55 | 275.33 | 0.4301 | -1409.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 13.06 | 344.21 | 25.97 | 285.41 | 0.4443 | -770.0 | -621.0 | |
| 4.49 | -17.00 | 2.46 | -17.00 | 6.38 | 343.45 | 25.20 | 270.09 | 0.4250 | 1175.0 | 999999 | |
| 3.59 | -17.00 | 1.96 | -17.00 | 6.53 | 343.46 | 25.21 | 270.45 | 0.4250 | 979.6 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 13.36 | 343.80 | 25.55 | 286.25 | 0.4390 | -771.0 | -670.2 | |
| 0.81 | -17.00 | 0.44 | -17.00 | 6.49 | 343.19 | 24.94 | 270.31 | 0.4207 | 1014.8 | 999999 | |
| 0.81 | -17.00 | 0.44 | -17.00 | 6.83 | 342.97 | 24.72 | 271.11 | 0.4171 | 741.8 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 4.99 | 342.81 | 24.57 | 266.66 | 0.4166 | 820.0 | 653.2 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 7.05 | 342.81 | 24.57 | 271.64 | 0.4145 | -643.0 | -435.6 | |
| 0.00 | 1.98 | 0.00 | 1.08 | 11.49 | 342.78 | 24.53 | 282.34 | 0.4183 | -794.0 | -634.4 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 12.95 | 342.89 | 24.65 | 285.72 | 0.4240 | -855.0 | -654.2 | |
| 0.00 | 3.95 | 0.00 | 2.14 | 8.16 | 342.45 | 24.20 | 274.34 | 0.4087 | -430.0 | -421.3 | |
| 0.00 | 1.89 | 0.00 | 1.02 | 7.11 | 342.35 | 24.10 | 271.74 | 0.4071 | 594.0 | 388.6 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 7.39 | 342.13 | 23.88 | 272.44 | 0.4036 | 679.0 | 546.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 7.70 | 342.01 | 23.77 | 273.21 | 0.4017 | 669.0 | 540.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 8.67 | 341.98 | 23.73 | 275.64 | 0.4015 | -635.0 | -418.0 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 9.64 | 340.87 | 22.63 | 278.28 | 0.3850 | 851.0 | 609.7 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 11.40 | 340.95 | 22.70 | 282.79 | 0.3896 | 834.0 | 693.5 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 9.16 | 340.11 | 21.87 | 277.16 | 0.3722 | 864.0 | 676.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
