SDO HMI 2014-08-24 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.23 | 67.07 | 23.67 | 140.38 | -4.70 | 33.31 | 75.61 | 263.40 | 0.9726 | 272.7 | 262.9 | |
|
previous
or next observation for the same group /

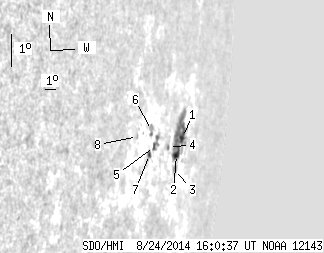

back to the solar disc SDO HMI 2014-08-24 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.86 | 43.81 | 8.79 | 97.06 | -4.55 | 34.45 | 76.76 | 263.73 | 0.9772 | 363.6 | 349.0 | |
| 4.13 | -1.00 | 9.02 | -1.00 | -5.00 | 33.81 | 76.12 | 263.18 | 0.9750 | 449.3 | 999999 | |
| 0.00 | 4.04 | 0.00 | 8.85 | -5.45 | 33.72 | 76.03 | 262.71 | 0.9749 | 144.0 | 147.6 | |
| 0.45 | 1.53 | 0.90 | 3.07 | -4.65 | 32.70 | 75.01 | 263.37 | 0.9704 | 541.8 | 538.7 | |
| 1.35 | 7.90 | 2.43 | 14.40 | -4.42 | 31.05 | 73.35 | 263.35 | 0.9629 | 137.9 | 329.7 | |
| 0.00 | 5.12 | 0.00 | 8.96 | -3.87 | 30.59 | 72.90 | 263.84 | 0.9604 | -369.0 | -272.0 | |
| 1.44 | 3.50 | 2.53 | 6.15 | -4.61 | 30.56 | 72.87 | 263.08 | 0.9608 | -115.8 | -85.0 | |
| 0.00 | 1.17 | 0.00 | 1.89 | -3.89 | 29.18 | 71.49 | 263.61 | 0.9533 | -281.0 | -340.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
