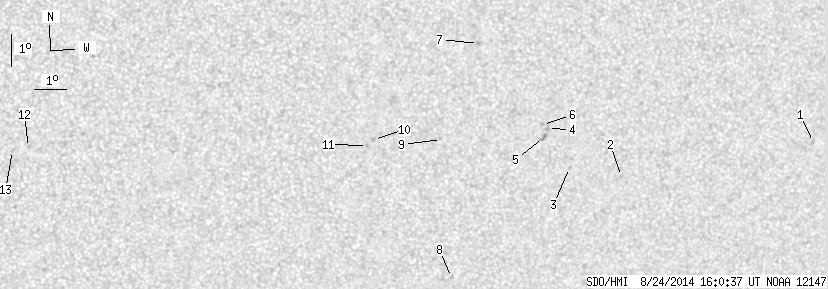

SDO HMI 2014-08-24 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.61 | 0.00 | 10.00 | -9.16 | 333.02 | 15.33 | 221.44 | 0.3885 | 445.5 | 402.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-24 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.68 | -9.55 | 344.80 | 27.11 | 238.84 | 0.5273 | 706.0 | 464.8 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -10.29 | 338.39 | 20.70 | 230.22 | 0.4544 | 717.0 | 524.2 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -9.93 | 336.66 | 18.97 | 228.35 | 0.4303 | 539.0 | 410.9 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -8.67 | 335.88 | 18.19 | 229.44 | 0.4079 | 895.0 | 703.4 | |
| 0.00 | 2.87 | 0.00 | 1.56 | -8.94 | 335.77 | 18.07 | 228.74 | 0.4094 | 775.0 | 729.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -8.53 | 335.71 | 18.02 | 229.43 | 0.4045 | 1123.0 | 939.5 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -5.92 | 333.57 | 15.88 | 231.16 | 0.3509 | 909.0 | 733.3 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -13.30 | 333.05 | 15.36 | 216.93 | 0.4307 | -646.0 | -511.4 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -8.89 | 332.50 | 14.81 | 223.10 | 0.3712 | 705.0 | 464.2 | |
| 0.00 | 2.15 | 0.00 | 1.14 | -8.82 | 330.35 | 12.66 | 218.75 | 0.3474 | 897.0 | 718.2 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -9.00 | 330.17 | 12.48 | 218.02 | 0.3480 | 850.0 | 637.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -8.89 | 319.67 | 1.98 | 187.10 | 0.2771 | -859.0 | -684.4 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -8.98 | 319.18 | 1.49 | 185.32 | 0.2778 | -820.0 | -609.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
