SDO HMI 2014-08-24 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.24 | 58.88 | 23.30 | 133.52 | -4.68 | 33.19 | 76.60 | 263.57 | 0.9764 | 291.2 | 260.2 | |
|
previous
or next observation for the same group /

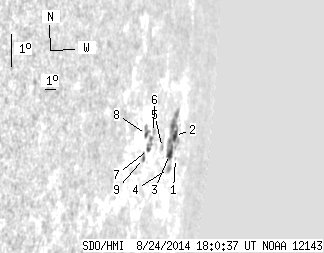

back to the solar disc SDO HMI 2014-08-24 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.70 | -5.24 | 34.74 | 78.16 | 263.23 | 0.9823 | -212.0 | -199.7 | |
| 3.68 | 35.73 | 9.12 | 86.70 | -4.48 | 34.29 | 77.70 | 263.94 | 0.9804 | 397.2 | 332.6 | |
| 3.59 | -2.00 | 8.57 | -2.00 | -5.00 | 33.77 | 77.18 | 263.33 | 0.9789 | 445.3 | 999999 | |
| 0.00 | 3.59 | 0.00 | 8.64 | -5.44 | 33.80 | 77.22 | 262.90 | 0.9793 | 125.0 | 110.2 | |
| 0.00 | 2.42 | 0.00 | 5.26 | -4.66 | 32.70 | 76.11 | 263.53 | 0.9748 | 642.0 | 581.3 | |
| 0.00 | 2.15 | 0.00 | 4.27 | -4.04 | 31.40 | 74.82 | 263.96 | 0.9692 | 442.0 | 396.7 | |
| 1.08 | 6.19 | 2.07 | 11.99 | -4.51 | 30.95 | 74.36 | 263.41 | 0.9675 | 114.6 | 249.0 | |
| 1.17 | 5.48 | 2.19 | 10.25 | -4.00 | 30.59 | 74.00 | 263.88 | 0.9656 | -250.3 | -227.3 | |
| 0.72 | 3.05 | 1.35 | 5.71 | -4.73 | 30.45 | 73.86 | 263.11 | 0.9654 | -129.6 | -109.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
