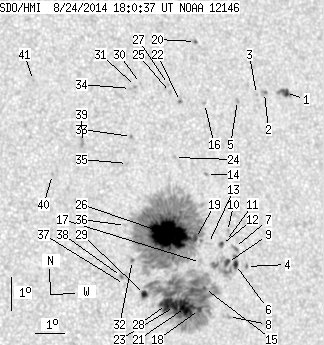

SDO HMI 2014-08-24 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.04 | 794.56 | 73.65 | 443.06 | 7.96 | 344.03 | 27.44 | 273.75 | 0.4598 | -434.2 | -319.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-24 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.04 | 9.52 | 2.35 | 5.54 | 12.64 | 348.36 | 31.78 | 282.71 | 0.5288 | -916.4 | -699.6 | |
| 0.00 | 3.14 | 0.00 | 1.82 | 12.69 | 347.60 | 31.02 | 282.98 | 0.5180 | -768.0 | -554.3 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 12.64 | 347.31 | 30.72 | 282.97 | 0.5136 | -628.0 | -608.8 | |
| 0.00 | 1.53 | 0.00 | 0.87 | 7.46 | 346.41 | 29.82 | 272.77 | 0.4956 | -689.0 | -567.9 | |
| 0.00 | 1.80 | 0.00 | 1.03 | 12.50 | 346.60 | 30.02 | 282.88 | 0.5030 | -894.0 | -704.8 | |
| 2.87 | 31.06 | 1.63 | 17.57 | 7.55 | 346.02 | 29.44 | 272.93 | 0.4899 | -901.6 | -665.1 | |
| 0.00 | 3.05 | 0.00 | 1.73 | 8.06 | 346.03 | 29.45 | 273.99 | 0.4899 | -817.0 | -590.0 | |
| 0.00 | 2.06 | 0.00 | 1.17 | 5.99 | 345.67 | 29.09 | 269.69 | 0.4855 | 650.0 | 550.1 | |
| 2.24 | -6.00 | 1.27 | -6.00 | 7.62 | 345.75 | 29.16 | 273.08 | 0.4857 | -1026.4 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.07 | 8.56 | 345.83 | 29.24 | 275.01 | 0.4868 | 250.0 | 260.5 | |
| 0.00 | 1.97 | 0.00 | 1.12 | 8.26 | 345.73 | 29.15 | 274.40 | 0.4853 | -462.0 | -433.9 | |
| 1.17 | 2.96 | 0.66 | 1.67 | 8.18 | 345.58 | 29.00 | 274.23 | 0.4831 | -798.4 | -631.2 | |
| 0.00 | 1.97 | 0.00 | 1.11 | 8.24 | 345.13 | 28.55 | 274.36 | 0.4763 | -662.0 | -531.5 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 10.33 | 345.25 | 28.67 | 278.74 | 0.4794 | 901.0 | 715.2 | |
| 1.17 | 702.14 | 0.66 | 390.92 | 6.88 | 344.89 | 28.31 | 271.49 | 0.4729 | -837.6 | -309.8 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 12.48 | 345.42 | 28.84 | 283.16 | 0.4856 | 880.0 | 569.9 | |
| 0.00 | 2.96 | 0.00 | 1.66 | 7.68 | 344.81 | 28.23 | 273.17 | 0.4714 | -800.0 | -598.0 | |
| 2.42 | -15.00 | 1.36 | -15.00 | 6.26 | 344.68 | 28.10 | 270.14 | 0.4701 | 662.0 | 999999 | |
| 1.80 | -15.00 | 1.01 | -15.00 | 8.41 | 344.69 | 28.11 | 274.75 | 0.4696 | -653.2 | 999999 | |
| 0.45 | 1.44 | 0.25 | 0.82 | 14.38 | 345.36 | 28.77 | 287.04 | 0.4896 | 603.0 | 495.5 | |
| 21.90 | -15.00 | 12.23 | -15.00 | 6.35 | 344.20 | 27.62 | 270.27 | 0.4626 | 1004.5 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 12.59 | 344.59 | 28.00 | 283.64 | 0.4735 | -897.0 | -722.2 | |
| 7.45 | -15.00 | 4.14 | -15.00 | 6.40 | 343.83 | 27.24 | 270.35 | 0.4568 | 1129.0 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 10.91 | 344.19 | 27.61 | 280.16 | 0.4642 | 810.0 | 624.5 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 12.89 | 344.27 | 27.69 | 284.36 | 0.4695 | -733.0 | -631.5 | |
| 71.81 | -15.00 | 39.93 | -15.00 | 8.59 | 343.77 | 27.19 | 275.16 | 0.4555 | -1431.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 13.13 | 344.23 | 27.65 | 284.89 | 0.4695 | -789.0 | -561.4 | |
| 10.95 | -15.00 | 6.08 | -15.00 | 6.48 | 343.56 | 26.97 | 270.48 | 0.4526 | 1017.2 | 999999 | |
| 3.41 | -15.00 | 1.88 | -15.00 | 6.82 | 342.83 | 26.24 | 271.19 | 0.4410 | 691.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 13.22 | 343.26 | 26.68 | 285.44 | 0.4553 | -584.0 | -463.7 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 13.14 | 343.08 | 26.49 | 285.33 | 0.4523 | -891.0 | -731.6 | |
| 0.36 | 2.69 | 0.20 | 1.48 | 7.87 | 342.49 | 25.90 | 273.58 | 0.4354 | -1020.2 | -703.4 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 11.63 | 342.77 | 26.19 | 282.10 | 0.4439 | -898.0 | -712.3 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 13.08 | 342.90 | 26.31 | 285.29 | 0.4495 | -849.0 | -548.9 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 10.81 | 342.56 | 25.97 | 280.33 | 0.4390 | -750.0 | -586.9 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 8.94 | 342.33 | 25.74 | 276.07 | 0.4333 | -250.0 | -192.9 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 7.16 | 342.17 | 25.58 | 271.93 | 0.4305 | 292.0 | 282.7 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 7.41 | 342.08 | 25.50 | 272.50 | 0.4291 | 633.0 | 512.3 | |
| 0.00 | 3.68 | 0.00 | 2.00 | 11.53 | 341.09 | 24.50 | 282.43 | 0.4178 | 827.0 | 755.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 10.61 | 339.99 | 23.41 | 280.54 | 0.3988 | 704.0 | 585.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 13.50 | 339.62 | 23.03 | 287.83 | 0.4013 | 796.0 | 567.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
