SDO HMI 2014-08-24 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.54 | 0.00 | 8.47 | -9.39 | 334.29 | 17.71 | 225.61 | 0.4149 | 243.6 | 374.4 | |
|
previous
or next observation for the same group /

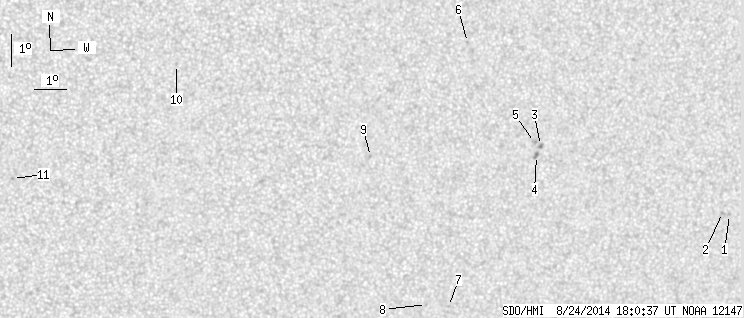

back to the solar disc SDO HMI 2014-08-24 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.68 | -11.15 | 342.39 | 25.81 | 234.94 | 0.5239 | 738.0 | 571.9 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -11.07 | 342.14 | 25.56 | 234.80 | 0.5202 | 677.0 | 558.2 | |
| 0.00 | 2.33 | 0.00 | 1.27 | -8.64 | 335.91 | 19.32 | 231.19 | 0.4216 | 830.0 | 713.7 | |
| 0.00 | 2.78 | 0.00 | 1.52 | -8.95 | 335.79 | 19.21 | 230.45 | 0.4233 | 858.0 | 745.1 | |
| 0.00 | 2.06 | 0.00 | 1.12 | -8.54 | 335.71 | 19.12 | 231.09 | 0.4181 | 933.0 | 755.6 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -5.33 | 333.43 | 16.85 | 234.14 | 0.3576 | 829.0 | 617.1 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -13.67 | 333.23 | 16.65 | 218.64 | 0.4476 | -672.0 | -561.9 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -13.58 | 332.51 | 15.93 | 217.54 | 0.4396 | -766.0 | -647.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -8.79 | 330.47 | 13.89 | 221.43 | 0.3600 | 822.0 | 623.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -5.76 | 324.36 | 7.78 | 211.47 | 0.2591 | -766.0 | -560.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -9.26 | 319.36 | 2.78 | 189.70 | 0.2855 | -803.0 | -553.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
