SDO HMI 2014-08-24 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.42 | 768.25 | 70.31 | 430.36 | 7.96 | 344.01 | 27.97 | 273.78 | 0.4679 | -356.2 | -302.5 | |
|
previous
or next observation for the same group /

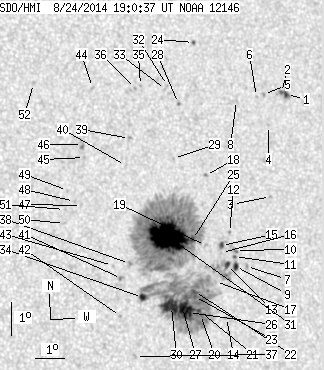

back to the solar disc SDO HMI 2014-08-24 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.24 | 7.99 | 1.32 | 4.68 | 12.63 | 348.47 | 32.44 | 282.54 | 0.5383 | -914.3 | -692.6 | |
| 0.99 | -1.00 | 0.58 | -1.00 | 12.70 | 348.30 | 32.27 | 282.71 | 0.5359 | -908.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 9.58 | 347.51 | 31.48 | 276.92 | 0.5207 | 661.0 | 504.2 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 11.73 | 347.69 | 31.66 | 281.02 | 0.5256 | -650.0 | -531.7 | |
| 0.00 | 1.80 | 0.00 | 1.04 | 12.69 | 347.63 | 31.60 | 282.83 | 0.5264 | -731.0 | -625.4 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 12.64 | 347.37 | 31.34 | 282.81 | 0.5225 | -718.0 | -622.9 | |
| 0.00 | 1.80 | 0.00 | 1.03 | 7.52 | 346.46 | 30.43 | 272.90 | 0.5048 | -716.0 | -587.2 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 12.56 | 346.64 | 30.61 | 282.84 | 0.5117 | -751.0 | -556.3 | |
| 2.78 | 4.49 | 1.59 | 2.56 | 7.54 | 346.07 | 30.04 | 272.94 | 0.4989 | -839.5 | -613.5 | |
| 0.00 | 2.15 | 0.00 | 1.23 | 8.03 | 346.11 | 30.08 | 273.91 | 0.4994 | -712.0 | -590.7 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 7.85 | 346.06 | 30.03 | 273.55 | 0.4987 | -691.0 | -634.1 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 8.59 | 345.95 | 29.91 | 275.04 | 0.4970 | 457.0 | 413.6 | |
| 2.33 | 25.49 | 1.33 | 14.48 | 7.62 | 345.80 | 29.76 | 273.09 | 0.4947 | -985.4 | -638.4 | |
| 0.00 | 2.06 | 0.00 | 1.17 | 6.02 | 345.65 | 29.62 | 269.82 | 0.4935 | 630.0 | 495.4 | |
| 1.80 | 3.95 | 1.02 | 2.25 | 8.21 | 345.63 | 29.60 | 274.28 | 0.4922 | -863.0 | -586.7 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 8.00 | 345.61 | 29.58 | 273.85 | 0.4919 | -585.0 | -464.1 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 7.13 | 345.34 | 29.31 | 272.07 | 0.4880 | -427.0 | -345.4 | |
| 0.00 | 1.53 | 0.00 | 0.87 | 10.36 | 345.27 | 29.24 | 278.71 | 0.4880 | 689.0 | 608.0 | |
| 0.00 | 1.80 | 0.00 | 1.01 | 8.24 | 345.07 | 29.04 | 274.36 | 0.4837 | -657.0 | -481.7 | |
| 0.72 | 673.83 | 0.41 | 377.06 | 6.17 | 344.75 | 28.72 | 270.01 | 0.4796 | 586.0 | -311.7 | |
| 1.62 | -20.00 | 0.91 | -20.00 | 6.29 | 344.69 | 28.66 | 270.27 | 0.4786 | 635.2 | 999999 | |
| 2.33 | -20.00 | 1.31 | -20.00 | 6.88 | 344.59 | 28.55 | 271.48 | 0.4766 | -207.4 | 999999 | |
| 1.44 | -20.00 | 0.81 | -20.00 | 6.72 | 344.58 | 28.54 | 271.16 | 0.4766 | 135.0 | 999999 | |
| 0.72 | 1.71 | 0.41 | 0.97 | 14.42 | 345.35 | 29.32 | 286.89 | 0.4976 | 602.8 | 517.5 | |
| 1.71 | -20.00 | 0.96 | -20.00 | 8.45 | 344.63 | 28.60 | 274.80 | 0.4771 | -668.5 | 999999 | |
| 9.16 | -20.00 | 5.14 | -20.00 | 6.25 | 344.34 | 28.31 | 270.14 | 0.4733 | 1032.2 | 999999 | |
| 7.81 | -20.00 | 4.38 | -20.00 | 6.42 | 344.14 | 28.11 | 270.47 | 0.4701 | 1026.4 | 999999 | |
| 0.36 | 1.44 | 0.20 | 0.81 | 12.60 | 344.57 | 28.54 | 283.47 | 0.4814 | -803.8 | -593.9 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 10.94 | 344.20 | 28.17 | 280.11 | 0.4727 | 762.0 | 554.8 | |
| 16.61 | -20.00 | 9.28 | -20.00 | 6.47 | 343.76 | 27.73 | 270.54 | 0.4643 | 1058.1 | 999999 | |
| 68.85 | -20.00 | 38.47 | -20.00 | 8.59 | 343.78 | 27.74 | 275.14 | 0.4640 | -1435.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 13.17 | 344.25 | 28.22 | 284.75 | 0.4780 | -774.0 | -619.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 13.05 | 344.16 | 28.13 | 284.54 | 0.4765 | -781.0 | -619.6 | |
| 3.95 | -20.00 | 2.19 | -20.00 | 6.80 | 342.79 | 26.75 | 271.17 | 0.4490 | 715.8 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 13.22 | 343.31 | 27.27 | 285.21 | 0.4642 | -681.0 | -552.3 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 13.14 | 343.12 | 27.09 | 285.10 | 0.4612 | -816.0 | -653.9 | |
| 0.00 | 1.88 | 0.00 | 1.04 | 5.02 | 342.45 | 26.42 | 267.15 | 0.4457 | 843.0 | 677.0 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 7.85 | 342.41 | 26.38 | 273.53 | 0.4428 | -819.0 | -764.4 | |
| 0.00 | 1.88 | 0.00 | 1.05 | 11.63 | 342.74 | 26.71 | 281.96 | 0.4519 | -918.0 | -630.8 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 10.82 | 342.52 | 26.49 | 280.21 | 0.4470 | -314.0 | -372.8 | |
| 0.00 | 2.24 | 0.00 | 1.24 | 7.41 | 342.11 | 26.08 | 272.52 | 0.4381 | 512.0 | 288.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 6.26 | 342.01 | 25.97 | 269.88 | 0.4372 | 712.0 | 608.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 7.82 | 341.83 | 25.80 | 273.46 | 0.4337 | 493.0 | 395.9 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 13.25 | 341.64 | 25.61 | 285.95 | 0.4394 | 547.0 | 511.0 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 11.14 | 341.14 | 25.11 | 281.30 | 0.4264 | 697.0 | 518.6 | |
| 0.00 | 3.68 | 0.00 | 2.01 | 11.54 | 341.11 | 25.08 | 282.24 | 0.4268 | 720.0 | 750.0 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 9.69 | 340.92 | 24.88 | 277.94 | 0.4206 | 592.0 | 343.9 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 9.82 | 340.69 | 24.66 | 278.30 | 0.4172 | 810.0 | 635.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 10.17 | 340.48 | 24.45 | 279.17 | 0.4144 | 824.0 | 666.7 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 9.18 | 340.30 | 24.27 | 276.79 | 0.4104 | 835.0 | 637.4 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 9.60 | 340.33 | 24.30 | 277.82 | 0.4113 | 652.0 | 558.2 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 13.47 | 339.64 | 23.61 | 287.44 | 0.4100 | 550.0 | 523.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
