SDO HMI 2014-08-24 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.68 | 0.00 | 12.01 | -9.79 | 334.45 | 20.07 | 229.45 | 0.4462 | 375.4 | 293.9 | |
|
previous
or next observation for the same group /

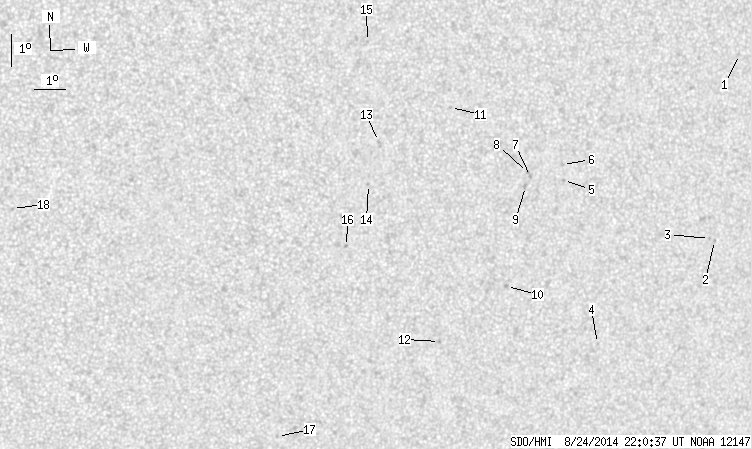

back to the solar disc SDO HMI 2014-08-24 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.31 | -5.26 | 342.75 | 28.38 | 247.27 | 0.5152 | 609.0 | 464.0 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -11.07 | 342.33 | 27.95 | 237.18 | 0.5495 | 548.0 | 482.8 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -11.00 | 342.14 | 27.77 | 237.12 | 0.5467 | 700.0 | 611.3 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -14.16 | 338.61 | 24.24 | 228.58 | 0.5328 | 408.0 | 449.7 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -8.88 | 337.00 | 22.62 | 235.14 | 0.4651 | 814.0 | 635.4 | |
| 0.00 | 1.89 | 0.00 | 1.05 | -8.37 | 336.93 | 22.56 | 235.97 | 0.4599 | 667.0 | 442.0 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -8.70 | 335.89 | 21.52 | 234.08 | 0.4496 | 873.0 | 695.9 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -8.57 | 335.79 | 21.41 | 234.18 | 0.4471 | 923.0 | 822.9 | |
| 0.00 | 2.42 | 0.00 | 1.34 | -9.01 | 335.75 | 21.37 | 233.34 | 0.4506 | 670.0 | 579.0 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -12.16 | 335.35 | 20.97 | 227.48 | 0.4766 | -807.0 | -709.4 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -6.42 | 333.18 | 18.80 | 234.78 | 0.3937 | 754.0 | 547.6 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -13.84 | 333.27 | 18.89 | 221.94 | 0.4723 | -747.0 | -624.3 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -7.39 | 330.91 | 16.53 | 229.15 | 0.3747 | 644.0 | 466.4 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -8.73 | 330.64 | 16.27 | 226.07 | 0.3861 | 748.0 | 560.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -4.27 | 330.47 | 16.09 | 235.34 | 0.3375 | 661.0 | 496.9 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -10.67 | 330.03 | 15.66 | 221.53 | 0.4018 | 806.0 | 676.4 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -16.76 | 328.19 | 13.82 | 209.75 | 0.4626 | -786.0 | -611.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -9.21 | 319.52 | 5.15 | 197.61 | 0.2942 | -728.0 | -547.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
