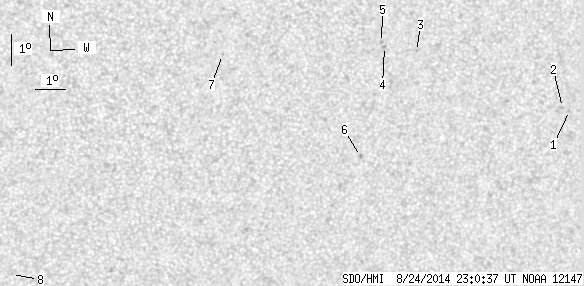

SDO HMI 2014-08-24 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.92 | 0.00 | 4.43 | -10.38 | 335.46 | 21.64 | 230.72 | 0.4708 | 349.2 | 262.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-24 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.32 | -11.07 | 342.41 | 28.58 | 237.76 | 0.5573 | 537.0 | 465.7 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -10.96 | 342.15 | 28.33 | 237.70 | 0.5533 | 632.0 | 544.3 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -8.90 | 336.98 | 23.16 | 235.73 | 0.4721 | 687.0 | 642.7 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -8.69 | 335.90 | 22.08 | 234.81 | 0.4566 | 779.0 | 663.3 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -8.56 | 335.80 | 21.97 | 234.91 | 0.4541 | 918.0 | 715.0 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -12.15 | 335.36 | 21.54 | 228.25 | 0.4830 | -856.0 | -755.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -8.71 | 330.63 | 16.81 | 227.04 | 0.3923 | 736.0 | 602.9 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -15.57 | 324.24 | 10.42 | 204.49 | 0.4220 | -639.0 | -462.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
