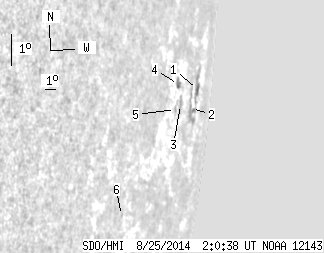

SDO HMI 2014-08-25 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.96 | 41.77 | 13.09 | 138.61 | -4.60 | 32.92 | 80.75 | 264.23 | 0.9891 | 108.0 | 269.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-25 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.25 | 13.20 | 8.72 | 50.75 | -4.45 | 34.21 | 82.04 | 264.56 | 0.9924 | 279.8 | 281.0 | |
| 0.00 | 15.36 | 0.00 | 53.27 | -4.91 | 33.19 | 81.02 | 263.97 | 0.9902 | 500.0 | 344.2 | |
| 0.00 | 6.56 | 0.00 | 17.93 | -4.52 | 31.03 | 78.86 | 264.05 | 0.9842 | 379.0 | 317.0 | |
| 1.71 | 4.58 | 4.37 | 11.74 | -3.84 | 30.46 | 78.29 | 264.66 | 0.9821 | -268.8 | -190.5 | |
| 0.00 | 1.62 | 0.00 | 4.13 | -4.58 | 30.27 | 78.10 | 263.88 | 0.9818 | -217.0 | -133.4 | |
| 0.00 | 0.45 | 0.00 | 0.79 | -7.18 | 24.68 | 72.51 | 260.36 | 0.9611 | -82.0 | -76.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
