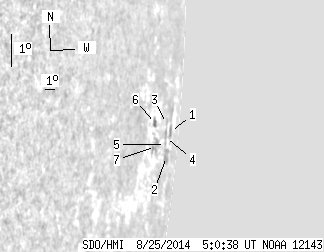

SDO HMI 2014-08-25 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.17 | 30.54 | 3.48 | 119.76 | -4.62 | 32.61 | 82.08 | 264.40 | 0.9923 | 139.8 | 243.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-25 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.13 | 0.00 | 20.42 | -4.49 | 34.13 | 83.61 | 264.73 | 0.9954 | 189.0 | 194.0 | |
| 0.00 | 7.73 | 0.00 | 35.03 | -5.19 | 33.56 | 83.04 | 263.96 | 0.9946 | 253.0 | 267.9 | |
| 0.00 | 2.96 | 0.00 | 11.93 | -4.09 | 32.84 | 82.32 | 264.97 | 0.9929 | 465.0 | 353.1 | |
| 0.00 | 2.52 | 0.00 | 10.30 | -4.52 | 32.86 | 82.33 | 264.54 | 0.9930 | 439.0 | 396.5 | |
| 0.00 | 1.08 | 0.00 | 4.44 | -4.75 | 33.00 | 82.48 | 264.32 | 0.9934 | 488.0 | 456.5 | |
| 1.17 | 3.41 | 3.48 | 10.15 | -3.80 | 30.47 | 79.94 | 264.94 | 0.9871 | -236.6 | -192.8 | |
| 0.00 | 8.71 | 0.00 | 27.49 | -4.54 | 30.79 | 80.26 | 264.23 | 0.9882 | 315.0 | 215.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
