SDO HMI 2014-08-25 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.87 | 0.00 | 7.26 | -9.55 | 333.56 | 23.03 | 233.92 | 0.4778 | 384.2 | 315.2 | |
|
previous
or next observation for the same group /

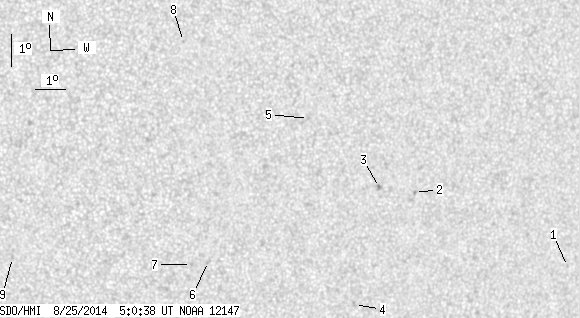

back to the solar disc SDO HMI 2014-08-25 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.50 | -11.60 | 342.84 | 32.31 | 240.10 | 0.6063 | 131.0 | 180.7 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -8.90 | 337.14 | 26.61 | 239.39 | 0.5162 | 822.0 | 705.7 | |
| 0.00 | 2.52 | 0.00 | 1.44 | -8.67 | 335.92 | 25.40 | 238.57 | 0.4989 | 889.0 | 704.7 | |
| 0.00 | 1.89 | 0.00 | 1.10 | -12.36 | 335.39 | 24.87 | 231.99 | 0.5234 | -758.0 | -656.9 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -6.38 | 333.41 | 22.88 | 240.07 | 0.4478 | 874.0 | 596.9 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -10.73 | 330.36 | 19.84 | 228.20 | 0.4491 | 617.0 | 561.9 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -10.80 | 329.81 | 19.29 | 227.27 | 0.4435 | 872.0 | 723.2 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -3.80 | 329.25 | 18.73 | 240.44 | 0.3698 | 798.0 | 594.5 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -10.37 | 324.03 | 13.51 | 217.83 | 0.3762 | -787.0 | -586.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
