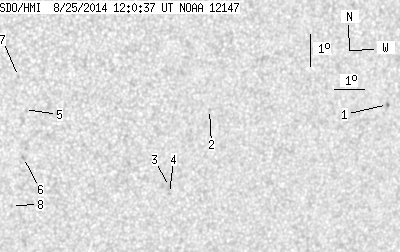

SDO HMI 2014-08-25 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 9.53 | 0.22 | 5.38 | -9.95 | 329.62 | 22.93 | 233.07 | 0.4797 | 100.4 | 177.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-25 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 1.62 | 0.22 | 0.97 | -8.93 | 337.32 | 30.63 | 242.84 | 0.5679 | 798.8 | 640.7 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -8.72 | 331.13 | 24.45 | 237.49 | 0.4870 | 690.0 | 543.6 | |
| 0.00 | 2.24 | 0.00 | 1.28 | -11.10 | 329.97 | 23.28 | 232.15 | 0.4932 | 772.0 | 589.7 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -11.32 | 329.99 | 23.30 | 231.81 | 0.4955 | 734.0 | 592.4 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -8.43 | 325.02 | 18.33 | 230.06 | 0.4075 | -150.0 | -291.5 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -9.95 | 325.07 | 18.38 | 227.37 | 0.4239 | -784.0 | -668.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -7.39 | 324.78 | 18.09 | 231.72 | 0.3940 | -673.0 | -424.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -11.46 | 324.77 | 18.08 | 224.34 | 0.4371 | -738.0 | -570.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
