SDO HMI 2014-08-25 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.94 | 0.00 | 7.51 | -9.93 | 330.53 | 26.06 | 236.51 | 0.5172 | 142.4 | -20.6 | |
|
previous
or next observation for the same group /

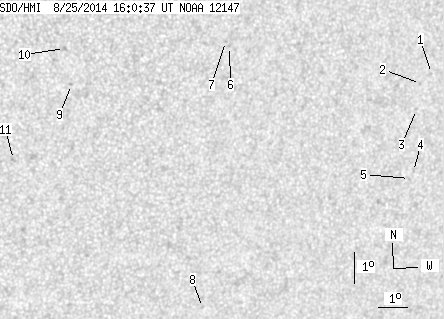

back to the solar disc SDO HMI 2014-08-25 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.28 | -8.97 | 337.57 | 33.09 | 244.60 | 0.5992 | 649.0 | 572.4 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -9.26 | 337.19 | 32.71 | 243.89 | 0.5962 | 644.0 | 535.0 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -10.07 | 337.14 | 32.66 | 242.62 | 0.6005 | 557.0 | 345.3 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -12.05 | 337.27 | 32.79 | 239.83 | 0.6149 | 355.0 | 342.3 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -12.27 | 337.16 | 32.68 | 239.43 | 0.6150 | 563.0 | 474.1 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -7.66 | 330.34 | 25.86 | 240.80 | 0.4972 | 765.0 | 589.8 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -7.50 | 330.19 | 25.71 | 240.95 | 0.4941 | 741.0 | 662.1 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -16.01 | 330.25 | 25.77 | 227.74 | 0.5668 | -344.0 | -395.5 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -8.59 | 325.12 | 20.65 | 233.12 | 0.4377 | -795.0 | -599.9 | |
| 0.00 | 2.15 | 0.00 | 1.18 | -7.45 | 324.84 | 20.36 | 234.89 | 0.4234 | -807.0 | -711.2 | |
| 0.00 | 1.88 | 0.00 | 1.04 | -10.88 | 323.37 | 18.89 | 226.55 | 0.4398 | -762.0 | -642.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
