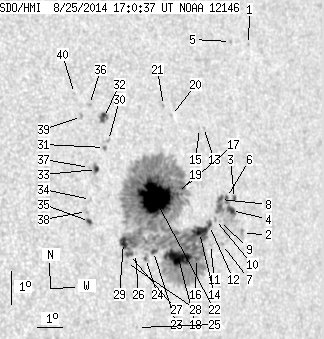

SDO HMI 2014-08-25 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.44 | 771.26 | 86.10 | 497.51 | 7.81 | 344.11 | 40.19 | 273.78 | 0.6430 | -366.6 | -295.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-25 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.50 | 12.72 | 348.35 | 44.42 | 281.03 | 0.6980 | -412.0 | -372.8 | |
| 0.00 | 2.87 | 0.00 | 1.94 | 7.05 | 347.13 | 43.21 | 272.79 | 0.6826 | -638.0 | -571.7 | |
| 1.17 | 2.60 | 0.79 | 1.75 | 8.13 | 346.93 | 43.01 | 274.37 | 0.6795 | -370.1 | -215.9 | |
| 4.40 | 42.44 | 2.95 | 28.40 | 7.78 | 346.76 | 42.83 | 273.85 | 0.6774 | -722.2 | -557.3 | |
| 0.00 | 1.26 | 0.00 | 0.86 | 12.88 | 347.60 | 43.68 | 281.32 | 0.6889 | -596.0 | -513.1 | |
| 1.08 | -4.00 | 0.72 | -4.00 | 8.19 | 346.61 | 42.68 | 274.45 | 0.6753 | -515.2 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.08 | 6.79 | 346.27 | 42.34 | 272.34 | 0.6717 | 274.0 | 200.6 | |
| 2.15 | -4.00 | 1.44 | -4.00 | 8.15 | 346.35 | 42.42 | 274.38 | 0.6720 | -812.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.78 | 7.49 | 346.22 | 42.30 | 273.39 | 0.6707 | -333.0 | -403.6 | |
| 0.00 | 1.44 | 0.00 | 0.95 | 7.56 | 346.07 | 42.14 | 273.49 | 0.6687 | -644.0 | -585.9 | |
| 0.00 | 1.53 | 0.00 | 1.01 | 6.83 | 345.78 | 41.85 | 272.36 | 0.6653 | 306.0 | 140.8 | |
| 1.44 | 681.53 | 0.95 | 438.86 | 7.40 | 345.80 | 41.87 | 273.23 | 0.6653 | -872.6 | -303.0 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 10.38 | 345.98 | 42.05 | 277.71 | 0.6671 | 692.0 | 615.0 | |
| 12.11 | -12.00 | 7.97 | -12.00 | 7.23 | 345.37 | 41.44 | 272.94 | 0.6598 | -997.8 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.36 | 10.36 | 345.81 | 41.88 | 277.69 | 0.6650 | 741.0 | 652.3 | |
| 1.62 | -12.00 | 1.06 | -12.00 | 6.45 | 345.16 | 41.24 | 271.74 | 0.6576 | 379.9 | 999999 | |
| 1.70 | -12.00 | 1.11 | -12.00 | 8.61 | 344.85 | 40.92 | 275.03 | 0.6524 | -198.8 | 999999 | |
| 25.66 | -12.00 | 16.65 | -12.00 | 6.54 | 344.44 | 40.52 | 271.82 | 0.6481 | 902.0 | 999999 | |
| 0.90 | -12.00 | 0.58 | -12.00 | 8.47 | 344.63 | 40.70 | 274.82 | 0.6495 | -421.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 10.84 | 344.73 | 40.81 | 278.47 | 0.6512 | -480.0 | -340.8 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 11.17 | 344.46 | 40.54 | 278.99 | 0.6478 | 694.0 | 593.4 | |
| 62.28 | -12.00 | 39.95 | -12.00 | 8.43 | 343.69 | 39.77 | 274.72 | 0.6372 | -1302.8 | 999999 | |
| 1.88 | -12.00 | 1.21 | -12.00 | 6.80 | 343.47 | 39.55 | 272.14 | 0.6349 | 334.0 | 999999 | |
| 0.72 | -12.00 | 0.46 | -12.00 | 6.61 | 343.14 | 39.21 | 271.82 | 0.6305 | 390.0 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 4.55 | 342.66 | 38.73 | 268.48 | 0.6261 | 701.0 | 614.5 | |
| 0.00 | 1.88 | 0.00 | 1.19 | 6.79 | 342.76 | 38.83 | 272.08 | 0.6253 | -80.0 | -27.0 | |
| 2.51 | -12.00 | 1.59 | -12.00 | 6.78 | 342.52 | 38.60 | 272.04 | 0.6221 | 628.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 6.55 | 342.38 | 38.46 | 271.66 | 0.6204 | 695.0 | 595.4 | |
| 6.01 | -12.00 | 3.79 | -12.00 | 7.16 | 342.33 | 38.40 | 272.64 | 0.6192 | 672.1 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.07 | 10.28 | 342.12 | 38.20 | 277.71 | 0.6162 | -437.0 | -294.2 | |
| 0.00 | 1.79 | 0.00 | 1.12 | 10.08 | 341.94 | 38.01 | 277.40 | 0.6136 | -672.0 | -589.8 | |
| 3.95 | 6.91 | 2.48 | 4.33 | 10.99 | 342.03 | 38.11 | 278.87 | 0.6154 | 819.3 | 615.2 | |
| 2.24 | 5.11 | 1.40 | 3.18 | 9.44 | 341.54 | 37.61 | 276.36 | 0.6080 | -448.4 | -208.9 | |
| 0.00 | 1.97 | 0.00 | 1.22 | 8.56 | 341.20 | 37.27 | 274.89 | 0.6033 | 251.0 | 181.3 | |
| 1.62 | 2.60 | 1.00 | 1.61 | 7.89 | 341.09 | 37.16 | 273.78 | 0.6018 | 814.2 | 698.7 | |
| 0.00 | 1.70 | 0.00 | 1.06 | 11.43 | 341.55 | 37.63 | 279.62 | 0.6092 | 620.0 | 530.2 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 9.52 | 341.28 | 37.35 | 276.50 | 0.6044 | 556.0 | 407.8 | |
| 0.00 | 2.60 | 0.00 | 1.61 | 8.21 | 341.00 | 37.08 | 274.30 | 0.6006 | 493.0 | 382.1 | |
| 0.00 | 1.70 | 0.00 | 1.06 | 11.09 | 341.19 | 37.26 | 279.10 | 0.6039 | 760.0 | 664.7 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 11.80 | 341.03 | 37.10 | 280.30 | 0.6023 | 613.0 | 518.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
