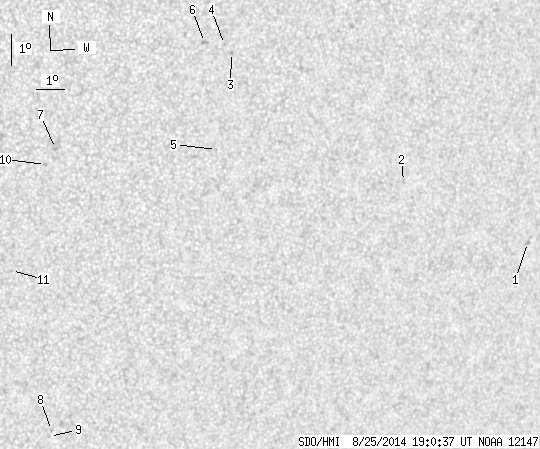

SDO HMI 2014-08-25 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.81 | 0.00 | 8.68 | -8.57 | 330.57 | 27.75 | 240.65 | 0.5302 | 53.7 | 114.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-25 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 1.10 | -11.46 | 342.28 | 39.46 | 245.03 | 0.6894 | 625.0 | 528.3 | |
| 0.00 | 1.61 | 0.00 | 1.01 | -9.14 | 337.18 | 34.36 | 245.18 | 0.6161 | 640.0 | 417.1 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -4.69 | 330.70 | 27.88 | 247.90 | 0.5051 | 623.0 | 540.8 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -4.43 | 330.45 | 27.63 | 248.19 | 0.5000 | 554.0 | 462.5 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -7.68 | 330.35 | 27.53 | 242.30 | 0.5195 | 621.0 | 491.6 | |
| 0.00 | 2.60 | 0.00 | 1.48 | -4.33 | 329.76 | 26.94 | 247.85 | 0.4898 | 747.0 | 616.6 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -7.36 | 324.91 | 22.09 | 237.25 | 0.4452 | -714.0 | -598.5 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -16.42 | 325.55 | 22.73 | 223.62 | 0.5395 | -590.0 | -517.1 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -16.61 | 325.51 | 22.69 | 223.30 | 0.5411 | -716.0 | -623.0 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -7.84 | 324.60 | 21.78 | 235.96 | 0.4455 | -827.0 | -622.0 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -11.15 | 323.69 | 20.87 | 228.96 | 0.4654 | -372.0 | -406.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
