SDO HMI 2014-08-25 20:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.87 | 0.00 | 6.68 | -10.08 | 333.79 | 31.52 | 241.63 | 0.5868 | 213.1 | 284.5 | |
|
previous
or next observation for the same group /

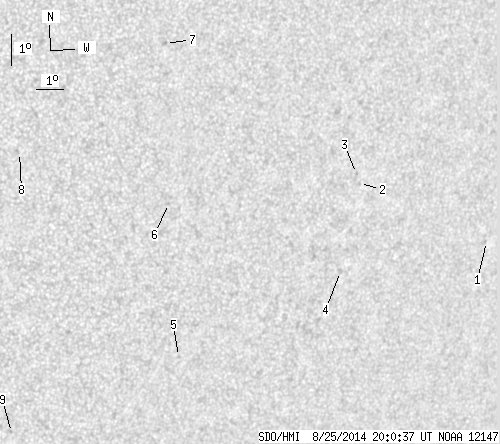

back to the solar disc SDO HMI 2014-08-25 20:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.56 | -11.42 | 342.41 | 40.14 | 245.46 | 0.6970 | 553.0 | 487.9 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -9.18 | 337.15 | 34.88 | 245.47 | 0.6228 | 576.0 | 526.4 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -8.85 | 337.00 | 34.73 | 245.85 | 0.6192 | 510.0 | 485.8 | |
| 0.00 | 2.51 | 0.00 | 1.61 | -11.94 | 336.79 | 34.52 | 241.25 | 0.6347 | 594.0 | 431.6 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -14.29 | 331.19 | 28.92 | 233.32 | 0.5865 | -517.0 | -483.4 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -9.34 | 330.28 | 28.01 | 239.95 | 0.5374 | 618.0 | 487.8 | |
| 0.00 | 1.88 | 0.00 | 1.08 | -4.33 | 329.86 | 27.59 | 248.34 | 0.4989 | 750.0 | 612.1 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -7.45 | 325.09 | 22.82 | 237.93 | 0.4557 | -442.0 | -463.3 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -16.45 | 325.62 | 23.36 | 224.34 | 0.5461 | -724.0 | -600.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
