SDO HMI 2014-08-25 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.59 | 731.03 | 81.88 | 491.92 | 7.89 | 344.08 | 42.92 | 274.00 | 0.6785 | -359.8 | -301.2 | |
|
previous
or next observation for the same group /

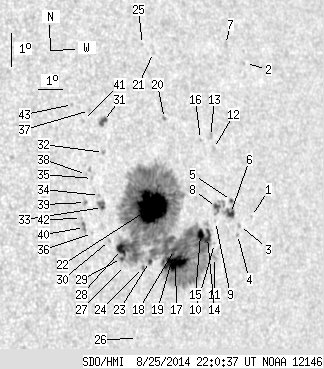

back to the solar disc SDO HMI 2014-08-25 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.52 | 7.73 | 347.92 | 46.76 | 273.96 | 0.7259 | -353.0 | -333.4 | |
| 0.00 | 0.45 | 0.00 | 0.33 | 12.35 | 348.54 | 47.38 | 280.33 | 0.7330 | -396.0 | -436.2 | |
| 0.00 | 1.79 | 0.00 | 1.27 | 7.50 | 347.36 | 46.20 | 273.62 | 0.7193 | -593.0 | -524.3 | |
| 0.00 | 1.26 | 0.00 | 0.89 | 7.24 | 347.23 | 46.07 | 273.24 | 0.7179 | -406.0 | -379.6 | |
| 0.81 | 1.79 | 0.57 | 1.27 | 8.29 | 347.12 | 45.96 | 274.70 | 0.7160 | -382.6 | -227.7 | |
| 4.49 | 10.05 | 3.17 | 7.09 | 7.90 | 347.02 | 45.85 | 274.15 | 0.7149 | -604.0 | -426.9 | |
| 0.00 | 2.33 | 0.00 | 1.67 | 13.00 | 347.79 | 46.63 | 281.26 | 0.7245 | -635.0 | -421.8 | |
| 2.78 | 9.96 | 1.95 | 6.97 | 8.13 | 346.43 | 45.27 | 274.45 | 0.7078 | -801.1 | -562.6 | |
| 0.00 | 0.54 | 0.00 | 0.38 | 7.72 | 346.33 | 45.17 | 273.86 | 0.7067 | -611.0 | -489.7 | |
| 0.00 | 0.90 | 0.00 | 0.63 | 7.06 | 346.20 | 45.04 | 272.91 | 0.7055 | 145.0 | 61.2 | |
| 0.00 | 2.51 | 0.00 | 1.75 | 6.64 | 346.15 | 44.99 | 272.31 | 0.7051 | -10.0 | -62.4 | |
| 0.00 | 2.33 | 0.00 | 1.63 | 9.92 | 346.59 | 45.43 | 276.99 | 0.7093 | 465.0 | 472.0 | |
| 0.00 | 2.78 | 0.00 | 1.95 | 10.29 | 346.53 | 45.37 | 277.52 | 0.7086 | 502.0 | 446.5 | |
| 5.56 | 658.34 | 3.86 | 442.54 | 7.26 | 345.92 | 44.76 | 273.19 | 0.7019 | -816.5 | -323.5 | |
| 5.29 | -14.00 | 3.65 | -14.00 | 7.38 | 345.64 | 44.48 | 273.34 | 0.6983 | -1027.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.69 | 10.24 | 346.08 | 44.92 | 277.44 | 0.7031 | 548.0 | 512.4 | |
| 22.88 | -14.00 | 15.50 | -14.00 | 6.63 | 344.48 | 43.32 | 272.16 | 0.6843 | 856.4 | 999999 | |
| 1.88 | -14.00 | 1.28 | -14.00 | 7.02 | 344.49 | 43.33 | 272.74 | 0.6841 | -428.2 | 999999 | |
| 0.27 | -14.00 | 0.18 | -14.00 | 6.88 | 344.43 | 43.27 | 272.52 | 0.6834 | 197.7 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.16 | 11.00 | 344.67 | 43.51 | 278.58 | 0.6858 | -642.0 | -497.2 | |
| 0.00 | 1.35 | 0.00 | 0.91 | 13.03 | 344.61 | 43.45 | 281.54 | 0.6862 | -156.0 | -213.5 | |
| 63.71 | -14.00 | 42.60 | -14.00 | 8.40 | 343.74 | 42.58 | 274.73 | 0.6739 | -1156.2 | 999999 | |
| 1.44 | -14.00 | 0.96 | -14.00 | 6.75 | 343.41 | 42.25 | 272.25 | 0.6705 | 188.2 | 999999 | |
| 0.45 | 2.06 | 0.30 | 1.37 | 6.59 | 343.15 | 41.99 | 271.99 | 0.6672 | 493.4 | 394.9 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 13.31 | 344.20 | 43.04 | 281.99 | 0.6813 | -602.0 | -474.2 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 4.46 | 342.71 | 41.55 | 268.75 | 0.6638 | 429.0 | 401.0 | |
| 0.00 | 0.36 | 0.00 | 0.24 | 6.71 | 342.38 | 41.22 | 272.11 | 0.6572 | 556.0 | 554.2 | |
| 6.73 | -14.00 | 4.41 | -14.00 | 7.20 | 342.31 | 41.15 | 272.86 | 0.6560 | 552.4 | 999999 | |
| 1.08 | -14.00 | 0.70 | -14.00 | 6.93 | 342.28 | 41.12 | 272.44 | 0.6558 | 797.5 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.99 | 7.51 | 341.86 | 40.70 | 273.31 | 0.6499 | -696.0 | -560.9 | |
| 3.05 | 5.38 | 1.99 | 3.51 | 11.12 | 342.14 | 40.98 | 278.86 | 0.6535 | 800.2 | 615.7 | |
| 0.00 | 1.88 | 0.00 | 1.23 | 10.19 | 341.98 | 40.82 | 277.43 | 0.6511 | -667.0 | -474.8 | |
| 1.17 | 5.65 | 0.76 | 3.66 | 8.53 | 341.70 | 40.54 | 274.88 | 0.6475 | -853.3 | -702.1 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 8.90 | 341.63 | 40.47 | 275.45 | 0.6464 | -463.0 | -388.6 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 9.44 | 341.42 | 40.26 | 276.28 | 0.6437 | 532.0 | 452.8 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 7.78 | 341.21 | 40.05 | 273.69 | 0.6411 | 454.0 | 310.2 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 11.50 | 341.63 | 40.47 | 279.48 | 0.6471 | 563.0 | 498.7 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 9.58 | 341.20 | 40.04 | 276.50 | 0.6408 | 529.0 | 429.6 | |
| 0.00 | 1.70 | 0.00 | 1.09 | 8.74 | 341.05 | 39.89 | 275.18 | 0.6387 | 687.0 | 502.5 | |
| 0.00 | 3.68 | 0.00 | 2.36 | 7.99 | 340.91 | 39.75 | 274.00 | 0.6371 | 705.0 | 584.7 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 11.22 | 341.34 | 40.18 | 279.06 | 0.6431 | 757.0 | 558.2 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 8.27 | 340.83 | 39.67 | 274.44 | 0.6359 | 564.0 | 515.7 | |
| 0.00 | 1.17 | 0.00 | 0.75 | 11.73 | 340.98 | 39.82 | 279.89 | 0.6387 | 669.0 | 471.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
