SDO HMI 2014-08-26 00:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.21 | 701.23 | 85.05 | 480.39 | 7.82 | 344.02 | 43.97 | 273.95 | 0.6917 | -378.0 | -280.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-26 00:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

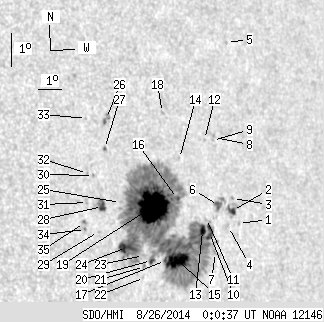

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.65 | 7.53 | 347.34 | 47.28 | 273.72 | 0.7322 | -471.0 | -456.7 | |
| 3.50 | 9.42 | 2.53 | 6.80 | 7.95 | 347.13 | 47.07 | 274.28 | 0.7295 | -556.4 | -139.6 | |
| 0.00 | 0.99 | 0.00 | 0.71 | 8.31 | 347.19 | 47.13 | 274.78 | 0.7300 | -398.0 | -329.2 | |
| 0.00 | 1.17 | 0.00 | 0.84 | 7.48 | 346.88 | 46.83 | 273.62 | 0.7268 | -626.0 | -593.7 | |
| 0.00 | 0.99 | 0.00 | 0.72 | 13.02 | 347.89 | 47.84 | 281.21 | 0.7385 | -552.0 | -492.1 | |
| 2.87 | 8.88 | 2.05 | 6.35 | 8.16 | 346.54 | 46.48 | 274.53 | 0.7223 | -765.4 | -510.5 | |
| 0.00 | 2.33 | 0.00 | 1.66 | 6.75 | 346.21 | 46.15 | 272.56 | 0.7192 | 201.0 | 18.1 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 10.22 | 346.71 | 46.66 | 277.40 | 0.7240 | 367.0 | 347.2 | |
| 0.00 | 0.72 | 0.00 | 0.51 | 10.13 | 346.61 | 46.55 | 277.28 | 0.7228 | 537.0 | 485.5 | |
| 6.10 | 643.03 | 4.32 | 440.33 | 7.38 | 346.02 | 45.97 | 273.42 | 0.7166 | -774.0 | -300.3 | |
| 0.00 | 0.63 | 0.00 | 0.44 | 7.81 | 345.95 | 45.89 | 274.02 | 0.7155 | -512.0 | -521.0 | |
| 0.00 | 0.90 | 0.00 | 0.64 | 10.20 | 346.26 | 46.20 | 277.37 | 0.7186 | 644.0 | 539.7 | |
| 4.67 | -10.00 | 3.29 | -10.00 | 7.46 | 345.73 | 45.67 | 273.52 | 0.7129 | -976.3 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.44 | 9.72 | 345.07 | 45.01 | 276.69 | 0.7042 | -375.0 | -355.3 | |
| 24.50 | -10.00 | 16.92 | -10.00 | 6.65 | 344.54 | 44.48 | 272.29 | 0.6988 | 764.2 | 999999 | |
| 1.53 | -10.00 | 1.06 | -10.00 | 8.52 | 344.79 | 44.73 | 274.98 | 0.7010 | -181.5 | 999999 | |
| 0.27 | -10.00 | 0.18 | -10.00 | 6.70 | 344.03 | 43.97 | 272.31 | 0.6925 | 778.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.74 | 11.17 | 344.60 | 44.54 | 278.77 | 0.6986 | -598.0 | -448.2 | |
| 62.82 | -10.00 | 42.74 | -10.00 | 8.37 | 343.69 | 43.64 | 274.72 | 0.6874 | -1071.8 | 999999 | |
| 2.06 | -10.00 | 1.40 | -10.00 | 6.75 | 343.44 | 43.39 | 272.34 | 0.6850 | 220.1 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.39 | 6.59 | 343.13 | 43.08 | 272.08 | 0.6812 | 524.0 | 363.8 | |
| 0.00 | 0.54 | 0.00 | 0.36 | 6.26 | 343.10 | 43.04 | 271.59 | 0.6810 | 454.0 | 434.8 | |
| 0.00 | 1.53 | 0.00 | 1.03 | 6.93 | 343.13 | 43.07 | 272.57 | 0.6809 | -415.0 | -453.5 | |
| 10.77 | -10.00 | 7.19 | -10.00 | 7.23 | 342.45 | 42.40 | 272.97 | 0.6721 | 0.3 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.42 | 8.60 | 342.38 | 42.32 | 275.03 | 0.6706 | -251.0 | -233.4 | |
| 0.00 | 5.12 | 0.00 | 3.40 | 11.18 | 342.21 | 42.16 | 278.89 | 0.6687 | 832.0 | 624.4 | |
| 0.45 | 1.53 | 0.30 | 1.01 | 10.29 | 341.97 | 41.92 | 277.55 | 0.6653 | -548.6 | -438.1 | |
| 4.67 | 9.96 | 3.07 | 6.55 | 8.55 | 341.63 | 41.57 | 274.92 | 0.6609 | -773.2 | -544.4 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 7.80 | 341.37 | 41.31 | 273.78 | 0.6578 | -268.0 | -204.2 | |
| 0.00 | 1.17 | 0.00 | 0.77 | 9.51 | 341.40 | 41.34 | 276.38 | 0.6578 | 574.0 | 479.5 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 8.72 | 341.04 | 40.98 | 275.16 | 0.6532 | 536.0 | 435.1 | |
| 0.00 | 0.99 | 0.00 | 0.65 | 9.59 | 341.16 | 41.11 | 276.50 | 0.6547 | 561.0 | 497.2 | |
| 0.00 | 0.63 | 0.00 | 0.41 | 11.25 | 341.39 | 41.34 | 279.04 | 0.6582 | 726.0 | 617.9 | |
| 0.00 | 1.17 | 0.00 | 0.76 | 7.91 | 340.85 | 40.80 | 273.91 | 0.6510 | 672.0 | 560.2 | |
| 0.00 | 1.71 | 0.00 | 1.11 | 8.12 | 340.84 | 40.78 | 274.24 | 0.6507 | 700.0 | 549.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
